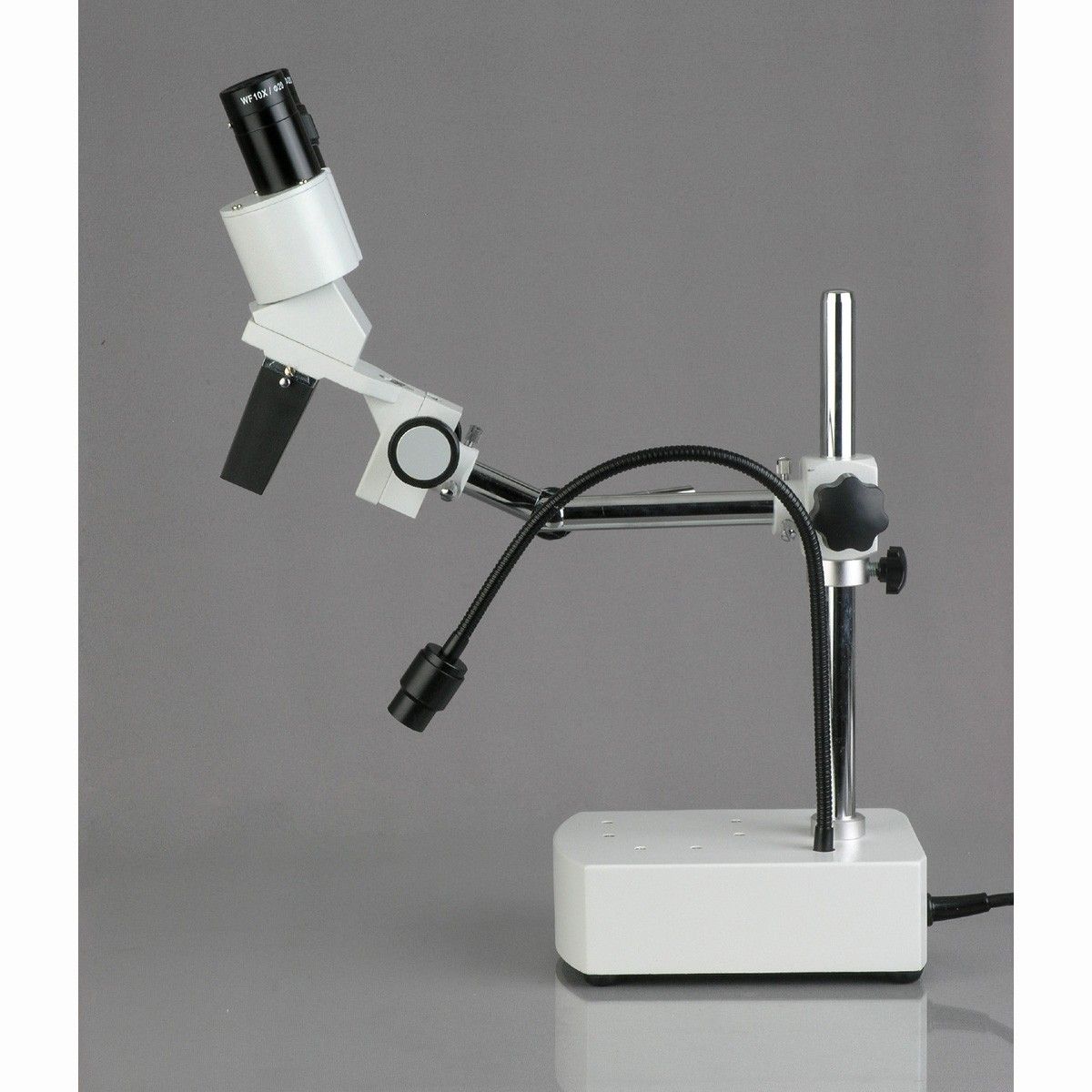

Product Specifications
| Prod Model: |
C-2D LED |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainlad) |
| Brand Name: |
Huaguang |
| Model Number: |
C-2D LED |
| Drawtube: |
Binocular |
| Interpupillary Distance: |
55-75mm |
| Illumination: |
LED |
| Diopter: |
5dp |
| Voltage: |
100V-240V |
| Color: |
White |
| Magnification: |
<50X |
| Type: |
Stereomicroscope |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Shape: |
Rectangular Prism |
| Principle: |
Optics |
Product Description
30 years history microscope manufacture experience
15000M² +workshop
500+workers
CE GS ISO quality and safety certification
Export to more than 30 countriesPackaging & Delivery
| Packaging Details: | Styrofoam box and outer carton. 1 set/ carton. |
|---|
| Delivery Detail: | 10 days |
|---|
Technical Performance:
1. Sharp stereo image over a wide field view
2. The left ocular-tube with diopter adjustment + 5dp or -5dp. The interpupillary distance is between 55-75mm
3. Dovetail inserted style objestive with locked-in device ensures easy replacement
4. Power supply 110V/60Hz or 220V/50Hz with attached illumination AC 12V/10W or DC 6V/6W or 3W LED
Optional accessories:
1. Eyepiece WF5X(220mm), WF10X(20mm), WF15X(15mm), WF20X(10mm)
2. Objective 0.5X(250mm) 1X(230mm)
3. Incandscent bulb 12V/10W
| Objective Magnification | EYEPIECES | Working Distance |
| 5X | 10X | 15X | 20X |
| Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | Magnification | Field of View |
| 0.5X | 2.5X | 40.0mm | 5X | 40.0mm | 7.5X | 30.0mm | 10X | 20.0mm | 250mm |
| 1X | 5X | 20.0mm | 10X | 20.0mm | 15X | 15mm | 20X | 10.0mm | 230mm |
Ningbo Huaguang Precision Instrument Co., Ltd. is a professional science and technology manufacturing company located in the coastal city of Ningbo, PR China.
After more than 20 years' business development, our company now has become a specialized manufacturer of optics, mechanics and electronics.
We mainly produce XTX series stereo microscopes, ZTX series medium-sized stereo microscopes, SX series student microscopes, NK series biological microscopes etc.
With the acknowledgement of CE qualification as well as the requirements of RoHS instructions, our products have so far been exported to more than 20 countries and regions such as the USA, Brazil, Holland, Germany and Japan.
In 2002, our company cooperated with Shanghai Jiaotong University to develop nanometer photocatalysis air purifier, which passed new products appraisal of Ningbo Technical Supervision Bureau in October 2002 and now has put into batch production.
Our company has been listed as a Hi-tech Enterprise, passed ISO9002: 1994 in 1999 and transited to ISO9001: 2000 in 2002.
