Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Material Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC110V |
Product Description

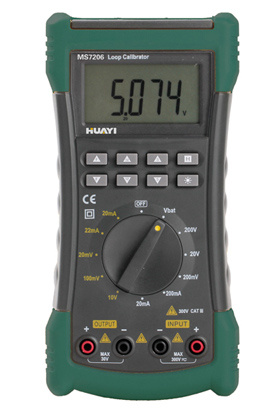

Loop Calibrator MS7206
Functions and features
1 LCD display with font height 22mm.
2 Over range displays "1".
3 Power output 24V DC, which can serve as the working power of 2-wire instrument.
4 0-10V, 0-20mV, 0-100mV, 0-20mA and 0-22mA DC signal output scales are available, which can serve as the input and output signal of type II and type IIIinstruments and can simulate various of type II and type IIIinstruments in field verification.
5 200V, 20V, 200mV, 100mA and 20mA DC signal measuring scales are available, which can be used to measure the working voltage of the instrument and the input/output voltage signal and current signal of the instrument.
6 The instrument can working under condition of 24Vpower, output DC signal and measuring function simultaneously.
7 The instrument has quadruple half digits LCD display, with the rotary switch, it can display the output value, measured value and unit
Specifications
Current Measurement
Range:
0 to 22 mA
Resolution:
0.001 mA
Accuracy:
0.05% Rdg + 4LSD
Current Sourcing
Range:
0 to 20 mA
Accuracy:
0.05% Rdg + 4 LSD
Drive Capability:
1200 Ω; 950 Ω at 20 mA
Voltage measurement
Range:
0 to 200 mV DC
Resolution:
0.1 mV
Accuracy:
0.05% Rdg + 4 LSD
Voltage Sourcing
Range:
0 to 10 V DC
Resolution:
1 mV
Accuracy:
0.05% Rdg +4 LSD
Accesories
Tester leads (red and black)
Bending test plug wire clip (red and black)
English Instruction Manual
Metal Carry case
9V alkaline battery
Shenzhen HuaYi Instrument Technology Co., Ltd. Has been engaged in the development and manufacture of testing and measurement instruments since 2005.
Located in Chinese main electrical city - Shenzhen of Guangdong Province, we have specialized teams responsible for production, marketing and R&D. Apart from our own products, we also provide OEM services and accept customized orders as well. We have already developed designs for many famous companies all over the world.
Shenzhen HuaYi Instrument Technology Co., Ltd. is a professional supplier of process calibrators, infrared thermometers, digital multimeters, digital clamp meters, power clamp meters, earth resistance testers, insulation testers, environmental meters, electrical testers, net cable testers and so on.
Our products have been exported to many countries and regions all over the world, especially Europe, North America, South America and South Asia. Our products enjoy a good reputation among our customers.
Currently, we are looking forward to even greater cooperation with oversea customers based on mutual benefits. If you are interested in any of our products, please do not hesitate to contact us.
