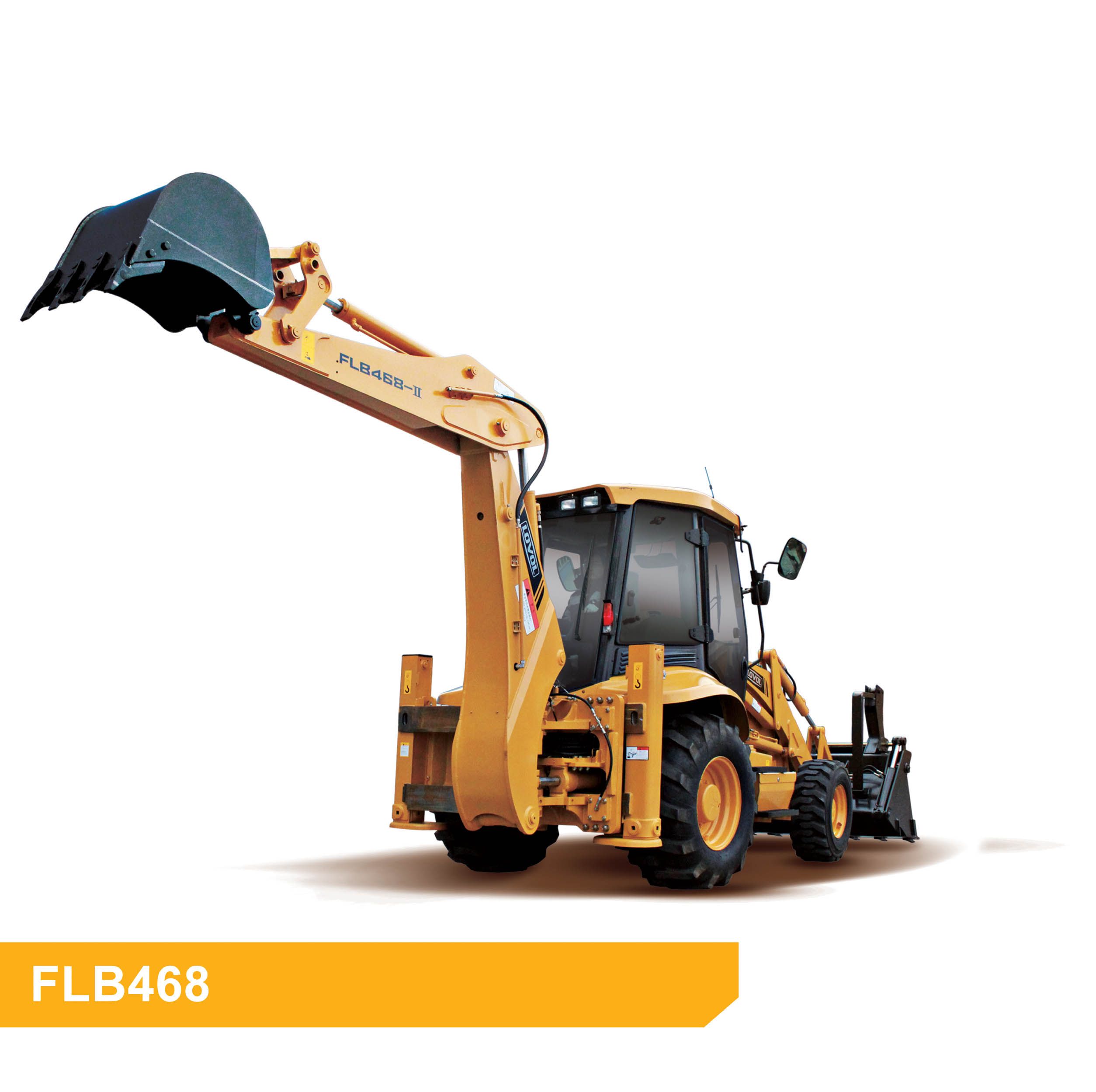

Lovol Backhoe Loader FLB468-II (A type / Center pivot)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
FLB468-II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO9001: 2000 |
Product Description
Backhoe loaders is belongs to the small multi-function engineering machine type. This machinery is generally used in the ending working after the completion of the public works. Its front side is for loading and back side is for mining. This product is mainly used for the following working conditions: urban and rural highway construction and maintenance, cabling, power and airport construction, municipal construction, Irrigation construction, residential construction in rural areas, stone, and other construction projects.
Brazil, Russia, kazakhstan, Algeria, the united Arab emirates, Thailand, South Africa and other countries.

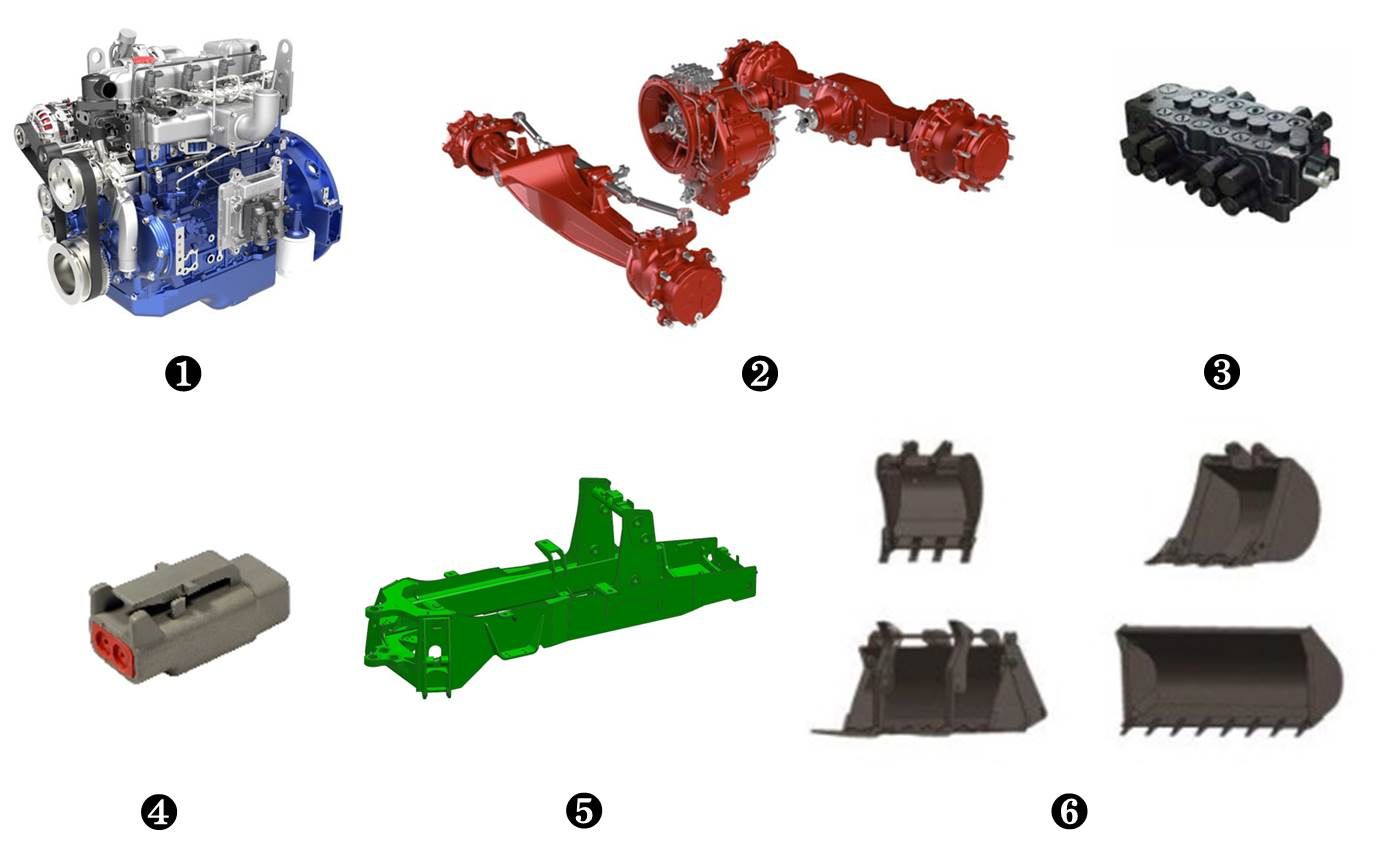

1.Powerful Weichai-DEUTZ WP4G95E221 engine offers a high reliability.
2.Equipped with qualified original CARRARO transmission and axles from Italy. They feature synchronized shifting in all gears, and power shuttle between forward and reverse.
3.HUSCO hydraulic system from American performs excellent. EATON full hydraulic load-sensing steering is advanced in technology and capability.
4.Water-proof plug connector improves reliability of electrics.
5.Center -pivoted outrigger makes digging work efficient and stable.
6.Various optional attachments including General Purpose Bucket, Coal Bucket, Quick Coupling Bucket, Pallet Fork, Log Grabber, Grass Grabber and etc.| Loading | Digging |
| General Purpose Bucket 1.0m³ | Multi-purpose Bucket
1.0m³ | General Purpose Bucket 0.09m³ | General Purpose Bucket 0.18m³ | General Purpose Bucket 0.3m³ | Hammer |
Product parameters:| Main Specifications |
| FLB468-II(LOVOL) | FLB468-II(Weichai) | FLB468-II(DCEC) |
| (1)Type |
| Center pivot | Center pivot | Center pivot |
| ((2)Transport dimensions(L×W×H) |
|
|
| |
| Transport dimensions | mm | 7200×2320×3500 | 5900×2320×3500 | 7200×2320×3500 |
| (3)Operating weight |
|
| | |
| Four wheel drive | kg | 8300 | 8680 | 8100 |
| (4)Max. traction |
| 74 | 74 | 74 |
| (5)Speed |
|
| | |
| Forward 1/2/3/4 | km/h | 5.8/10.0/20.1/36 | 5.8/10.0/20.0/37 | 5.8/10.0/20.0/37 |
| Reverse 1/2/3/4 | km/h | 5.8/10.0/20.1/36 | 5.8/10.0/20.0/37 | 5.8/10.0/20.0/37 |
| (6)Min. turning radius |
|
| | |
| Outside of front wheel | mm | 3950 | 3950 | 3950 |
| (7)Loading specifications |
|
| | |
| Bucket capacity | m3 | 1 | 1 | 1 |
| Max. breakout force | KN | 41 | 41 | 41 |
| Max. dump height | mm | 2660 | 2660 | 2660 |
| Max. dump reach | mm | 780 | 780 | 780 |
| Total cycle time | s | ≤8.8 | ≤8.8 | ≤8.8 |
| (8)Digging specifications |
|
|
| |
| Bucket capacity | m3 | 0.3 | 0.18 | 0.3 |
| Max. digging force | KN | 53.3 | 54 | 54 |
| Max. digging depth | mm | 4445 | 4345 | 4445 |
| Max. digging distance | mm | 5470 | 5385 | 5470 |
| Max. dump height | mm | 3370 | 3545 | 3370 |
| Engine |
| | | |
| Model | / | Lovol engine 1004C-P4T | Weichai-DEUTZ WP4G95E221 | DCEC 4BTAA3.9-C100 |
| Type | / | Four cylinder inline, direct injection, water cooled | Four cylinder inline, direct injection, Turbo charged , water cooled | Four cylinder in line, direct injection, Turbo charged ,water and air intercooled |
| Horse Power | kw | 69 kW/2200rpm/(70 kW/2200rpm) | 70 kW/2200rpm | 74 kW/2200rpm |
| Max. torque | N·m | ≥370N·m/1400-1600r/min/(392N·m/1400r/min) | 380N·m/1400-1600r/min | 400N·m/1400-1600r/min |
| Bore×stroke | mm | 100×127 | 105×130 | 102×120 |
| Displacement | L | 3.99 | 4.5 | 3.9 |
| Fuel consumption | g / kw·h | 220 | 218 | 240 |
| Transmission | |
| | |
| Model | / | CARRARO | CARRARO | CARRARO |
| Driving axle |
| | |
|
| Front axle | / | CARRARO | CARRARO | CARRARO |
| Rear axle | / | CARRARO | CARRARO | CARRARO |
| Braking | |
| | |
| | All machines are fitted with servo assisted brakes as standard for low effort braking. |
| | Automatic compensation ensures 'straight' machine brake. |
| Oil tank capacity | |
|
| Fuel tank | L | 130 | 130 | 130 |
| Tire | |
|
| Front tire | / | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR |
| Rear tire | / | 19.5L-24-12PR | 19.5L-24-12PR | 19.5L-24-12PR |
Foton Lovol International Heavy Industry Co., Ltd. (Foton Lovol) is a large-scale industrial equipment manufacturing enterprise primarily engaging in agricultural equipment, construction machinery, vehicles, core components, financial services and other businesses. Founded in 1998, the company now has total assets of 16.1 billion Yuan and 16, 000 employees. In 2014, the sales revenue has reached RMB21.98 billion Yuan and the brand value of FOTON LOVOL is evaluated to be RMB 26.498 billion by the World Brand Lab.
In China, FOTON LOVOL has been identified as the "National Key High-Tech Enterprise", its engineering and technology research institute is identified as the "Nation-Certified Enterprise Technology Center", and moreover, its leading products have been awarded as "Chinese Famous Brands", "Chinese Famous Trademarks" and "Most Competitive Brand".
FOTON LOVOL is the largest agricultural equipment manufacturer in China and it provides information, technology, products and other sets of agricultural mechanization solutions to customers on the basis of world-level leading technology and services.
The sales of combine harvesters have been ranked 1st for 14 consecutive years in the industry, covering a market share of 70% in China. Large and medium tractors have also been leading the industry in market share for 10 consecutive years. At the same time, it's one of the fastest growing brands in construction machinery industry, available provide users with full range of products of loaders, excavators and rotary drilling rigs.
Technology innovation is the soul of enterprise. To keep up with international standards in R&D abilities, Foton Lovol has established the global R&D system with R&D centers in Europe, Japan, Weifang and Tianjin. Foton Lovol has been introducing the quality resources globally in terms of product, technology and personnel and utilizing the strengths of team, system, culture and management to realize value addition and creation in all links of value chain and keep the core technology up with the international standards.
Based on its leading position in China, Foton Lovol is also active in overseas markets. By now, it has established the business network covering agricultural equipment, construction machinery, vehicle and engine exported to more than 120 countries and regions including Europe, America, Asia Pacific, CIS, Africa and so on with 380 first-class distributors. The export of tractors has been the 1st for ten consecutive years in the field.
Looking into the future, Foton Lovol will focus on China market and keep its leading position. Foton Lovol will transform from a regional company into a global enterprise by building up China as the center of global off-road industry and it is also dedicated to become a machinery and equipment brand known in the world and famous in China.
