Lovol Crawler, 2.0m Cutting Width, 88HP RG40 Rice Combine Harvester
Product Specifications
| Prod Model: |
RG40 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Horizontal Cut Harvester |
| Application: |
Soybean |
| Power Source: |
Diesel |
| Application Field: |
Agriculture |
| Portable Harvester Type: |
Self-Propelled |
Product Description

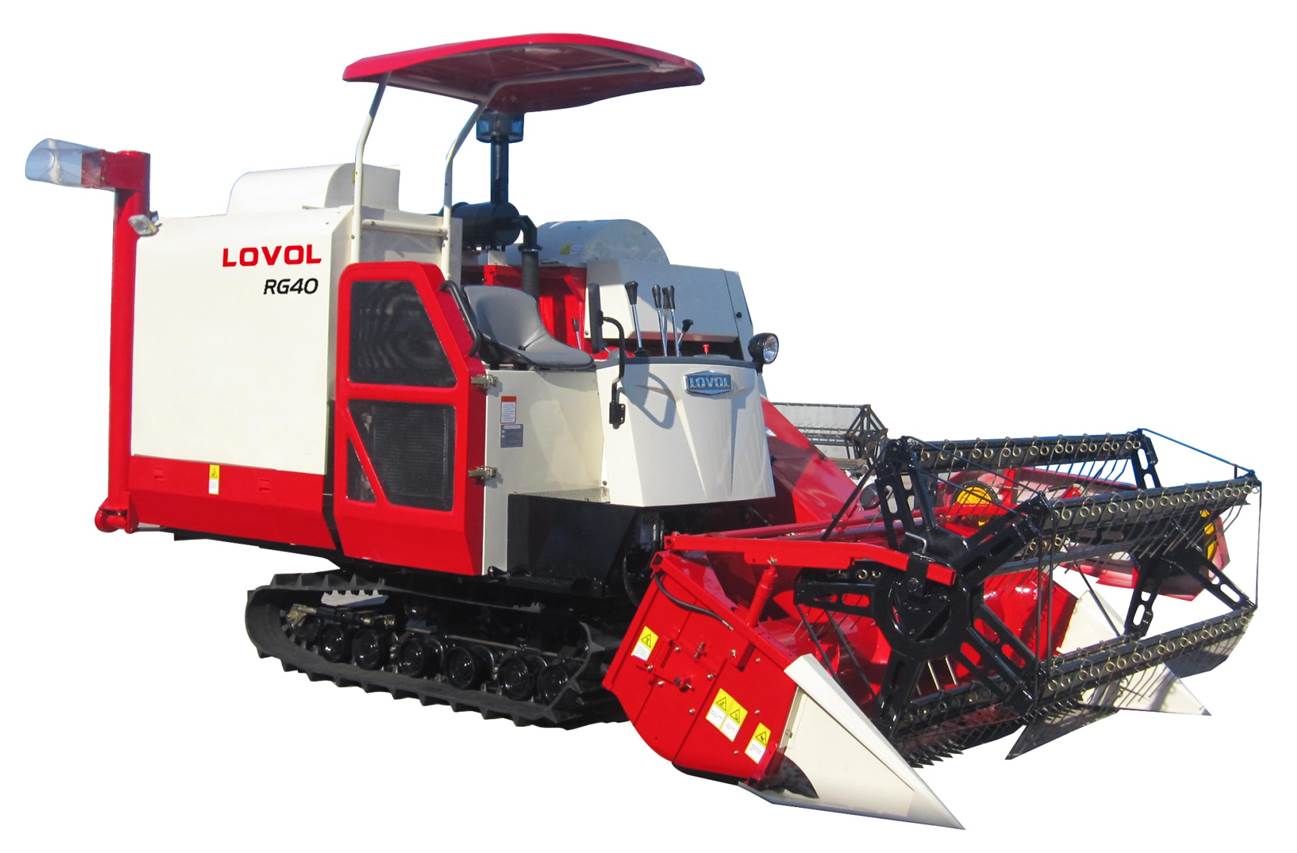

Lovol Rice Combine Harvester, RG40, Crawler, 2.0m Cutting Width, 88HP
RG40 is a universal combined harvester applicable for all the landforms and with such advantages as high operating efficiency, complete cleaning, good anti-bogging performance, excellent lodging effect and multi-purpose function.
Operating condition: paddy field and dry farmland; it can be hooked with the oilseed or corn header.
Applicable region: Asia Pacific, Europe and America, Latin America, Africa and other regions.
Selling Points
High operating efficiency
1. The operating speed of RG40 is fastener than other vehicles of same kind by more than 10-15%, especially on the large field.
2. The Lovol Gushen RG40 rice harvester is equipped with the Deutz engine with leading technology in Europe or the optimized and upgraded Quanchai engine. It is featured by strong power, large power margin, low fuel consumption and small vibration.
3.RG40 is equipped with 65 gearbox so its operating and running speed is faster than the competitive products by 10%.
4.The length of drum of RG40 is up to 1954mm, longer than other products of same kind by 10%. RG40 has the strong threshing and separating capacity and its threshing efficiency is highest among the vehicles of same kind.
Complete cleaning
1.RG40 has been verified by the harvesting of rice, wheat, oilseed and other crops in different regions that it has the good adaptability and can ensure the complete cleaning.
2.The angle of upper sieve can be adjusted from 0° to 90°, ensuring the uniform material distribution and the good cleaning effect.
3.The threshing concave grid plate is heightened, avoiding the hard piling of japonica rice.
Strong adaptability
1.The vehicle has the strong anti-bogging performance, good lodging effect and multi-purpose function
2.The ground clearance is increase and the muffler is heightened, ensuring the better passing performance.
3.The header is extended and the feeding auger speed is quickened, guaranteeing the good harvesting of laid crops.
4. The different headers can be installed to harvest the wheat, soybean, oilseed and other crops.
| Technical platform | Single longitudinal axial flow |
| Product series | RG series |
| DV01 | DV02 |
| Product model | 4LZ-4G1 | 4LZ-4G1 |
| Sale identification code | RG40 | RG40 |
| Performance parameters | Vehicle dimension | Length (mm) | 5000 | 5000 |
| Width (mm) | 2350 | 2610 |
| Height(mm) | 2800 | 2800 |
| Feeding speed (kg/s) | 4.0 | 4.0 |
| Gross weight (kg) | 2950 | 2990 |
| Dynamic parameters | Engine manufacturer and specification | Emission standard (number of cylinders) | China State II/I (4 cylinders) |
| Configuration 1 | Quanchai 4C6-88M22 (65kW/2400r/min) |
| Configuration 2 | Dachai CA498Z
(65kW/2400r/min) |
| Configuration 3 | Xinchai A498Z
(65kW/2400r/min) |
| Capacity of fuel tank, L | 95 |
| Header parameters | Cutting width, mm | Basic equipment | 2000 | 2200 |
| Optional equipment | Oilseed header | Oilseed header |
| Width of intermediate transmission shaft, mm | 550 | 550 |
Auxiliary functions and accessories
(inverted intermediate transmission shaft, dust collection fan) | Inverted intermediate transmission shaft | Inverted intermediate transmission shaft |
| Chassis parameters | Drive axle/ gearbox | Configuration 1 |
|
| Configuration 2 |
|
| Track distance, mm | 1150 | 1150 |
| Crawler width (mm) x pitch (mm) x number of sections | Configuration | 400×90×51
450×90×51 |
| Min. ground clearance | 260 | 260 |
| Drive method of chassis | Configuration | Hydraulic steppless speed change |
| HST model/ displacement | Sauer 32 |
| Optional equipment | Liyuan /KYB37 |
| Steering method | Configuration | 3-speed mechanical | 3-speed mechanical |
| Cleaning and threshing system | Threshing and separating device | Configuration form |
|
| Configuration for wheat and rice |
|
| Configuration for oilseed | Concave plate for oilseed | Concave plate for oilseed |
| Size of drum, mm |
|
| Type of cleaning sieve | Structure of screen box | Double-deck vibrating sieve |
| Configuration 1 | Vibrating sieve+ lower punched sieve |
| Cleaning width, mm | 840 | 840 |
| Grain bin and unloading method | Capacity of grain bin | Configuration 1 | Side mounted 1.1m³ | Side mounted 1.1m³ |
| Configuration 2 | - | - |
| Grain unloading method | Manual pick-up port |
| - |
| Simple unloading drum | - | - |
| hydraulic simple unloading |
|
|
| hydraulic horizontal unloading |
|
|
| hydraulic lifting and rotating unloading |
|
|
| Battery/ voltage |
|
| Optional equipment | Lower cutter |
|
|
| Chopper |
|
|
| Straw breaker | - | - |
| Awning |
|
|
| Ordinary cab |
|
|
| Heated cab |
|
|
| Backup alarm/ grain full alarm |
|
|
|
|
|
| -Optional equipment |
|
Factory Profile and Combine Harvester Production Line
Service and training
Lovol Business Conference and Successful Cases
Foton Lovol International Heavy Industry Co., Ltd. (Foton Lovol) is a large-scale industrial equipment manufacturing enterprise primarily engaging in agricultural equipment, construction machinery, vehicles, core components, financial services and other businesses. Founded in 1998, the company now has total assets of 16.1 billion Yuan and 16, 000 employees. In 2014, the sales revenue has reached RMB21.98 billion Yuan and the brand value of FOTON LOVOL is evaluated to be RMB 26.498 billion by the World Brand Lab.
In China, FOTON LOVOL has been identified as the "National Key High-Tech Enterprise", its engineering and technology research institute is identified as the "Nation-Certified Enterprise Technology Center", and moreover, its leading products have been awarded as "Chinese Famous Brands", "Chinese Famous Trademarks" and "Most Competitive Brand".
FOTON LOVOL is the largest agricultural equipment manufacturer in China and it provides information, technology, products and other sets of agricultural mechanization solutions to customers on the basis of world-level leading technology and services.
The sales of combine harvesters have been ranked 1st for 14 consecutive years in the industry, covering a market share of 70% in China. Large and medium tractors have also been leading the industry in market share for 10 consecutive years. At the same time, it's one of the fastest growing brands in construction machinery industry, available provide users with full range of products of loaders, excavators and rotary drilling rigs.
Technology innovation is the soul of enterprise. To keep up with international standards in R&D abilities, Foton Lovol has established the global R&D system with R&D centers in Europe, Japan, Weifang and Tianjin. Foton Lovol has been introducing the quality resources globally in terms of product, technology and personnel and utilizing the strengths of team, system, culture and management to realize value addition and creation in all links of value chain and keep the core technology up with the international standards.
Based on its leading position in China, Foton Lovol is also active in overseas markets. By now, it has established the business network covering agricultural equipment, construction machinery, vehicle and engine exported to more than 120 countries and regions including Europe, America, Asia Pacific, CIS, Africa and so on with 380 first-class distributors. The export of tractors has been the 1st for ten consecutive years in the field.
Looking into the future, Foton Lovol will focus on China market and keep its leading position. Foton Lovol will transform from a regional company into a global enterprise by building up China as the center of global off-road industry and it is also dedicated to become a machinery and equipment brand known in the world and famous in China.
