Low Consumption Atom N2600 Cpci Motherboard for Military Computers
Price: |
US $ 9999/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Product Name
Low Consumption Atom N2600 CPCI Motherboard for Military ComputerProduct Parameter
Product | ZXB-02H2600-I2 |
CPU | ATOM N2600 |
Chipset | INTEL NM10 |
Inside e Network card | 4×GE 82574IT |
CPU power | Compatible with IMVP 7, 1 phase core electric collocation of 1 phase GFX power |
Clock | Compatible CK505 |
Memory | On-board 8 pieces DDR3 SDRAM(2Gb) memory, supporting 800MHz DDR III (maximum support: 2GB) |
Interface | 4 USB2.0 interfaces connect to CPCI connector 1 serial port(RS232) connect to CPCI connector 1serial port(RS232) on-board connector 4 Gigabit Ethernet port connect to CPCI connector 1 VGA video interface connect to CPCI connector 1 VGA video interface connect to the top of single plate of VGA 1 LVDS video interface connect to CPCI connector 1 PS2 keyboard interface connect to CPCI connector 1 PS2 mouse interface connect to CPCI connector |
VGA/LVDS | CPU integrated graphics output VGA signal, using the Novatek NT68660 from the VGA to LVDS |
Super IO | W83627-DHG-PT: 2 serial ports 1 PS2 keyboard interface 1 PS2 mouse interface The 0~255 level of watchdog timer 9 Voltage monitors 3 temperature monitors |
Storage | 1 SATAII SSD hard disk interface |
Battery | Using CR2477NSM button battery of RENATA 950mAh,it's fixed on the battery board alone to facilitate replacement; |
BIOS | 16Mb SPI AMI BIOS |
Dimension | 250mm x138.5mm |
Environment | Operation temperature: -35ºC~65ºC Storage temperature: -45ºC ~80ºC Relative humidity: 5% to 90% |

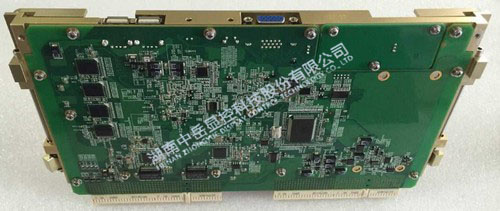

Product Picture
Prod Model: |
ZXB-02H2600-I2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Integrated Graphics: |
Integrated Graphics |
Main Chipset: |
Intel |
Memory: |
DDR3 |
SATA Interface: |
SATA2.0 |
Printed Circuit Board: |
Six Layer |
Main Board Structure: |
Integrated |
Maximum Memory Capacity: |
2GB |
Structure: |
Cpci |
CPU Socket: |
on-Board |
