Low Consumption Spiral Sand Washing Machine for Ore
Product Specifications
| Prod Model: |
LXS series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spiral Diameter: |
508-1500mm |
| Rotate Speed: |
13-38 R/M |
| Input Size: |
<10mm |
| Technology: |
Advanced |
| Installation: |
Engineers Guided |
| After-Sale Service: |
We Offer |
| Capacity: |
20-300 Tph |
| Type: |
Crushing Equipment |
Product Description

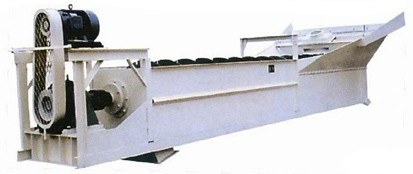

Spiral Sand Washing Machine
LXS series spiral sand washing machine is applicable to sand washing, sand classification and dehydration the construction site, sand factory, glass factory, hydropower station, high-speed railway and highway for. It is also applies to ore dressing plant for the ore classification after ore grinding. XLS series have the advantages of low power consumption and high neatness.
Working principle of Spiral stone washing machine:
The material pours in the from the end of input, the spiral impeller rotates by the driven of the motor and the reducer, and then push the material inside the hopper close to the end of output. Thus, under the action of being advanced, mixed and the flushing water, the mud wrapped on the material and the impurity go separately. Finally, the separated fine sands are discharged from the discharging port under the advancing movement of the spiral. Thus, the continuous work of washing sand is finished again and again. Promptly carries off the impurity and the small proportion foreign matters, and discharge from the overflow port tank washer, completes the cleaning action. The clean sand and crushed stone is carried off by the leaf blade, and ids finally poured into the discharge chute from the revolving impeller, completes the cleaning action.
|
Model |
Spiral Dia. (mm) |
Rotate Speed
(r/min) |
input Size
(mm) |
Water Consumption
(T/h) |
Capacity
(T/h) |
Power (Kw) |
Weight (Kg) |
|
LXS -508 |
Φ508 |
38 |
≤10 |
6-40 |
20-30 |
5.5 |
2670 |
|
LXS -610 |
Φ610 |
32 |
≤10 |
6-50 |
30-40 |
7.5 |
3800 |
|
LXS -762 |
Φ762 |
26 |
≤10 |
9-63 |
75 |
11 |
4020 |
|
LXS -914 |
Φ914 |
20 |
≤10 |
10-80 |
100 |
11 |
6500 |
|
LXS-1118 |
Φ1118 |
18 |
≤10 |
27-168 |
175 |
15 |
8690 |
|
LXS -1500 |
Φ1500 |
13 |
≤10 |
27-180 |
220 |
18.5 |
16580 |
|
2LXS -762 |
Φ762 |
26 |
≤10 |
136-182 |
145 |
11×2 |
8140 |
|
2LXS -914 |
Φ914 |
21 |
≤10 |
120-150 |
200 |
11×2 |
13500 |
|
2LXS-1118 |
Φ1118 |
17 |
≤10 |
200-250 |
300 |
15×2 |
19800 |
Gongyi Hengchang Metallurgical Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, Briquette equipments, coal preparation equipments, ball press equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer, gas industry etc.
In the last two decades, we always persist on the philosophy of "scientific and technological innovation, quality first, users first", and cooperated with a number of research institutes to form collaborative units, like Anshan Iron and Steel Research Institute, Nanning of Guangxi Nonferrous Metals Design and Research Institute, Henan Polytechnic University, invite and employ many senior engineers specialized in different fields to the factory for technical designing and supporting.
Science and technology as guide, constantly develop new products, improve product quality and perfect after-sales service, our plant successfully applied ISO9001: 2008 quality certificate and manage to design 10 to 5, 000 t/d mineral beneficiation equipment series production lines, 5 to 500, 000 t/d industrial briquette production line, our floatation machine is successfully applied to Zhong Ping Energy Chemical Group; Ball press series machine can briquette minerals powder, coal powder, plaster powder and other materials into a balls/ briquettes, which can be directly applied to the applications and smelting.
Our plant have been awarded "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, top 30 of key enterprises of the Gongyi government and bureau, products are welcomed by more than 20 provinces, municipalities and autonomous regions in China, and exported to South America, South Asia, Africa and other regions, products quality, technical supporting and after sale service are highly praised by users both home and abroad.
We welcome friends all over the world to visit our plant, persist on the mutual benefits and developments!
