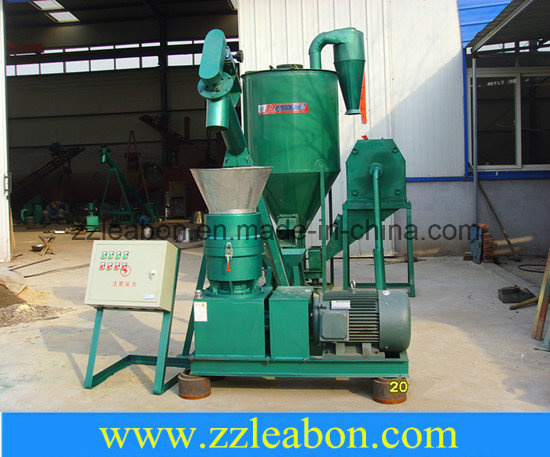

300-500kg/h Low Cost Animal Feed Production Line
Details of Feed Pellet Plant:
| No | Machine Name | Power (Kw) | Dimension (M) | Weight (Kg) |
| 1 | Feed crusher | 7.5 | 1.4*0.7*1.5 | 320 |
| 2 | Cyclone | 0.75 | 1.8*0.7*0.8 | 90 |
| 3 | Feed mixer | 2.2 | 2.8*1.2*1.4 | 140 |
| 4 | Screw conveyor | 1.5 | 2.5*0.5*0.5 | 120 |
| 5 | Pellet machine | 15 | 1.2*0.5*1.07 | 380 |
Introductions of the main machines:
------- Feed crusher:
9FQ System Feed crusher is the most ideal milling equipment of all kinds of straw, grass, stalk, corn
Stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell,all kinds of grains,straws and etc
------ Features:
1. This kind of feed crusher is widely used in swine farm, feed factory, etc.
2. It is equipped with high carbon steel blade.
3. The raw materials can be crushed into straw particles, whose diameter is 3-5mm.
4. Even crushing function of multi-cavities which is suitable to crush hard materials.
5. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
6. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
7. New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.
------- Feed mixer :
1). Vertical mixer it is made from iron material.
2) It can mix difference material like foodstuff and other material.
3) Uses the novel umbrella type decompress machinery and dial sword system, avoid the materials stagnation or run unevenly, thus raise the evenness.
4) The top and the bottom axis use the novel dust sealing construction, avoid the phenomenon of bearing damage caused by the dust;
5) fast mixing, low energy expenditure, good evenness, bulletproof, suitable for small-sized feed factories and family-style livestock .
-------- Feed Pellet Machine:
The raw material: grass, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.
The main spare part: Flat Die and Roller
The moisture of raw material: Between 12-20%
The size of raw materials:Less than 5mm
Pellet moisture:10%
Pellet diameter:2.5-12mm
Pellet length:Adjustable
------- Pellet cooler:
After cooling pellets temperature don't exceed room temperature +3-+5 Degree.
Shutdown automatic nesting with the unique effect, to avoid cross-contamination between feed.
Unique nesting box nesting force.
SEFW series with the secondary spiral separator used in combination.
Suitable for cooling a variety of pellets material.
