Infrared IC Heater T962/Infrared reflow oven T-962/SMD Reflow Oven Puhui T-962
Description:

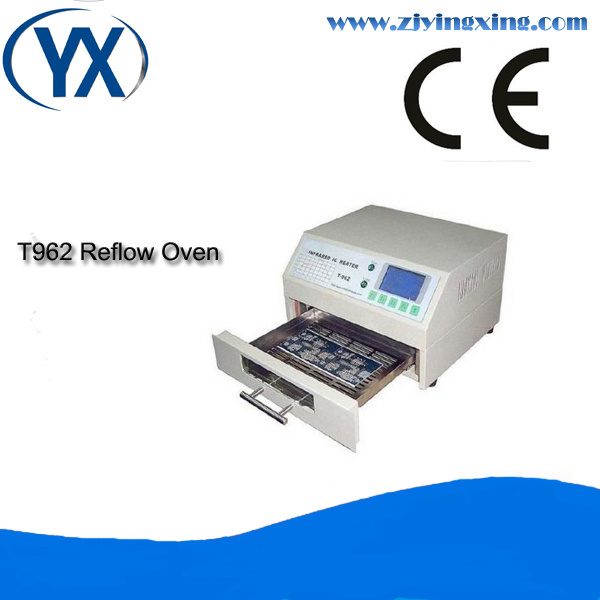

Infrared reflow oven T962 is a micro-processor controlled reflow oven. The device is powered by standard 110VAC 50/60HZ (220VAC Model is available). User interface is implemented by way of T962 input keys and an LCD display. Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.
This self-contained reflow station allows safe soldering techniques and the manipulation of SMDBAG and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically re-flow solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.
Ø The T962 is a self-contained Micro-Processor controlled IC Heater and solder rework station.
Ø Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180×235mm area.
Ø Parameters of Eight (8) Soldering cycles are Pre-Defined
Ø Soldering cycles are keypad selected and progress displayed on the T962 LCD.
Ø A single windowed drawer holds assemblies within the heating chamber,
Ø The T962 design is ergonomic, practical and easily operated.
Ø The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
Ø The T962 design is ergonomic, practical and easily operated.
Ø The T962 is an economical rework solution from single runs to on-demand small batch production.
Ø Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
Ø The T962 can solder most bosseyed or double-face PCB boards small parts, ie.: CHIPSOPPLCCQFPBGA etc; Can be used to the gum of the product solid, turning the circuit board hot aging, maintaining the PCB board and so on. Be satisfied to the needs of academe, smallorder run and extensively development of enterprise & companyTechnical Parameter:
| Supply Voltage | AC110V/ 50Hz AC220V /52Hz |
| Putout Power | 800W |
| Maximum Soldering Area | 180×235 mm |
| Temperature Range | 100-350 |
| Cycle Time | 18 min |
Parts Inventory
| Description | Quantity | Illustration |
| T962 Main Assembly | 1 | |
Power Cable 110VAC or 200VAC | 1 | |
5mm Fuse, 10A 250VAC Fast Blow (Spare) | 1 | |
| This Manual on CD | 1 | |
T962 Initial Set-Up and adjustments
1. Place the T962 on an appropriate level, insulated work area.
2. Make Sure the work space is well ventilated (exhaust fans may be necessary),
3. Allow at least 20mm between the T962 and its surroundings for heat protection.
4. Confirm the Work drawer opens and closes smoothly and without obstruction
5. Locate supplied universal power cord and connect same from rear apron to AC power.
6. Locate and press the power on button, the LCD will light, the T962 will log on,.
Press s button, the main menu will appear on LCD.
Press F4 to Select English Menu
In the main menu
Press F3 button selection different temperature wave. Example select wave1
Press F3 button again, can see parameter about you choose the temperature wave:
Select: soldering paste sort, soldering temperature, time etc. example:
When selections are complete, then Press F4 button to return previous page. Press the temperature wave that theF1 key carries out to make selection automatically.
When it is ending, the work will shut down automatically, and the warning buzzer is working.
In the main menu page, press F2button by handcraft operation
Press F1 button to start cooling, Press F1/S key again to stop. Press F2 button to start heat up, Press F2/S key again to stop.
