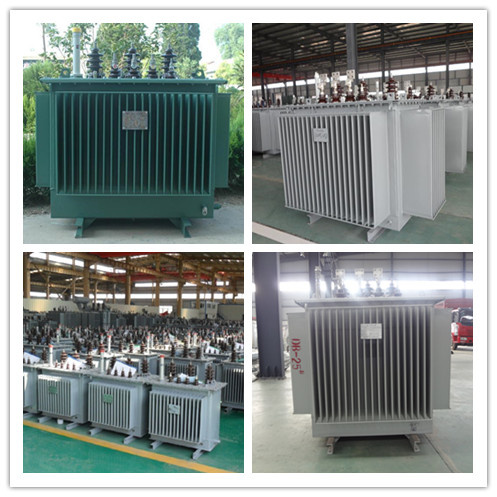

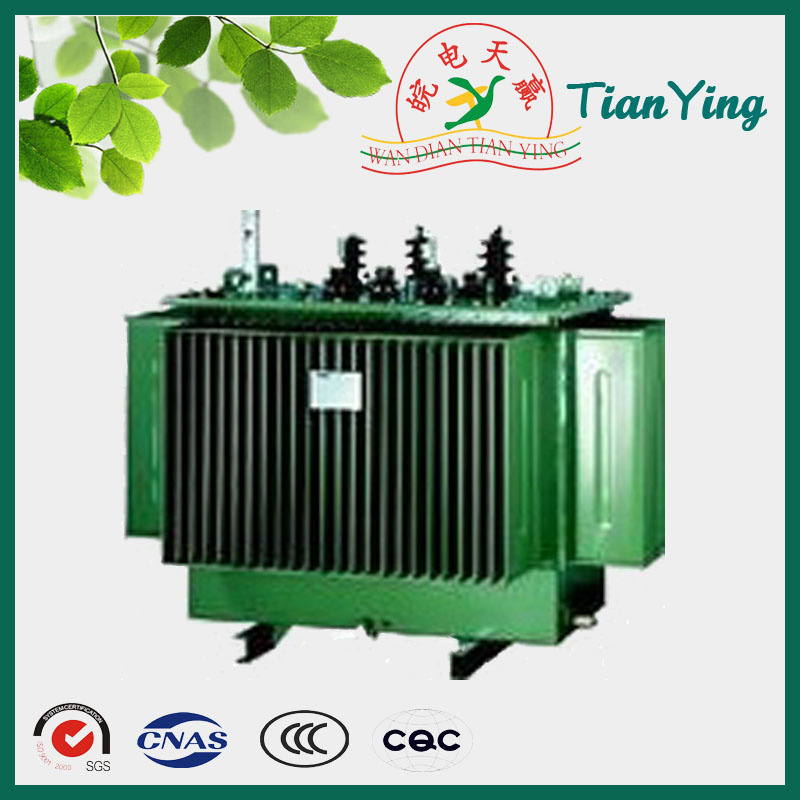

Low Noise High Quality 6.6kv 10kv Full-Sealed Oil Cooled Distribution Transformer

Name: Low Noise High Quality 6.6kv 10kv Full-Sealed Oil Cooled Distribution Transformer
Brand: china-manufacturer-directory.com
SKU: 755630205
Availability: InStock
Rating: 4.6 (112 reviews)

Supplier:	Anhui Tianying Electrical Equipment Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Application:	Rectifier
Coil:	Core-type Transformer
Winding Type:	Multi-winding Transformer
Cooling Method:	Oil-immersed Type Transformer
Brand:	Tianying

Product Description

Summary

The three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.
Reliable Structure

Spiral loops with longitudinal oil path to produce a better interior cooling effect;
Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability;
New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.

Excellent Materials
Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit.
Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
High-quality rubber sealing material, which can prevent the transformers form aging or leakage.

Transformer Service Condition
Altitude cannot exceed: 1000m
Highest ambient temperature: +40°C
Highest daily average temperature: +30°C
Highest annual average temperature: +20°C
Lowest outdoor temperature: -25°C

Good Technology
Compare with S7 series product, S9 series product reduces the no-load loss by 10%, load loss by 24% and no-load electric current by 46%; as a result, the operating cost will drop by 19%. Improved from S9 series product, S11 series product reduces the no-load loss by 20%; no-load electric current by 70%85%; average temperature by 10K; noise level by 2-4db; and double the products' service life. Even under 20% overloads, it can also work for a long period of time.

Rated power (kV)	High Voltage(kV)	H.V Tap range	Low Voltage (kV)	Connection Symbol	Short- Circuit Impedance (%)	No-load Loss(W)			On-Load Loss(W)			No-load Current (%)


						9Type	10Type	11Type	9Type	10Type	11Type
30	6 6.3 10 10.5	±5%±2×2.5%	0.4	Dyn11 Yyn0	4	130	110	100	600	600	600	2.1
50						170	150	130	870	870	870	2
63						200	180	150	1040	1040	1040	1.9
80						250	200	180	1250	1250	1250	1.8
100						290	230	200	1500	1500	1500	1.6
125						340	270	240	1800	1800	1800	1.5
160						400	310	280	2200	2200	2200	1.4
200						480	380	340	2600	2600	2600	1.2
250						560	460	400	3050	3050	3050	1.2
315						670	540	480	3650	3650	3650	1.1
400						800	650	570	4300	4300	4300	1
500						960	780	680	5150	5150	5150	1
630					4.5	1200	920	810	6200	6200	6200	0.9
800						1400	1120	980	7500	7500	7500	0.8
1000						1700	1320	1150	10300	10300	10300	0.7
1250						1950	1560	1360	12000	12000	12000	0.6
1600						2400	1880	1640	14500	14500	14500	0.6
2000					5	2830	2270	1940	17140	17140	17140	0.6
2500					5	3350	2690	2300	20260	20260	20260	0.5

Rated power(kva)	Weight (kg)			Overall dimension(mm)			Gauge (mm)
	Weight (kg)			Overall dimension(mm)
	Active part	Oil	total	L	W	H
	Active part	Oil	total	L	W	H
30	180	85	310	750	720	930	400×400
50	210	90	420	780	740	950	400×400
63	280	110	520	800	750	1000	400×400
80	310	110	520	820	770	1040	400×400
100	340	120	560	825	790	1020	550×550
125	380	130	670	830	790	1120	550×550
160	480	140	770	1070	670	1085	550×550
200	560	160	890	1140	740	1160	550×550
250	670	180	1070	1210	790	1200	550×550
315	750	230	1230	1380	900	1230	550×550
400	930	250	1450	1380	900	1300	550×550
500	1070	260	1670	1490	1000	1320	550×550
630	1290	320	1960	1570	1030	1390	660×660
800	1590	350	2340	1620	1050	1460	660×660
1000	1740	450	2760	1760	1190	1590	660×660
1250	2080	490	3200	1780	1140	1670	660×660
1600	2530	640	3950	1970	1290	1750	820×820
2000	3000	800	4890	2100	2050	2000	820×820
2500	3300	1180	6280	2330	2210	2150	820×820

Anhui Tianying Electrical Equipment Manufacturing Co., Ltd was established in 2008, and located in NO. 18 Changchun Road Lixin Industrial Park, Anhui Province, China. It covers an area of more than 53360 square meters and is one of the largest professional manufacturers in China.

Since established, and through continuous innovation and development, we have formed a high tech group company with electric power survey and design, set of equipment manufacturing, electrical power distribution equipment installation and commissioning, to provide comprehensive services to the power industry.
