Product Specifications
| Prod Model: |
YJ48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Scope Of Application: |
Wide-Ranging |
| Speed Rated: |
3000rpm |
| Power Rated: |
20W |
| Voltage: |
230V |
| Current: |
0.2A |
| Application: |
Moving Machinery |
| Structure: |
Electromagnetic |
| Certification: |
CE,RoHS |
| Brand: |
OEM |
Product Description

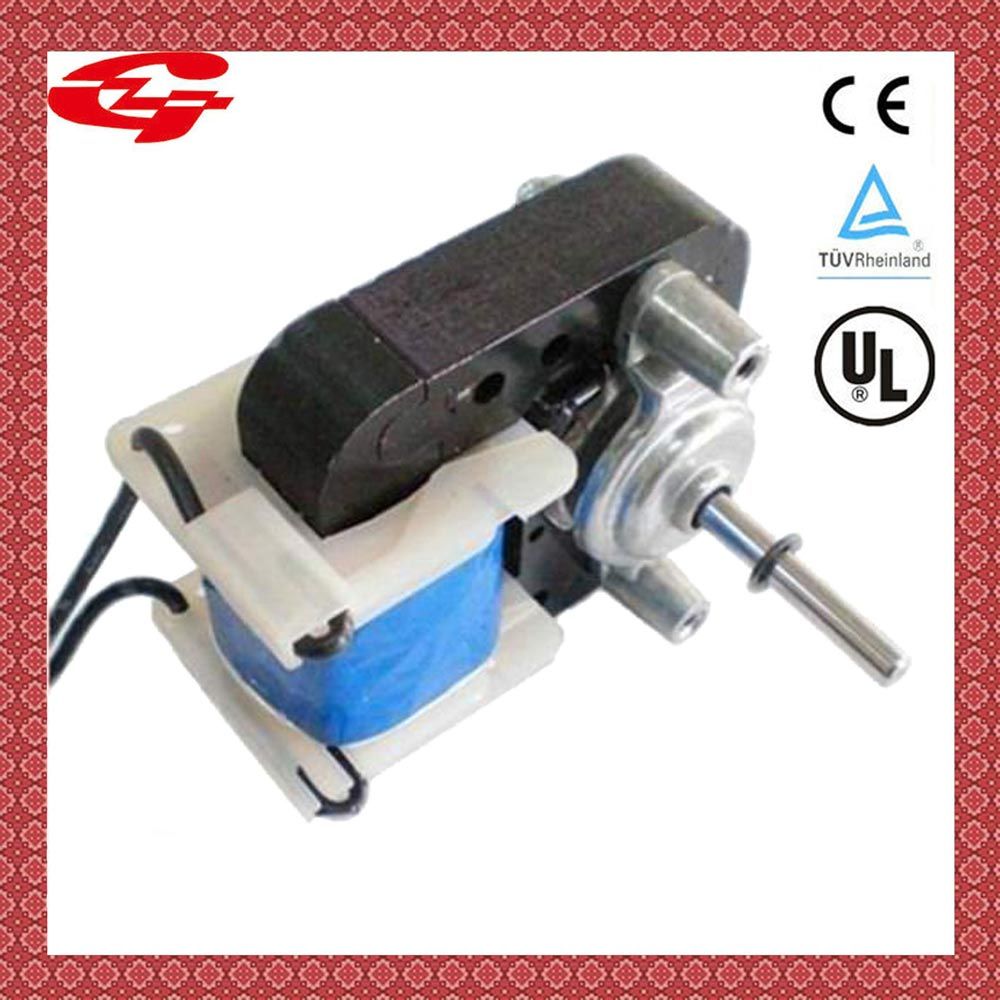

Welling fan motor with UL approval:
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
| MODEL | STATOR SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) | SPEED RATED |
YJ4808B |
8mm |
4mm |
110-240V |
6W |
1.12mN.m |
3400RPM |
YJ4810B |
10mm |
4mm |
110-240V |
10W |
3.42mN.m |
3000RPM |
YJ4810C |
10mm |
5mm |
110-240V |
14W |
3.82mN.m |
3000RPM |
YJ4815B |
15mm |
4mm |
110-240V |
11W |
7.97mN.m |
3400RPM |
