Dalian Teren Industry Instruments Import and Export Co., Ltd. >> Low Power Consumption Ultrasonic Thickness Meter (TM-8811)

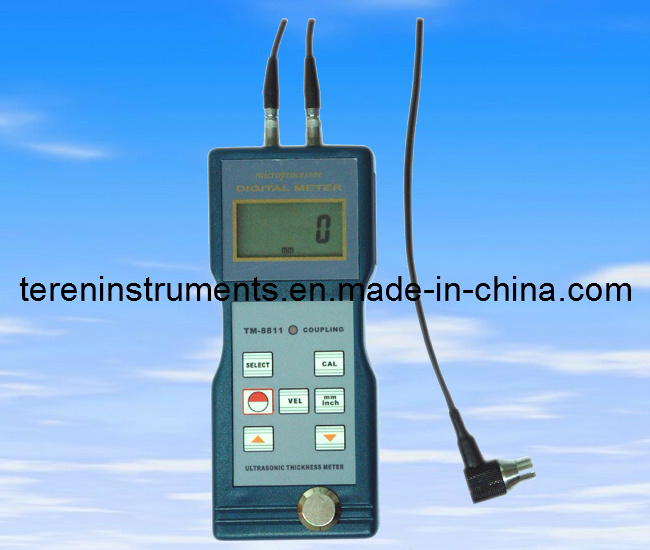

Low Power Consumption Ultrasonic Thickness Meter (TM-8811)

Name: Low Power Consumption Ultrasonic Thickness Meter (TM-8811)
Brand: china-manufacturer-directory.com
SKU: 677963922
Availability: InStock
Rating: 4.8 (112 reviews)

Supplier:	Dalian Teren Industry Instruments Import and Export Co., Ltd.
Price:	US $ 150-240/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TM-8811
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	TM-8811
Usage:	Universal Testing Machine
Accuracy:	±(1%H+0.1)Mm
Resolution:	0.1mm
Measurement Range:	0.65--400mm
Operating Voltage:	3V
Sound Speed Range:	1000~9999 M/S
Operate Time:	280 Hours (Automatic Mode)
Overall Dimension:	1507432 Mm
Weight:	245g

Product Description

Ultrasonic thickness meter
1 high accuracy
2 easily operate
3 low power consumption
4 long servise life
Multifunction ultrasonic thickness meter (TM-8811 TM-8812 TM-8810)

According to the ultrasonic pulse reflection principle, the thickness gauge can make accurate measurement for all sorts of plank and all kinds of machining parts. Also can monitor equipment of pipeline and pressure vessel. Widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.

Feature:

1 fuselage is very light and thin, easy to operation

2 two calibration function, makes the measuring value more accurate

3 unique blue background lights, clear visual under under all kinds of environment

4 low power consumption, can use above 200 hours with two dry cell

5 suitable for measuring all guide acoustic materials, such as steel, iron, plastics, ceramics, organic glass, etc

Item	Standard
Measuring range (metric/imperial)	1.2-225mm, 0.05-9inch
Operating principle	ULTROSONIC
Sound velocity	500-9000m/s
Lower limit steel pipes	15x2.0mm, 20x3.0mm determined by the transducer
Resolution	0.1mm
Accuracy	± (0.5%n+0.1)
RS232C interface	with RS232C
Power supply	4x1.5V AAA (UM-4)battery
Battery indicator	low battery indicator
Operating conditions	0-+45° C(32° F-104° F), ≤ 90%RH
Dimensions	120x62x30mm
Weight	164g(not including battery)
