Product Specifications
| Prod Model: |
Gm45-775 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Gm45+Ich9 |
| Fsb: |
1333/1066/800MHz |
| Size: |
243mm X 180mm |
| Shipping Time: |
2-4 Working Days |
| Shipping Way: |
DHL /UPS / FedEx |
| Origin Of Place: |
Shenzhen ,China |
| Products Logo: |
for Your Optional |
| Main Chipset: |
Intel |
| Structure: |
ATX |
| Memory: |
DDR3 |
| CPU Socket: |
LGA 775 |
Product Description

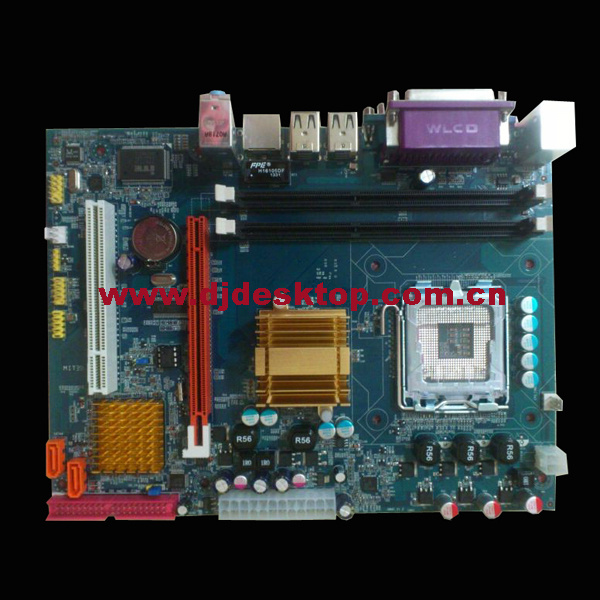

Low price and best quality Gm45-775 Desktop Motherboard with 2*DDR3/2*PCI/3*SATA
CPU |
| LGA775 for Intel Core 2 Extreme quad-core / Core 2 Extreme dual-core / Core 2 Quad / Core 2 Duo / |
| Supports 1333/1066/800MHz FSB |
| Chipset |
| Northbridge: Intel GM45 Chipset |
| Southbridge: Intel+ICH9 |
| Memory |
| Supports 2*DDR3 1333/1066/800 memory |
| Dual Channel architecture support up to 8GB by 2 DIMM slots |
| Graphics |
| Intel Graphics Media Accelerator 4500MHD |
| 1* VGA port |
| Audio |
| Realtek ALC662 6 Channel Audio Codec |
| LAN |
| Realtek 8105E 10/100M LAN Controller |
| Expansion Slot |
| 1 *PCI Express X16 slot |
| 2 *PCI slots |
| I/O Connectors |
| 1 *IDE connector ( option ) |
| 3 *SATA 3Gb/s connector |
| 1* front panel connector |
| 1* front audio connector |
| 4* USB 2.0/1.1 connector |
| 4 *USB 2.0/1.1 port |
| 1* COM port |
| 1* PS/2 port |
| 1* VGA port |
| 1 *RJ-45 port |
| 1 *LPT port |
| 1 *audio jacks |
| Accessories |
| CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE. |
| SIZE |
| 243mm x 180mm |
| PACKING |
| 20PCS IN ONE CARTON |
