Product details
·······························································································································································································

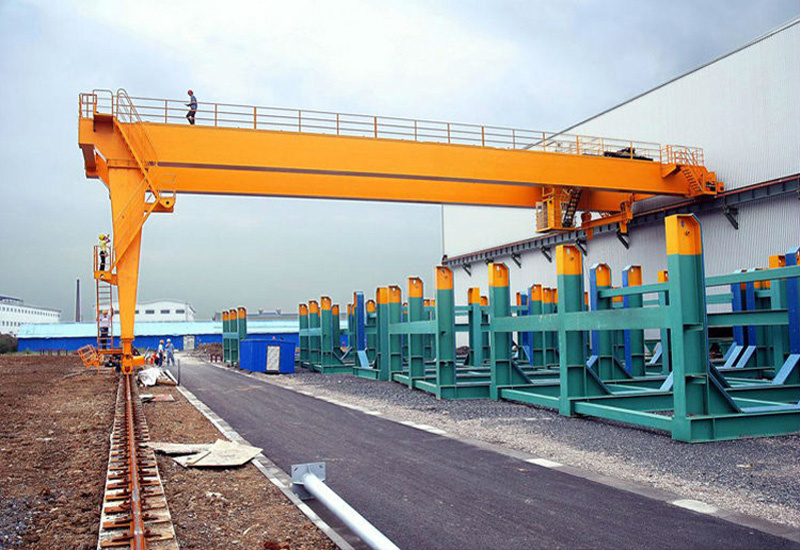

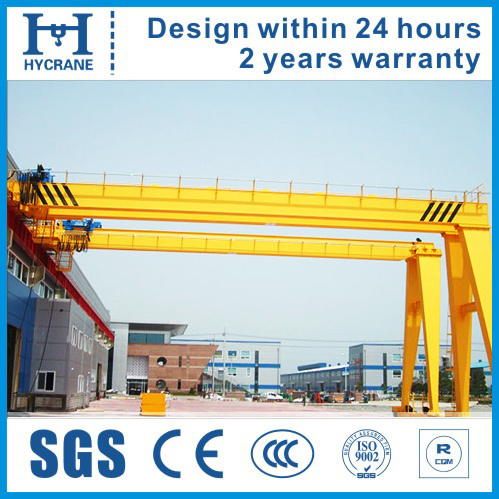

BMH model Semi-Gantry Crane is consisted with gantry frame, main girder, legs (two sets), slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop,
storage, port and hydroelectric power station and some other outdoor place. This type of crane is equipped with has CD1, type and MD1 type hoist and is in medium and
light duty. Lift capacity is from 2 ton to 16 ton and span is from 3 m to 35 m, or on request, the work temperature is within -20°C and +40°C, and has ground control type and operator cabin type.
·······························································································································································································
Description:
- It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting steelwork.
- Lifting capacity: 2-16ton
- Span length: 3-35mtrs
- Lifting height: 6-30mtrs
- Working duty: A3-A5
- Power: AC 3Ph 380V 50Hz or according to client's requirement
- Control mode: Cabin control/remote control/control panel with pendant line
·······························································································································································································Technical parameter:
| Lifting Capacity (t) | 2 | 5 | 10 |
| Span (m) | 10 | 12 | 16 | 20 | 10 | 12 | 16 | 20 | 10 | 12 | 16 | 20 |
| Lifting Height (m) | 6 | 6; 9 | 9 |
| Travelling Mechanism | Travelling Speed (m/min) | Ground | 20 | 20 | 20 |
| Driver Room | 20 30 | 20 30 | 30 40 |
| Motor | Ground | ZY1(D)21-4/0.8×2 | ZY1(D)22-4/1.5×2 | ZDY1(D)21-4/0.8×2 | YZR132M1-6/2.5×2 | YZR132M1-6/2.5×2 | YZR132M2-6/4×2 |
| Driver Room | ZDR100-4(D)1.5×2 | ZDR100-4(D)1.5×2 |
| Reducer | LD Driven Device | LD Driven Device | ZSC400 | ZSC400 | ZSC400 |
| Wheel Diameter (mm) | 270 | 270 | 400 | 400 | 400 |
| Electric Hoist | Type | CD MD | CD MD | CD MD |
| Lifting Speed (m/min) | 8 0.8/8 | 8 0.8/8 | 7 0.7/7 |
| Travelling Speed (m/min) | 20 | 20 | 20 |
| Motor Type | Lifting | ZD1 31-4/3 ZDS1 0.4/3 | ZD1 41-4/7.5 ZDS1 0.8/7.5 | ZD1 51-4/13 ZDS1 1.5/13 |
| Travelling | ZDY1 12-4/0.4 | ZDY1 21-4/0.8 | ZDY1 21-4/0.8×2 |
| Working Class | A5 | A5 | A5 |
| Steel Track Recommended | P24 | P24 | P38 |
| Power Supply | Three-phase AC 380V 50Hz |
Customer visit
·······························································································································································································
- We have a professional sales team,can privede u a quick and professional reply.
- Exclusive engineer support at any time, so we can design within 24 hours.
- 2 year warranty for whole machines, providing all parts free of charge.
- Low charge for continue maintenance when warranty is expired.
- we can produce t he largest tonnage crane,just give us your demand.
- We can provide free training to end-users, don't worry about the installation.
- Products are sold to Europe, North America, South America, Middle East
·······························································································································································································
QC & shipment
·······························································································································································································
FAQ
·······························································································································································································
Thank you for your patience to read our products, our corporation, if you still have other question, can be solved through the following two ways.
·······························································································································································································
Frequently asked questions
1. What's the information should I provide when inquiry?
More details or drawings, more better.
A: Lift capacity B: span C: lift height D: power source
Or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.B: remote control with push buttons
C: cabin(space capsule seat) control with joystick.Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! Can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
