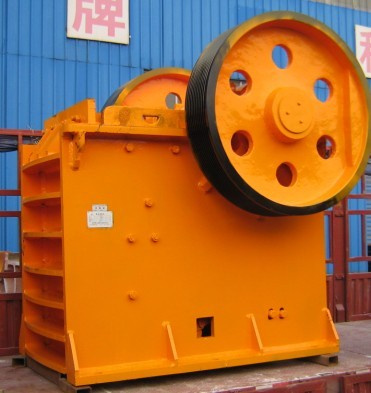

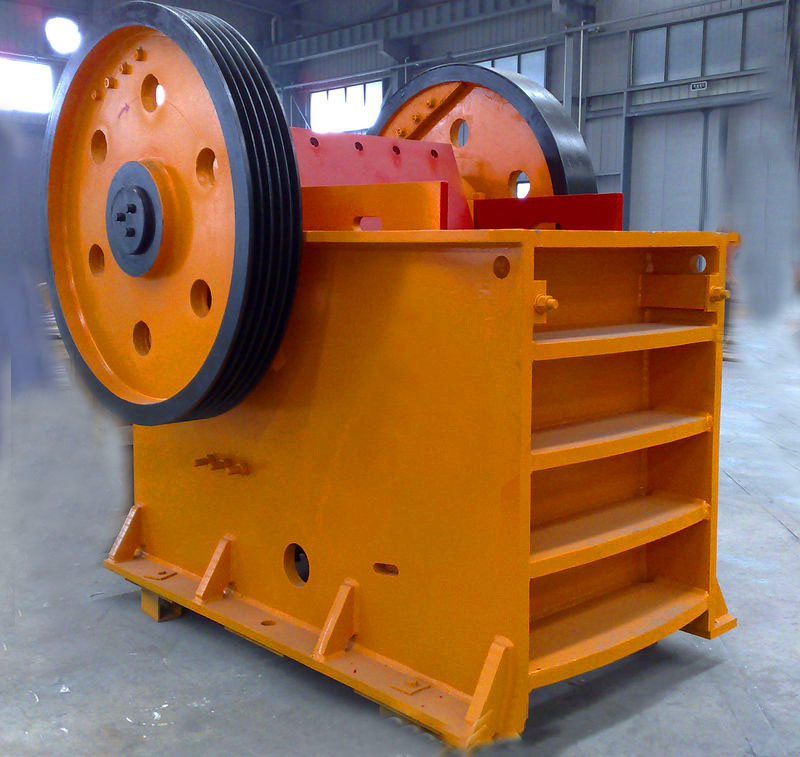

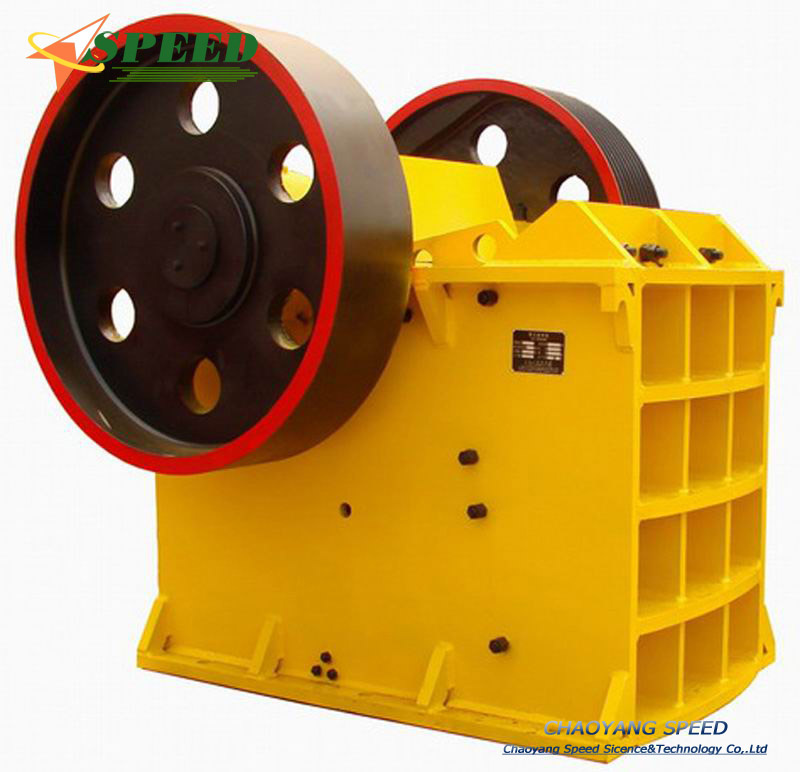

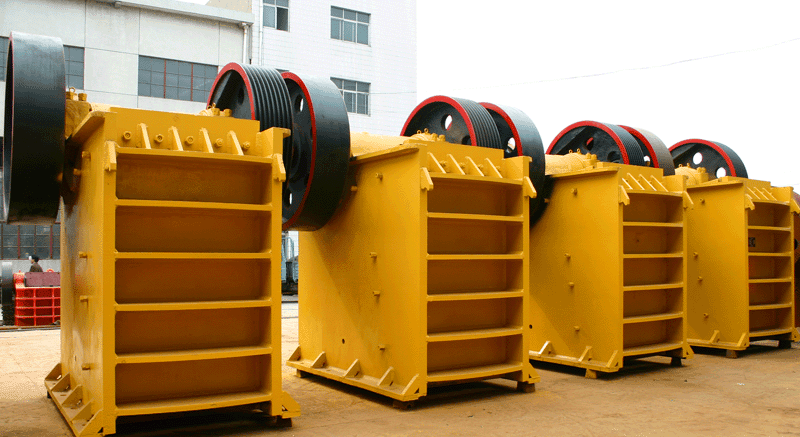

High Effiency Jaw Crusher
Introduction:
Our plant has more than thirty years histories of producing the crusher.In 60th's, we established wide and good relation with the heavy mineral bureau of No.1 machinery department and mineral machinery study institue. We are one of the main early plants which produce the mining shredding equipment in civil.
The jaw crusher is suitable to crush all kinds of coarse,middle ore or rock, it is widely used in the industries of black, colored metal mine,asbestus, cement,glass,building material etc..The jaw fine crusher is one of ideal equipments of fine shredding mine and clinker.It has the advantages of dependable running,long usage life,high efficiency,low energy consumpotion.The hammer crusher is suitable to crush all kinds of brittle mine, such as:coal,salt,chalk,gypsum,alum,tile,limestone etc.)The impact crusher has the characters of simple structure. large reduction ratio, high output and low consumption etc.
In recently, we produce PFC series of impact hammer crushers according to the foreign advanced technology of shredding equipment. Its reduction ratio is large, the efficeiency is high, it is ideal matching shredding equipment of cement clinker production line of capacity of 500 tons, 1000 tons, 2000 tons.
Product Advantage:
1.Sound stability and high reliability
High-quality steel casting is used to form the assembly of movable jaw, with adoption of forging stock to process the heavy eccentric shaft, and this makes the jaw crusher have superior stability. Compared with crushers with the same specifications, this crusher adpots greater and more durable eccentric shaft bearing to ensure higher carrying capacity with stability.
2.Advanced process and long service life
The world-class manufactoring process is used for this product employs, with adoption of advanced dnent processing equipment to ensure precision degree of components;the most high-end manufactoring materials are selected to tremendously enhance the crushing resistance and arasive resistance to greatly prolong its service life.
3.Simple structure and convenient maintance
hrough constant improvement and optimization, when ensuring performance improvement, the equipment structure is simplified. It is easier to operate the whole equipment, more convenient to maintain it, with the shutdown maintance time reduced greatly.
4.Large capacity and good grain shape
The advanced crushing princle is adopted to obviously increase the propotion of cube in products, with reduction of flake cobble to make fraction more even.
Detailed parameters
| name | type | specification | drawing No. | weight (t) | design capacity(t/h) | shape dimension (mm) | main technic characters | drive device | remarks | |||
| motor | reducer | |||||||||||
| type | KW | type | speed ratio | |||||||||
| jaw crusher | PE-250 | 250×400 | K3124.00 | 3.1 | 5-20 | 2060×1261×1413 | feeding<210mm adjustment scope of discharing pocket width 20-80mm | Y200L1-6 | 18.5 | electrical control JJO1-20 | ||
| jaw crusher | PE-320 | 320×500 | K325.00 | 4.73 | 10-38 | 1500×1500×438.5 | feeding<270mm adjustment scope of discharing pocket width30-90mm | Y250M-8 | 30 | electrical control JJO1-50(30kw) | ||
| jaw crusher | PE-400 | 400×600 | K3125.00B | 6.9 | 14-65 | 1700×1732×1596 | feeding<350mm adjustment scope of discharing pocket width40-160mm | Y250M-8 | 30 | electrical control JJO1-50 | ||
| jaw crusher | PE-400 | 400×600 | K315.00 | 6.5 | 17-60 | 1680×1710×1601 | feeding<350mm adjustment scope of discharing pocket width40-100mm | Y250M-8 | 30 | electrical control XJO1-40 | ||
| jaw crusher | PE-450 | 450×1200 | K326.00 | 16 | 50-100 | 2200×2360×1980 | feeding<380mm adjusting scope of discharge mouth width 50-120mm | Y315M1-8 | 75 | |||
| jaw crusher | PE-500 | 500×750 | K323.00 | 12.065 | 40-95 | 2200×1916×1970 | feeding<425mm adjusting scope of discharge mouth width 50-100mm | Y315S-8 | 55 | electrical control JJO1-140 | ||
| jaw crusher | PE-600 | 600×900 | K322.00 | 17.67 | 60-200 | 2350×2280×2390 | feeding<500mm adjusting scope of discharge mouth width 75-200mm | JR117-8 | 80 | electrical control XQP1-140 | ||
| jaw crusher | PE-750×1050 | 750×1050 | K318.00 | 23.42 | 80-200 | 2200×2360×1983 | feeding<630mm adjustment scope of discharing pocket width801-180mm | YR280M-6 | 90 | |||
| jaw crusher | PE-750×1060 | 750×1060 | K321.00 | 24 | 90-260 | 2200×2360×1984 | feeding<630mm adjustment scope of discharing pocket width80-200mm | YR280M-6 | 90 | |||
| Prod Model: | PE250-750*1060 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(T/H): | 10-650 |
| Motor Power: | 18.5-90kw |
| Warranty Period: | 1 Year |
| Installation: | Under The Guidance |
| After Sales Service: | Maintenance and Replacement Service for One Year |
| Type: | Jaw Crusher |
| Application: | Stone Industry |
| Drive: | Electric |
| Crushing Style: | Extruding |
| Crushing Degree: | Intermediate Crusher |
| Color: | Customerized |
