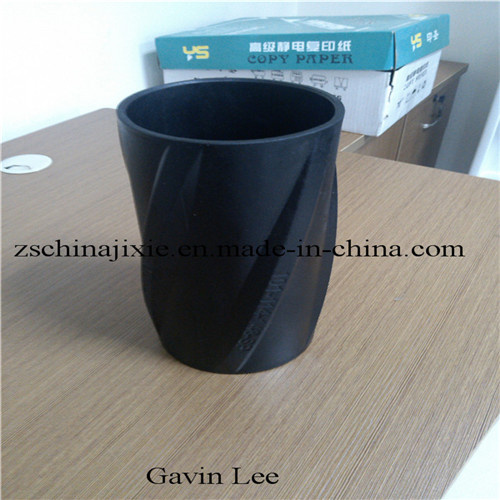

Low Price Polymer Composite APC Material Centralizer

Product Specifications

Prod Model:	7" x 8.5"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	Oil Well Cementation
Sample Time:	8 Days
Main Body:	Polymer
Size:	7"X8.5"
Color:	Red, Black, Orange or Others
Yield Strength Of Body:	94,000 Psi
Tensile Strength Of Body:	103,000
Yield Strength Of Blade:	36,000 Psi
Tensile Strength Of Blade:	58,000 Psi

Product Description

Item: Polymer Centralizer

Material: carbon steel

Length: 154mm, 200mm, 240mm

Surface: colored, electrostatic painting

Usage: oil drilling for horizontal holes

Accessory: Stop Ring, Setting Screw

Available Size: 4 1/2" x 5 1/2", 4 1/2"x 6", 4 5/8"x 5 5/8", 5 1/2"x8 1/2", 6 1/2"x8 1/2", 7" x 8 1/2", 7 5/8" x 9 7/8", 9 5/8"x 12 1/4", 13 3/8"x 16", 13 3/8"x 17 1/2" or customized dimensions.


Function:

Solid casing centralizers are very effective in providing the casing with good support especially in anything other than a vertical run. In a vertical application, the bow spring centralizer might be the more economical choice but for the people involved that need a proof positive standoff and a reliable and long lasting well, the Rigid Centralizer is the professional choice.

Oil well drilling and well completion, it's longevity and safe operation depends greatly on a good, complete cementing. Deviated or fully horizontal casings rely on a proper standoff for a complete cementing which comes from using Rigid Casing Centralizers! Rigid centralizers offer that insurance     as they overcome the gravitational and axial forces of a casing.



Technical Parameters

Diameter (INCH)	Height(MM)
31/2×51/2	200
41/2×51/2	200
51/2×81/2	100
51/2×81/2	200
61/2×81/2	120
7×81/2	100
7×81/2	200
7×81/3	200
51/2×81/2	200
7×95/8	100
7×95/8	200
95/8×121/4	100
95/8×121/4	200
133/8×16	240
133/8×171/2	240
5*6	240
41/2×51/2	200
41/2×61/2	150
7×81/2	200
71/2×95/8	200
51/2×81/2	200
65/8×81/2	200
95/8×133/8	240
