Product Specifications
| Prod Model: |
CSB-A31S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Embedded SBC |
| Processor Type: |
ARM |
Product Description

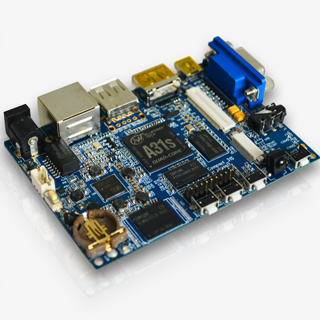

Compact 31S is an ultra compact embedded board built around the Allwinner A31s quad-core phablet processor, which is a power efficient processor adopted by many tablet PC manufacturers, such as Ramos K1, HP Compaq 7, MSI Primo81, Onda V819mini. Coupled with PowerVR SGX544MP2 GPU with eight logic core, Compact 31S enables powerful 3D computing capability as well as excellent UI experience. The compact board can drive HD resolution up to 1280X800 pixels, decode video up to 2160p, and encode video up to 1080P.
Compact 31S can hold up to 2GB DDR3, 4GB eMMC Flash. A microSD card holder on the board enables the addition of Flash memory cards.
Accommodates rich I/O interfaces in a compact system size (92 X 65mm) include USB host&OTG, Ethernet, VGA, HDMI and Audio IO, in the meanwhile, to support WiFi, USB3G, camera and IrDA function, the Compact 31S is an ideal development platform for experimenting and realizing "low cost" embedded applications.
Feature Specifications
* CPU: ARM Cortex-A7 Quad-Core, 256KB L1 Cache, 1MB L2 Cache
* GPU: PowerVR SGX544MP2; Complies with OpenGL ES 2.0, OpenCL 1. X, DX 9_3
* Memory: 2GB DDR3, 1866MHz, soldered
* Flash: On-board 4GB eMMC Flash
* Power: 5V/2A
* USB: 1X USB2.0 Host, 1X USB2.0 OTG
* HDMI: HDMI V1.4, 1080P@60fps
* VGA: Maximum resolution 1280*800
* Audio: MIC/ Phone interface
* Ethernet: 10/100M/1000M Ethernet, RJ45 interface
* LCD: 40pin FPC interface, support capacitive touch screen
* RTC: Real Time Clock, powered by external lithium battery
* SD card: 1 X SD card slot
* Camera: CMOS camera interface
* IrDA: Infrared remote control
* User button: 3X User buttons, for Volume +/-, menu
* GPIO: 1X 20-pin expansion connector
* Dimension: 100 X 72 X 20mm
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Boardcon Embedded Design established in 2008, is an Original Design Manufacturer dedicated to providing high quality ARM core based industrial Computer-on-Module, Single Board Computer and Evaluation board, Boardcon engineer has been developing embedded computing solutions for the OEM market over 8 years. The services are hardware design, driver development, BSP porting and BSP development. On the operating system side Boardcon specializes in Windows CE and embedded Linux. Our commitment to excellent products, low prices and exceptional customer support has encouraged our business to flourish in a very competitive marketplace. We offer a wide variety of ARM based SBCs, computer -on-module and peripherals that satisfy most embedded project requirements.
Our engineers are also enthusiastic about new projects and take pride in new designs that are on the cutting edge of the embedded marketplace. Custom designs are a large part of our business and, with our experience team of embedded engineers, we can provide our client a custom solution at a price that competes with an in-house design.
