Product Specifications
| Prod Model: |
HQ920T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Loading Weight: |
2500kg |
| Engine: |
Euro III |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
SGS,Rops & Fops |
| Condition: |
New |
| Scraper Type: |
Front End Shovel |
| Color: |
According to The Customers Requirments |
Product Description

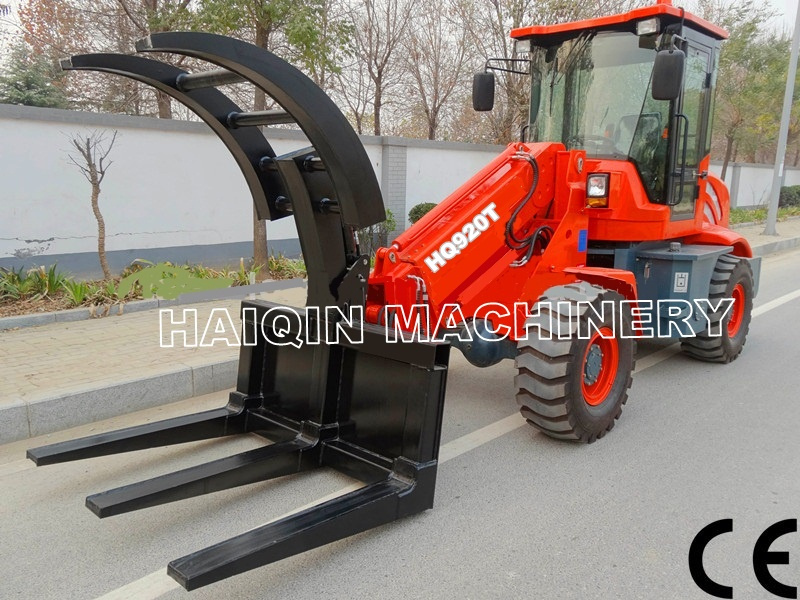

Spedifications of HQ920T farm machinery :
1.0 Engine Details
(1) Model: Luotuo 4108 engine
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 60KW
(4) Rated Speed: 2400 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 180g/kw. H
2.0 Transmission System
Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) Bucket Capacity: 1.0-1.2 m3
(2) Bucket width: 1800mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment
(6) Max Load: 2500kg including attachment.
4.0 Overall Dimensions
(1) Overall Length: 4900mm
(2) Overall Height: 2720mm
(3) Overall Width: 1870mm
(4) Max. Lifting Height: 4500mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5600mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering
6.0 Brake System
(1) Service Brake: Four Wheel Chuck brake
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 20.5-16, 12ply (2)Width: 307mm(3) Diameter: 831mm
8.0 Wheelbase: 2430mm
9.0 Track: 1470mm
10. System pressure: 20Mpa; Hydraulic output: 96L/min
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
