Power inductors:
Low profile with maximum height of 2mm
Low DCR SMD
Large-current SMD
SMD magnetically shield

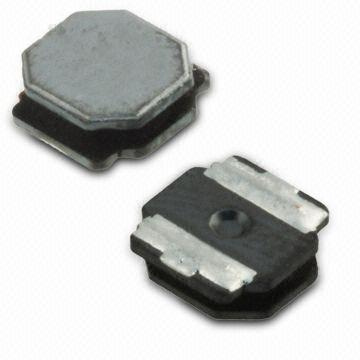

Shielded SMD power chip inductor
Magnetic shielded surface mount inductor with high-current rating
Low profile and shielded very effective in space-conscious applications
Low resistance to deep power loss minimum
Operating temperature: -20 to 85° (contain heating coil)
Appearance inspection: No external defect by visual inspection
Terminal strength: After soldering, between copper plate and terminals of coil, push in two directions of X, Y with standing as below conditions
Terminal should not peeled off
Heat endurance of reflow soldering: 240
Insulating resistance: Over 100MΩ At 100V DC between wire and core
Dielectric strength: No dielectric breakdown at 100V DC for one minute between wire and core
Temperature characteristic: Inductance coefficient (0 to 2, 000) x 10-6/(-25 to +80) inductance deviation within ± 5.0%, after 96 hours
Humidity characteristic: In 90 to 95% relative humidity at 40 ± 2 and one hour drying under normal condition
Inductance deviation within ± 5.0% after vibration for one hour
Vibration resistance: In each of three orientations at sweep vibration (10-55-10Hz) with 1.5mm p-p amplitude
