| Price: | US $ 0.1-10/Meter |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 100/Meter |
| Pay Type: | L/C,T/T |

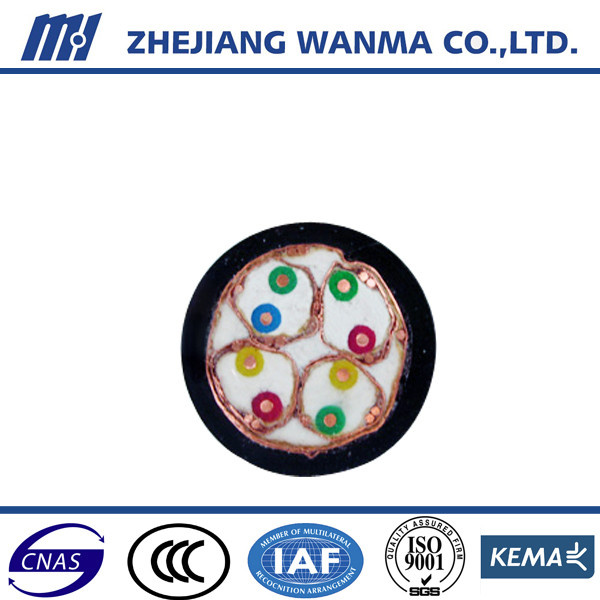

low voltage computer cable
| Brand Name | Wanma |
| Model Number | ZR-DJYP2 300/500V 4*2*1.0 |
| Model Name | Copper conductor, PVC insulation, PVC sheathed, Braiding Screened control cable |
| Manufacturing Standard | Q/SD09-1994 or as Requested |
| Application | The product is designed as the connector wire of electrical appliance, instrument and computer, suitable for distribution installation at rated voltage of 450/750V and below or D.C. At 1000V and below. |
| Core Material | Copper |
| Insulation | PE |
| Sheath | PVC |
| Rated Voltage | 450/750V |
| Max. Rated Operating Temperature of Conductor | 70ºC |
| Laying Temperature | Over 0ºC ; The cable should be heathed beforehand under 0ºC when laid |
| Bending Diameter | Non-armored: ≥6 times of outer diameter Armored: ≥6 times of outer diameter |
| Shipping Way | Shipping or as customer required |
| Packing | Wooden drum or Steel drum |
| Payment Item | T/T; D/C |
Detailed Description
The product is designed as the connector wire of electrical appliance, instrument and computer, suitable for distribution installation at rated voltage of 450/750V and below or
D.C. At 1000V and below.
Application Requirment
The cable can be fixed laid and moving used when relative humidity of no more 80% and working temperature at -40ºC to 50ºC.
The operating temperature pf cable core shall be no more than 70ºC. Direct radiation or contact at high temperature shall be prevented while in use.
Max long term operating temperature of XLPE insulated core is 90ºC.
Temperature when laying cable shall be no less than 0ºC.
The recommended permitted bending radius:
No less than 6 times of outer diameter for the cable which has non-armored layer.
No less than 12 times of outer diameter for the cable which has armored layer or screened layer.
No less than 6 times of the outer diameter for flexible cable which has screened construction.
Note:
(1)We can produce
a.All type of flame retardant cable Flame
Retardant power cable is marked by "ZA","ZB"or "ZC"
Added before the above types.
b.We also can produce low-halogen low-smoke and LSOH flame retardant cable.
LHLS is marked by DDZA,DDZB or DDZC added before original type
Zero-halogen low-smoke is marked by WDZA,WDZB or WDZC added before original type
c.Waterproof, gopher protection, anti-termite, low toxicity cable.
d.Prefabricated branched cable.
(2) To armor the single-core cable,we adopt non-magnetic material or construction for reducing magnetic loss.Only D.C. Voltage is suitable for single-core armored cable(steel tape or steel wire armored cable)

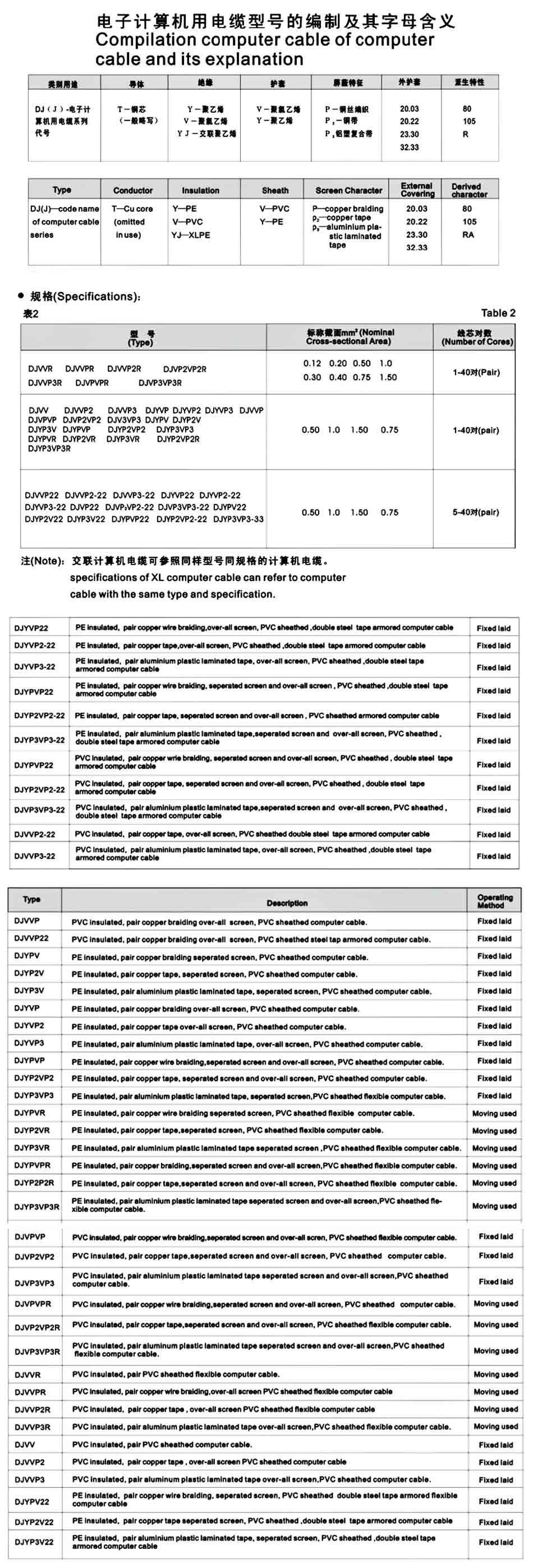

Constructure Drawing
Equipments and Production
| Prod Model: | ZR-DJYP2VP2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Zr-Djyp2vp2 |
| Conductor: | Copper |
| Rated Voltage: | 450/750V |
| Operating Temperature: | 70/90 |
| Laying Temperature: | >0 |
| Insulation: | PE |
| Sheath: | PVC |
| Seperated Screen: | Copper Tape Seperated Screen |
| Overall Screen: | Copper Tape Overall Screen |
| Customized: | Acceptable |
| Voltage: | Low and Medium Voltage Cable |
| Insulation Material: | PE |
| Current: | DC Cable |
| Application: | Computer |
| Certification: | Kema |
| Model: | Zr-Djyp2vp2 |
| Brand: | Wanma |
