Price: | US $ 2000-20000/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Paypal,Western Union |
Prod Model: | LPB series |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gearing Arrangement: | Helical |
Output Torque: | 90-35000n.M |
Rated Power: | 0.55-360kw |
Input Speed: | 1000-1500rpm |
Output Speed: | 22-330rpm |
Ratio: | 45-4.5 |
Mounting Position: | Vertical Flange Mount |
Application Fields: | Metallurgy Blender Equipment |
Motor Type: | DC Motor |
Type: | Efficient Thickener |
Condition: | New |
Descriptions:

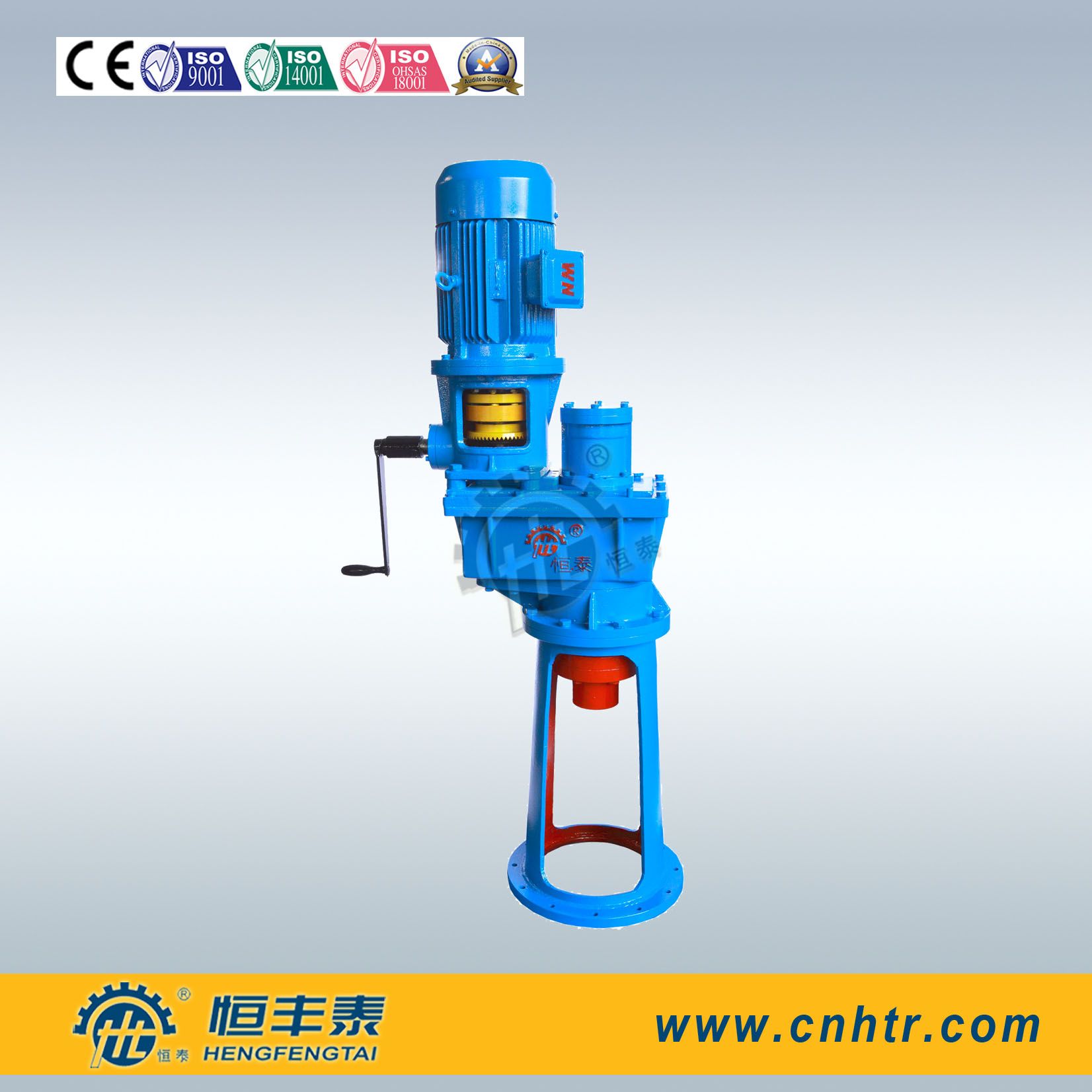

LPB/J is vertical parallel shaft two-grade gear reducer,LSB/J is vertical parallel gear two-grade reducer,and it is a kind of new product absorbed advanced technology home and aborad and designed on the base of parallel shaft horizontal gear reducer,also a reducer suitable for milling reducer under the low noise,low speed of revolution,big torsion and super long shaft, completely solves questions leaking oil.
Electrical motor is connected with flexible loop column shaft couping of reducer,running stably,loading and unloading conveniently.
Range of speed ratio is so large that there is not previously exited.Putting in 4-8 grades electrical motor can get 14 kinds of speed ratios of 5-320r/min and 34 kinds of outview speed.
Competitive Advantage:
1:LPB/J is vertical parallel shaft two-grade gear reducer .it is a kind of new product absorbed advanced technologe home and abroad and designed on the base of parallel shaft horizontal gear reducer.
2:It is suitable for milling under the low noise,low speed of revolution,big torsion and super long shaft ,completely solves question leaking oil.
3:Running stablely,loding and unloading conveniently.
Applications:

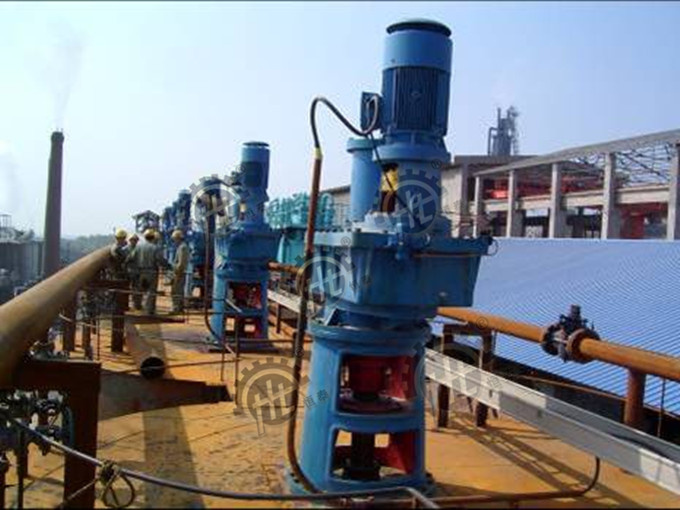

Widely used for Metallurgy,Mine,Construction,Chemical industry,Light industry etc.
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture. The parts replaced remain our property. All other compensation is excluded, nor can any direct and/orindirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Type | Output Axis diameter | Overall size | Setup size | Weight(kg) | |||||||||||||||
B | L | H | H1 | G | G1 | D1 | D2 | D3 | C | h | n | do | L1 | L2 | b | t | |||
171 | 50 | 252 | 378 | 487 | 245~435 | 300 | 434 | 230 | 260 | 290 | 6 | 16 | 6 | 14 | 100 | 100 | 14 | 44.5 | 110 |
215 | 60 | 320 | 474 | 595 | 340~600 | 348 | 505 | 270 | 305 | 340 | 6 | 20 | 8 | 18 | 130 | 130 | 18 | 53 | 185 |
240 | 70 | 360 | 534 | 650 | 435~705 | 375 | 580 | 320 | 360 | 400 | 6 | 20 | 8 | 18 | 130 | 130 | 20 | 62.5 | 241 |
272 | 80 | 440 | 660 | 752 | 535~785 | 440 | 685 | 380 | 430 | 480 | 8 | 24 | 8 | 18 | 160 | 145 | 22 | 71 | 415 |
305 | 90 | 440 | 660 | 752 | 535~860 | 440 | 685 | 380 | 430 | 480 | 8 | 24 | 8 | 18 | 190 | 170 | 25 | 81 | 450 |
375 | 100 | 520 | 785 | 865 | 600~1040 | 510 | 725 | 455 | 520 | 580 | 8 | 28 | 8 | 23 | 190 | 170 | 28 | 90 | 650 |
430 | 110 | 570 | 865 | 970 | 700~1400 | 570 | 915 | 455 | 520 | 580 | 8 | 28 | 8 | 23 | 220 | 200 | 28 | 100 | 835 |
500 | 130 | 650 | 1000 | 1015 | 755~1400 | 615 | 975 | 530 | 590 | 640 | 10 | 30 | 12 | 23 | 220 | 220 | 32 | 119 | 1245 |
550 | 140 | 690 | 1070 | 1067 | 900~1400 | 670 | 1045 | 560 | 590 | 700 | 10 | 35 | 12 | 23 | 220 | 225 | 36 | 128 | 1330 |
