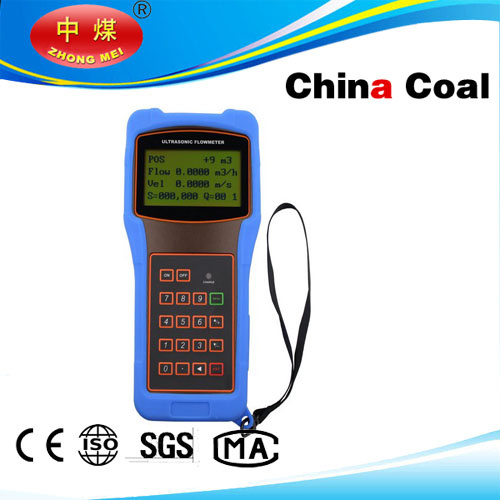

Lrf-2000h Handheld Ultrasonic Flow Meter

Name: Lrf-2000h Handheld Ultrasonic Flow Meter
Brand: china-manufacturer-directory.com
SKU: 700253782
Availability: InStock
Rating: 4.4 (38 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 100-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LRF-2000H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Lrf-2000h
Linearity:	0.5%
Response Time:	0-999 Second, User-Configurable
Transducers:	Model TM-1 for Standard, Other 4 Models for Optio
Size.:	210×90×30mm
Repeat Ability:	0.2%
Flow Range:	±32m/S
Measuring Pipe Size:	15mm - 6000mm
Handset Weight:	500g (Include Battery)
Accuracy:	?à0.6-1%
Main Application:	Corrosive Liquid/Gas
Size:	DN50-100
Sensor:	Tube/Flange
Type:	Vortex Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles

Product Description

Product Description
Features

High accuracy measuring
Accuracy: ± 1%, linearity: 0.5%, repeatability: 0.2%

Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance

Wide measuring range
Several types transducer for selection, measuring pipe size from dn15mm to dn6000mm
Light weight
Size: 210× 90× 30mm, weight: Only 0.5kg

Large capacity battery
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation

Large LCD display
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc

Built-in data logger
Built-in 24k data logger, store over 2000 lines measuring data

Specification:

Items	Specification
Linearity	0.5%
Repeatability	0.2%
Accuracy	Better than ±1% , for velocity above 0.03m/s
Response Time	0-999 second, user-configurable
Flow Range	±32m/s
Measuring Pipe Size	15mm - 6000mm
Units	English (U.S.) or metric
Totalizer	7-digit totalizer for net, positive and negative flow respectively
Liquid Types	Any single uniform liquid which can transmit ultrasonic
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4×16 letters
Communication Interface	RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowm eter and other UFM on enquiry.
Transducers	Model TM-1 for standard, other 4 models for optional
Transducer Cable	Standard 5mx2 or can be extended to 10m x 2
Power Supply	3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter
Data Logger	Built-in data logger can store over 2000 lines of data
Manual Totalizer	7 digit, calibrating by key
Housing Material	ABS
Size	210×90×30mm
Handset Weight	500g (include battery)
