Product Specifications
| Prod Model: |
LS77W-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Speaker |
| Transmission Mode: |
Air-conduction |
| Cone: |
Foam-edge |
| Style: |
Wireless |
| Transducer Principle: |
Dynamic Earphone |
| Brand: |
Ls |
| WORD NChannels: |
2.0 |
| Certification: |
Rosh |
Product Description
| Attribute | Value |
| 1.1 Rate power | 8W |
| 1.2 Max power | 10W |
| 1.3 Sensitivity | 90±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz) |
| 1.4 Impedance | 4Ω±15% |
| 1.5 Frequency | Fo~~20KHZ |
| 1.6Resonance frequency | 200±20% |
| 1.7 Distortion rate | ≤5% |
| 1.8 Magnet size | Φ40*19*8 |
| 1.9 Weight | 100g±8% |
| 2.0 Size | 77*77*32Hmm |
| 2.1voice coil & Material | Φ13.28mmCopper |
| 2.2 Cone | Paper cone with foam edge |

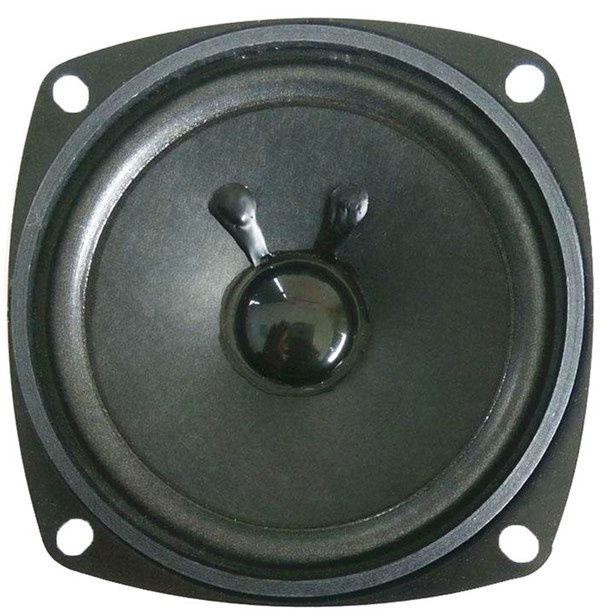

L LS77W-15 full range 3inch speaker driver 8w 4ohm.
We also can produce the speaker accodring to customer's request.
Q1: What is the MOQ of this 3inch full range speaker?
Answer: 1000pieces
Q2: What is the delivery time?
Answer: 30 days for a 20' container, it various according to the material and quantity requirement
Q3: What are your payment terms?
Answer: TT 30% deposit,left 70% against B/L
Q4: Do you offer free samples?
Answer: 2pieces for free freight collected, and the sample's delivery time is 7-15 days.
Q5: Packing details?
Answer: Paper clapboard + carton box
Q6: What's the H.S. code of the 3inch multimedia speaker?
Answer: 8518290000
