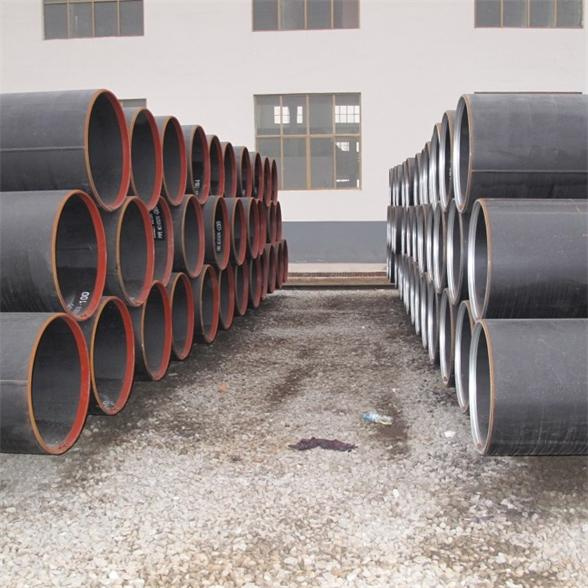

LSAW Line Steel Pipe for API Onshore Liquid Transportation

Product Specifications

Prod Model:	LSAW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Saw:	LSAW Sawl SSAW Sawh
Grade:	a-X120
Surface:	Painted 3lpe 3PE 3PP Fbe
L:	6-18m
Type:	Welded
Certification:	API
Application:	Hydraulic Pipe
Section Shape:	Round
Usage:	Pipeline Transport
Technique:	SAW
Surface Treatment:	Bare, Bare/Oil Varnished /Anti-Corrosion Coating

Product Description

LSAW STEEL PIPE FOR LIQUID TRANSPORTATION


The company imports domestic advanced LSAW production line, with international mature JCOE production process adopted. The pipes produced according to API Spec 2B, API Spec 5L, GB/T9711 and SY/T10002 standards, widely used for oil and gas transmission and various offshore steel structures.

Process:
LSAW (Longitudinal Submerge-arc Welded) UO(UOE), RB(RBE), JCO(JCOE)
DSAW (Double Submerged arc welded)

Steel Grade:
BS: 1387, EN10217: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52
ASTM A 53: Gr. A, Gr B, Gr C, Gr. D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
GB/T3091, SY/T5037, SY/T 5040, CJ/T 3022: Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8

Size:
LSAW, DSAW:
Outer Diameter: 219mm-1820mm
Wall Thickness: 5.0mm-50mm
Length: 6mtr-18mtr

End: Square ends (straight cut, saw cut, and torch cut). Or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2, 000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
Strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Nominal O.D. (mm)	Wall Thickness								Length (m)
	Min. Yield Strength(Mpa)
	175	245	290	360	415	450	485	555
406	10-18	10-18	10-18	10-18	10-16	10-16	10-16	10-14	6.0-12.0
457	10-20	10-20	10-20	10-20	10-18	10-18	10-18	10-16	6.0-12.0
508	10-26	10-26	10-26	10-24	10-24	10-24	10-22	10-20	6.0-12.0
559	10-28	10-28	10-28	10-26	10-26	10-26	10-22	10-22	6.0-12.0
610	10-30	10-30	10-30	10-30	10-28	10-28	10-26	10-24	6.0-12.0
660	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
711	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
762	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
813	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
864	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
914	10-35	10-35	10-35	10-35	10-35	10-32	10-32	10-26	6.0-12.0
965	10-35	10-35	10-35	10-35	10-35	10-32	10-32	10-26	6.0-12.0
1016	10-40	10-40	10-40	10-38	10-38	10-38	10-32	10-26	6.0-12.0
1067	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-26	6.0-12.0
1118	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1168	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1219	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1321	10-50	10-50	10-50	10-48	10-46	10-38	10-32	10-30	6.0-12.0
1422	10-50	10-50	10-50	10-50	10-46	10-38	10-32	10-30	6.0-12.0
1460	10-50	10-50	10-50	10-50	10-46	10-38	10-32	10-30	6.0-12.0
