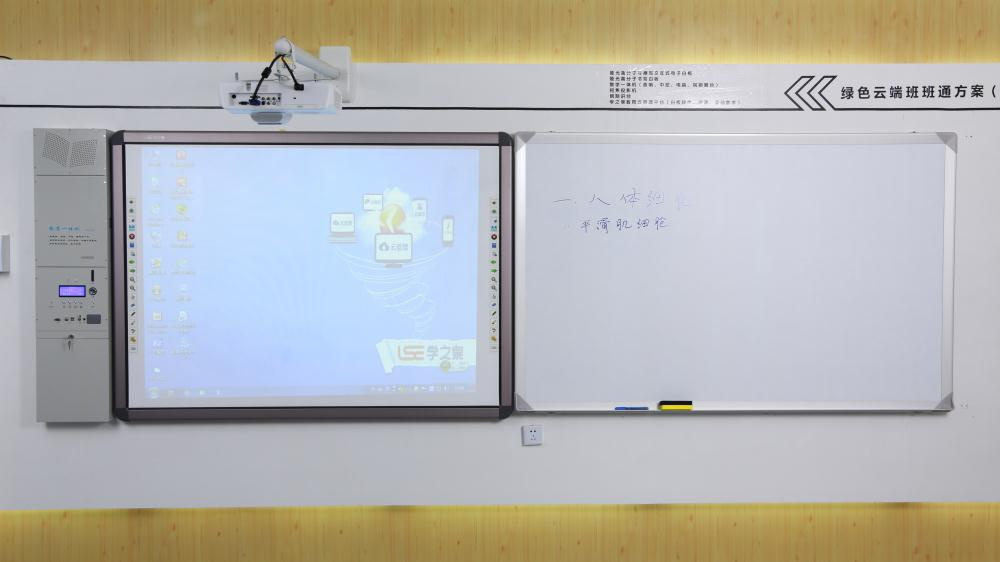

LSE Interactive Whiteboard (LSE-M80E02)
Product Specifications
Prod Model: |
LSE-M80E02 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1760×1280×44mm |
Type: |
Whiteboard |
Laser Model: |
Infrared Technology |
Product Description
Model Number LSE-M80E02
Size 1760× 1280× 44mm
Active Size 1627× 1147mm
Package Size 1820× 1420× 110mm
Operating Temperature -10 degreeto 50 degree
Operating Humidity 30-80%
Net Weight 23kg
Gross Weight 27kg
Projected dimension 1150× 1530mm
Projection Gain Positive
Visual Angle L&R 170, U&D 160 Degree
Surface Material Zinc Coated Steel(galvanized steel sheet)
Handwrite Available Positive
Induction Way Infrared Induction
Induced Objects Any opaque objects, such as fingers, pointer, etc
Power Supply USB power supply directly (without external power supply)
Working Voltage DC 4.6V ~ DC 5V
Current Consumption Less than 1 w, work on USB 5 V voltage, electric current is less than 200 ma
Signal Interface USB 2.0
The maximum length OF USB cable 5m(it needs to add the USB signal amplifier for 20-meter USB cable)
Transmission Speed 12M/second
Light Resistance Strength it can be used under direct sunlight condition
Scanning Speed First point 25ms, 8ms connecting
Cursor Speed 180 HP/SEC
Display Resolution 4096*4096(It actually depends on the resolution of the computer and projector)
Projection Ratio 4: 3
Operating System XP, Vista, Win7, Linux Mac OS X 10.5 above
Founded in 2011, Shenzhen Learning Spring Group Co., Ltd. is headquartered in ChiTAT Industry Park, Longping West Road, Longgang District, Shenzhen City, Guangdong Province, China, is a general taxpayer enterprise, the registered capital is 100 million RMB. Since its foundation, it's always been committed to the cloud and mobile Internet Technology to promote education equalization, to provide the Cloud, Management and Terminals all-in-one region education and overall cloud solutions and innovation applications, and a series of solutions and intelligent terminal products to enhance the educational information level, which builds a Platform + Content + Terminal + Application business mode, via setting up the cooperation Win-win channel marketing platform, casting the excellent brand of education, creating a Comprehensive Group Corporation of China's Education Industry's diversified development.
As a Comprehensive Group Cloud Era of Educational Information Industry, Shenzhen Learning Spring Group Co., Ltd is relying on China Academy of Science cloud computing center basic software advantages, based on parent company ChiTAT Group's more than 20 years intelligent terminal R&D experience and strategic partners' education resource, combines with its own core science innovation resources of Educational Informationization and Cloud Computing fields' first-class technology, talent, scientific research facilities, network, etc., which comes into being the core field of LSE Education Cloud, covering the product system fields of the urban education cloud data center platform software, urban education cloud application software, intelligent educations.
There are 7 subsidiaries and a research institute under the Group, the R&D and manufacture headquarter base's construction area is of 80, 000 square meters, which is located in Longgang District center area, the Group obtained a number of national and provincial identifications, ISO9001: 2008 quality management system certification, ISO14001: 2004 Environmental Management System Certification and OHSA18001 occupational health and safety management system certification, also gained more than 10 national patents. It regards the educational cloud data center, digital campus, interactive multimedia classroom as three major product lines, constructs a comprehensive education cloud platform which is based on Cloud, Management and Terminal, and will provide one-stop turnkey engineering services and digital education resource service, organizes the best endeavors to build cultural industry base which focus on educational cloud field development, to become the education cloud field's the value discoverer and service leader.
The Group successively built multiple digital education industrial zones, such as in Guizhou Province, there are multiple implementation cases in Shenzhen, Dongguan, Bijie, Suzhou, etc., which indicates that we have strong abilities of technology R&D and plan implementation. Concentrating in 3 major platforms' construction of software, hardware and resource, precisely offering and preferentially implementing regional education cloud construction integrated solutions, to build regional education public service cloud platform for each province, city, district and county, to build national lifelong education online platform for creating a learning society, and to offer digital campus for schools, the production line covers regional solutions of education cloud platform, education cloud digital center, digital campus, offering terminal products as Matte polymer erasable whiteboard, Omniscient Box, Green Cloud Terminal BBT, Preschool BBT, child cellphone, child computer, charging cabinet, etc.
