Product Specifications
Product Description
Characteristics:
1. Logical design, compact structure, ventilated, floor area saving, and energy saving;
2. Good smoke prevention and dust control performance, the flue gas blackness and emission concentration comply with national regulated standard;
3. Horizontal steam boiler, can supply steam below 0.4MPa;
4. Easy to operate and repair.

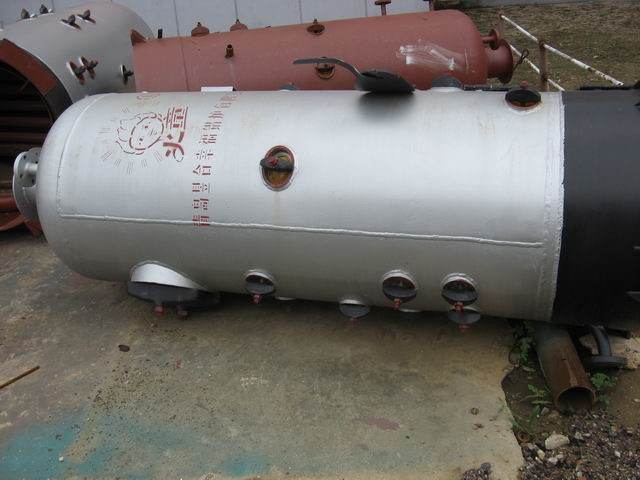

Specification of LSG vertical steam boiler (table 1);
Specification of LSG vertical hot water boiler (table 2).
Remarks:
1. The parameter in the upper sheet is only for your reference, we will not inform customer the varied size and dimension due to the design and installation;
2. The coal consumption is calculated according to the coal in bulk heat rate 6000 kcal/kg;
3. He boiler exterior size is in accordance with the design drawing.
Model
Specification
Unit
Item
| LSG0.125-0.4-A III | LSG0.2-0.4-A III | LSG0.3-0.4-A III | LSG0.5-0.4-A III | LSG1-0.7-A III |
| Rated evaporation capacity | kg/h | 125 | 200 | 300 | 500 | 1000 |
| Rated pressure | Mpa | 0.4 | 0.4 | 0.4 | 0.4 | 0.7 |
| Area of heating surface | m 2 | 6.2 | 9.5 | 13.2 | 22 | 36.5 |
| Area of stoker(Upper,lower) | m 2 | 0.09/0.23 | 0.35/0.42 | 0.51/0.73 | 0.85/1.04 | 16.1/0.96 |
| Water capacity | m 3 | 0.56 | 1.02 | 1.5 | 2 | 5.8 |
| Designed efficiency | % | 68 | 68 | 68 | 69 | 78 |
| Stream temperature | ºC | 151 | 151 | 151 | 151 | 170 |
| Number of persons with water | | 250 | 800 | 1200 | 1800 | 3600 |
| Heating | m 2 | 600 | 1000 | 1500 | 2500 | 6000 |
| Coal consumption | kg/h | 18 | 23 | 35 | 45 | 145 |
| Fuel available | II , III bitumite |
| Burning manner | double-level stoker burning,manually coal adding |
| Flue gas emission concentration | mg/Nm 3 | <150 |
| Flue gas blackness | Grade | 0.5 |
| largest dimension(w*h) | m | 1.066*2.48 | 1.27*3.25 | 1.47*3.46 | 1.72*4.15 | 1.8*4.5 |
| weight | t | 0.93 | 1.56 | 2.06 | 3.53 | 4.35 |
Model
Specification
Unit
Item | LSC0.09-0.4/95/70-A III | LSC0.14-0.4/95/70-A III | LSC0.21-0.4/95/70-A III | LSC0.35-0.4/95/70-A III |
| Rated thermal efficiency | MW | 0.09 | 0.14 | 0.21 | 0.35 |
| Rated pressure | Mpa | 0.4 |
| Rated outflow water temperature | ºC | 95 |
| Rated inlet water temperature | ºC | 70 |
| Area of stoker(Upper, lower) | m 2 | 0.09/0.23 | 0.35/0.42 | 0.51/0.73 | 0.85/1.04 |
| Thermal efficiency | % | 66 | 68 | 68 | 69 |
| Area of heating | m 2 | 6.2 | 9.5 | 13.2 | 22 |
| Coal available | III type bitumite
|
| Circulating water capacity | m3/h | 3.1 | 4.8 | 7.2 | 12 |
| Coal consumption | kg/h | 18 | 23 | 35 | 45 |
| Area of hot | m 2 | 750 | 1200 | 1800 | 3000 |
| Burning manner |
| double-level stoker burning , manually coal adding |
| Flue gas emission concentration | mg/Nm3 | <150 |
| Flue gas blackness | grade | 0.5 |
| Largest dimension(w*h) | m | 1.07*2.48 | 1.27*3.25 | 1.47*3.46 | 1.72*4.15 |
| Weight | t | 0.86 | 1.56 | 2.06 | 3.1 |
Qingdao Xingfu Boiler Thermoelectric Devices Co., Ltd. (Qingdao Happiness Boiler Thermoelectric Devices Co., Ltd. )is established in 1981, located in Qingdao, one major seaport of China. We are specialized in manufacturing B level Boilers, BRI level pressure vessels and the thermal power equipment, authorized by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. Our company has won several titles, namely the outstanding boiler-making enterprise, the Environments Exquisite Factory of the province, and Shandong Star Enterprise. We are also the Qingdao Enterprise with Top Credit Grade. Yuhe Happiness Boiler Co., Ltd. Has fixed asset of RMB55, 800, 000, with abundant technical force, advanced equipment, complete examination method. Moreover, our company has passed the ISO9001 International Quality System Authentication.
Our company has 380 employees, among which there are 78 (20%) technicians, 28 engineers, 136 (36%) skilled workers, and 65 qualified welders.
Qingdao Yuhe Happiness Boiler Co., Ltd has manufactured boilers, pressure vessels and boiler auxiliaries for 25 years. We have our own R&D center, develop and invent lots of new products and new technology. The new type threaded line pipe steam and hot water boilers obtain universal praise from customers. Moreover, in recent years, our company has developed the CWM coal water mixture boiler, which is of low cost, environment protected, and energy conserved. It has been approved by the Provincial Environment Department.
Furthermore, our company can make boiler auxiliaries for large-scale power plants from 300, 000kW to 600, 000kW generators, and has become the major boiler auxiliary supplier in Shandong Province.
