Lsz3000d Diesel Engine Shotcrete Machine Wet Concrete Spray Machine
Product Specifications
| Prod Model: |
LSZ3000D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Mode: |
Electric Motor Drive, Pneumatic Drive, Diesel Driv |
| Condition: |
New |
| Certification: |
CE |
| Type: |
Shotcrete |
| Machining Process: |
Welded Molding Machine |
| Productivity: |
5 |
| Color: |
Customized |
Product Description

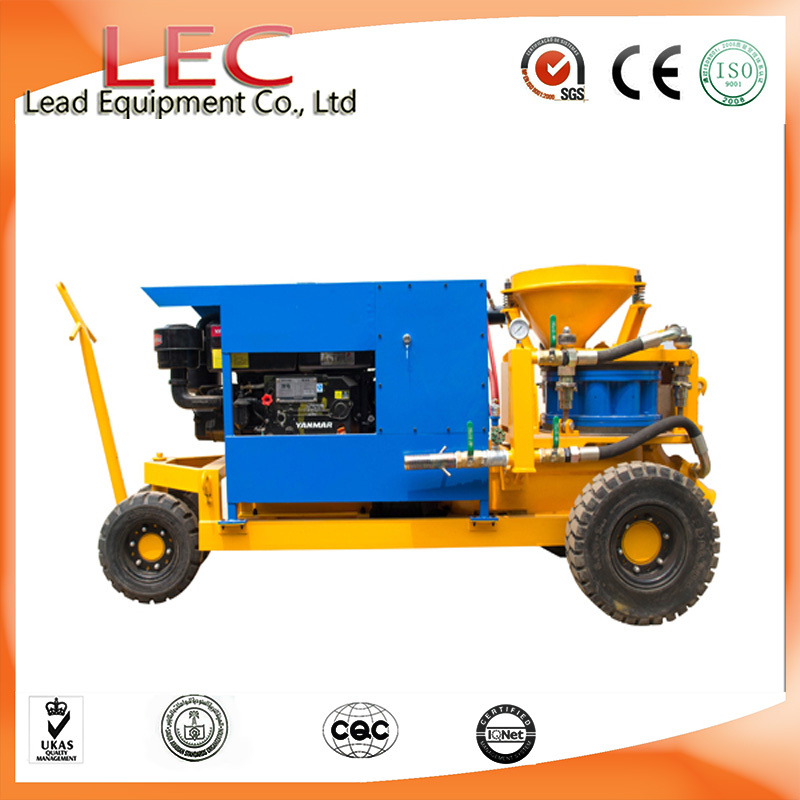

LSZ3000D diesel engine shotcrete machine wet concrete spray machine
1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
LSZ3000D with diesel engine can offer you different brand diesel as per your need.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3. Features:
It can both for dry and shotcrete concrete spraying.
|
Drive type |
diesel engine |
|
Output Capacity |
3-5m 3 /h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
|
Max. Aggregate Size |
15 mm |
|
Conveying Hose Inner Diameter |
Dia.64 mm |
|
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
|
Air Consumption |
10~12m 3 /min(357-430CFM) |
|
Material Charging Height |
1.1m |
|
Rotor Speed |
7.5-11r/min |
|
Diesel Engine |
20hp,2200rpm, Yanmar diesel |
|
Diesel Engine Starting |
Electric start |
|
Clutch Type in Diesel Engine |
Automatic Clutch |
|
Air Vibrator |
OR100,Oli |
|
Overall Dimension(length×width×height) |
2.55×1.05×1.25m |
|
Dosing pump model |
BHA530 Dosing tank |
|
Net Weight |
1300kg |
Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.
Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.
We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.
LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
