Bond Telecom Co., Ltd. >> Lt-V82 VHF UHF Ham Radio for Communication

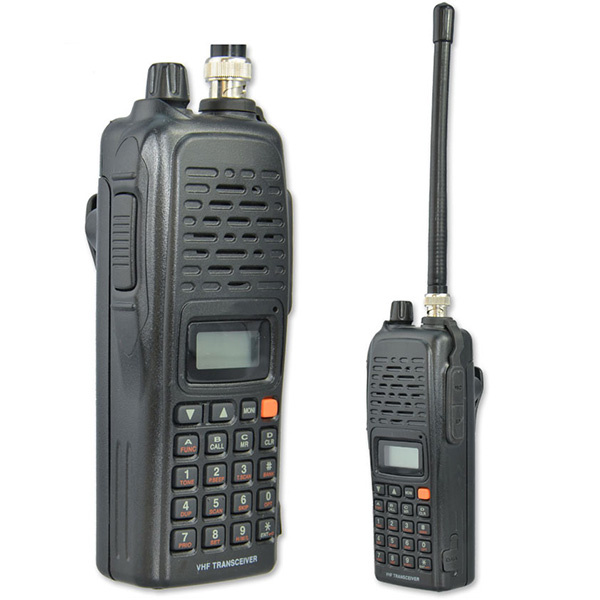

Lt-V82 VHF UHF Ham Radio for Communication

Name: Lt-V82 VHF UHF Ham Radio for Communication
Brand: China-Manufacturer-Directory.com
SKU: 694829972
Availability: InStock
Rating: 4.8 (71 reviews)

Supplier:	Bond Telecom Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LT-V82
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF/UHF
Channel Number:	207
Output Power:	7W
Talk Range:	8km Max
Style:	Handheld
Type:	Handheld
Battery Type:	Lithium Battery
Display:	With Display
Usage:	Home, Commercial

Product Description

LT-V82 VHF UHF Ham Radio for Communication:
Main feature:
1. Frequency Range: 136-174MHz
2. Output power: 7W
3. Channel: 200 memory and 10 memory banks
4. Optional digital unit, UT-118
5. Callsign calling
6. Position exchange with external GPS receiver
7. Built-in CTCSS/DTCS
8. Automatic repeater function
9. Reversible control knob and up/down buttons assignment
10. Durable construction and simple operation
11.16 DTMF dial memory
12. PC cloning capability
13. Dimension: 54*139*37.5 mm

General

Frequency Coverage

(unit: MHz)

Version	IC-V82	IC-U82
USA	Tx 144-148 Rx 136-174 *1	Tx 420-450 2 Rx 400-479 2
Europe	144– 146	430– 440

Guaranteed Range *1 144-148 MHz, *2 440-450 MHz

Mode

F3E, F2D, F7W*
*Optional UT-118 Required

Number of memory Ch.

207 (incl. 6 scan edges and 1 call)

Operating Temp. Range

-10° C to +60° C; +14° F to +140° F

Frequency stability

± 2.5 ppm (-10° C to 60° C)

Power supply requirement

7.2V DC

(6.0-10.3V DC acceptable; battery pack only)

Current drain

(at 7.2V DC)

	IC-V82	IC-U82
Tx	High (7W/5W)	2.6A	2.0A
Rx	Max. audio Standby Power Save	250mA 80mA 30mA	250mA 80mA 30mA

Antenna impedance

50Ω (BNC)

Dimensions (W× H× D) (Projections not included)

54 × 139 × 37.5 mm;

2 1 / 8 × 5 15 / 32 × 1 7 / 16 in

Weight (approx. )

390g; 13.8oz (w/ant. and BP-222N)

Transmitter
Output power (at 7.2V DC) IC-V82 IC-U82	7.0/4.0/0.5W (High/mid/low) 5.0/2.0/0.5W (High/mid/low)
Spurious emissions	Less than -60dBc
Max. freq. deviation	± 5.0/± 2.5 kHz (Wide/narrow)
External Microphone connector	3-conductor 2.5(d)mm ( 1 / 10 " ) / 2.2kΩ

Receiver
Receive system	Double conversion superheterodyne
Intermediate freq.	46.35 MHz/450 kHz (1st/2nd)
Sensitivity (typical)	0.16µ V (typ.; at 12dB SINAD)
Squelch sensitivity	0.11µ V (typ.; threshold)
Selectivity	More than 55/50dB (wide/narrow)
Intermodulation	65dB (typ. )
Spurious and image rejection	80dB (typ.; VHF) 70dB (typ.; UHF)
Audio output power	300mW with an 8Ω load
Ext. speaker connector	3-connector 3.5(d) mm ( 1 / 8 " ) / 8Ω
Ext. Data connector	3-connector 2.5(d) mm ( 1 /
