Product Specifications
| Prod Model: |
LXZK-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Zero-Sequence: |
Ring Type |
| Current Transformer: |
CT |
| LV: |
Split Core Current Transformer |
| 80 Mm: |
240 mm |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Description:

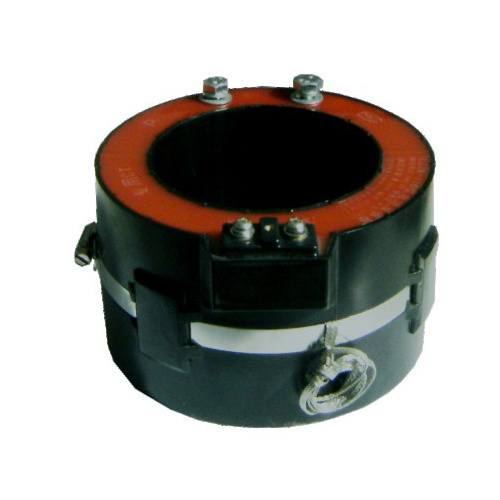

LXZK-120 series of zero sequence current transformer, diameter from 80 mm to 240 mm (cable), used in power system with grounding zero sequence current relay protection device or signal device, motion device components, protection or monitoring.
Main technical parameter
1. Rated secondary current: 5A,1A
2. Power frequency withstand voltage: 3kV.
3. Rated frequency: 50/60Hz
4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
5. Installation site: indoor
6. Other technical parameter pls see as follow:
| Model | LXZK2(3)- Φ120C | LXZK2(3)- Φ120P |
| Purpose | Measuring current transformer | Protective current transformer |
| Rated current ratio | Accuracy class and rated burden(VA) |
| 0.5 | 1 | 3 | 10P10 | 10P5 |
| 30 |
|
| 1 |
| 1 |
| 50 |
|
| 1.5 |
| 1.5 |
| 75 |
|
| 2.5 |
| 2.5 |
| 100 |
|
| 2.5 |
| 2.5 |
| 200 |
| 2.5 | 5 | 2.5 | 3.75 |
| 300 |
| 5 |
| 3.75 |
|
| 400 | 5 | 5 |
| 5 |
|
| 500 | 5 |
|
| 5 |
|
| 600 | 5 |
|
| 5 |
|
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
