Product Specifications
| Prod Model: |
LZXW-0.72 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Window Type: |
LV |
| Zero Sequence: |
Large Size |
| Current Transformer: |
CT |
| Installed: |
LV Zero Sequence Window |
| Zero: |
Sequence Window |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Description:

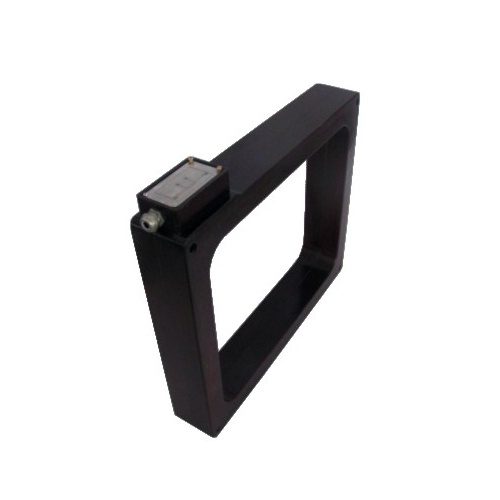

LZXW-0.72 current transformers(CT) epoxy resin vacuum casting
Have good electrical mechanism performance property, damp proof and dirt proof ability
Shape is beautiful and it is easy to be installed
Technical Data:
1. Rated Installation level: 12/28/75kV
2. Rated frequency: 50/60Hz
3. Installation site: Indoor
4. Technical standard: IEC 60044-1:2003 , IEC 61869-1&2
Specification
| Type | Ratio
(A) | Accuracy Class | Rated Output
(VA) |
LZXW3-0.72/370*450
LZXW2-0.72/400*500 | 50/1 | 10P10 | 1 |
| 50/5 | 10P10 | 0.5 |
| 100/1 | 10P10 | 2 |
| 100/5 | 10P10 | 1 |
| 150/1 | 10P10 | 2 |
| 300/5 | 10P10 | 1 |
| 500/1 | 5P10 | 10 |
| 600/5 | 10P10 | 5 |
| 800/5 | 0.5 | 15 |
Note: Upon requset we are glad to offer transformers according to other technical specs.
Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA
Offering a Wide Range of Products
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.
Passed CE, TUV, ISO and RoHS standards
We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
Contact us today to know more.
Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
