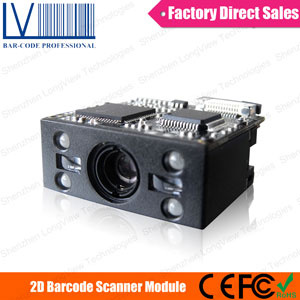

LV3070 series embedded 2D barcode scan engines, armed with the LongView patented, computerized image recognition system, bringing about new era of 2D barcode scan engines
LV3070 2D barcode decoder chip ingeniously blends technology and advanced chip and manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption
LV3070 is support all mainstream 1D and standard 2D barcode symbologies (such as PDF417, QR Code M1/M2/micro and data matrix) as well as GS1-Databar TM (RSS) (limited/stacked/expanded versions)
Compact, lightweight engine fits easily into even most space-constrained equipment such as data collectors, meter readers, ticket validators and PDAs
Highlights of LV3070:
Slim size allowing easy embedding into OEM equipment and systems
Outstanding decoding performance for major 1D and 2D barcodes
High performance CPU and image capture module ensuring fast and accurate scan
Easy OEM software development and firmware upgrade
Interface: TTL232
Image sensor: 752x480p CMOS
Illumination: Red LED 625 ± 10nm
Reading precision: 0-450mm
Precision: ≥ 5mil
Symbol contra: ≥ 25%
Current: 3.3V DC
Operating current: 270mA
Standby current: 270mA
Low power: 3μ A
Power consumption: <0.9W
Weight: 9.5g
Dimensions: (W)28.0x(D)24.5x(H)13.9mm
Guangzhou Longview Technologies Co., Ltd. Is a professional supplier specialized in barcode equipment. Established in 2000, up to now, our enterprise has built up branches in Hong Kong, Shanghai, Shenzhen, Zhuhai, Suzhou and Beijin. With the development of business, we have founded a scanning electron equipment factory and a sticker printing factory.
