Lz-3er Variable Output Shotcrete Concrete and Refractory Spray Gunning Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
LZ-3ER |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Customized |
| Frequency Converter Brand: |
ABB |
| Type: |
Air Spray Equipment |
| Certification: |
SGS |
| Method Type: |
Manual |
| Application: |
Refractory |
| Coating: |
Electric Motor |
Product Description

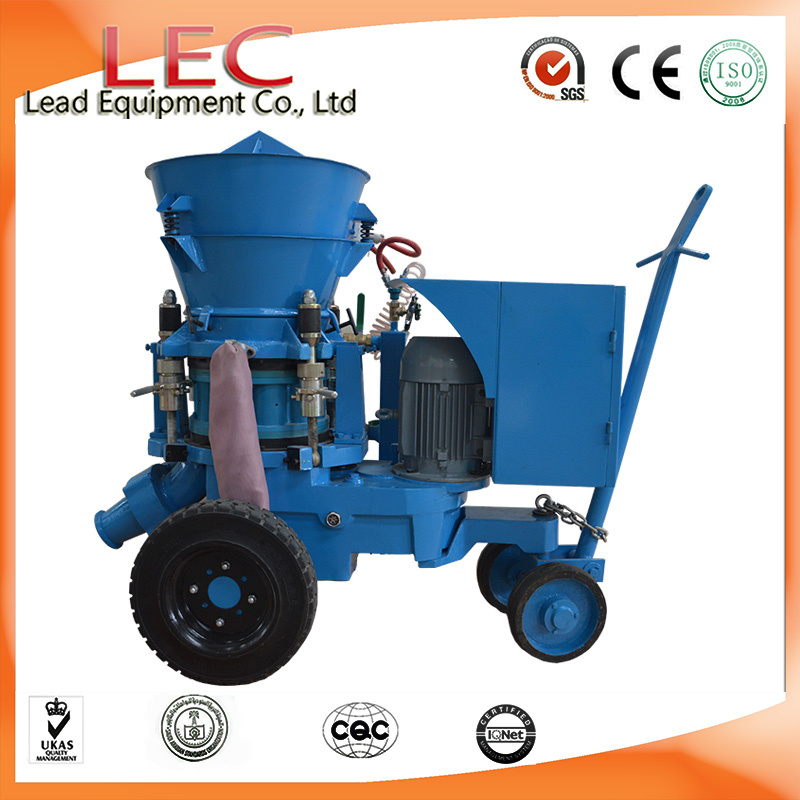

Lz-3er Variable Output Shotcrete Concrete and Refractory Spray Gunning Machine
I. Description
LZ-3ER is specifically designed for Refractory Dry-mix shotcrete applications.
With this LZ-3ER, you can get low dust and high performance spraying flow in nozzle.
II. Features
1. Variable Output with variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. Light weight nozzle
8. Blast rubber hose
III. Technical data:
| Rated Output | 1-3m3 /h (2-6 ton/h) |
| Max. Horizontal Conveying Distance | 200m |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | 38mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 5~6m3/min(electric motor drive)
10-11m3/min(air motor drive) |
| Engine | 4kw(electric motor 3 phase380V50Hz)
4kw (air motor) |
| Material Charging Height | 1.1m |
| Rotor Speed | 13.2r/min |
| Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
| Weight | 430kg |
Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.
Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.
We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.
LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
