Shandong Shengwang Instrument Co., Ltd. >> Lzs-Dn150 Flange Type Flow Meter

Lzs-Dn150 Flange Type Flow Meter

Name: Lzs-Dn150 Flange Type Flow Meter
Brand: China-Manufacturer-Directory.com
SKU: 698000842
Availability: InStock
Rating: 5 (121 reviews)

Supplier:	Shandong Shengwang Instrument Co., Ltd.
Price:	US $ 116/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LZS-DN150 180M3/H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material:	as
Connection:	Flange
Float Material:	ABS
Fitting:	PVC
Messure Range:	18-180 M3/H
Measuring Media:	Liquid
Accuracy:	>?à1%
Size:	DN100-500
Main Application:	Wastewater
Type:	Water Flow Meter

Product Description

Specification:

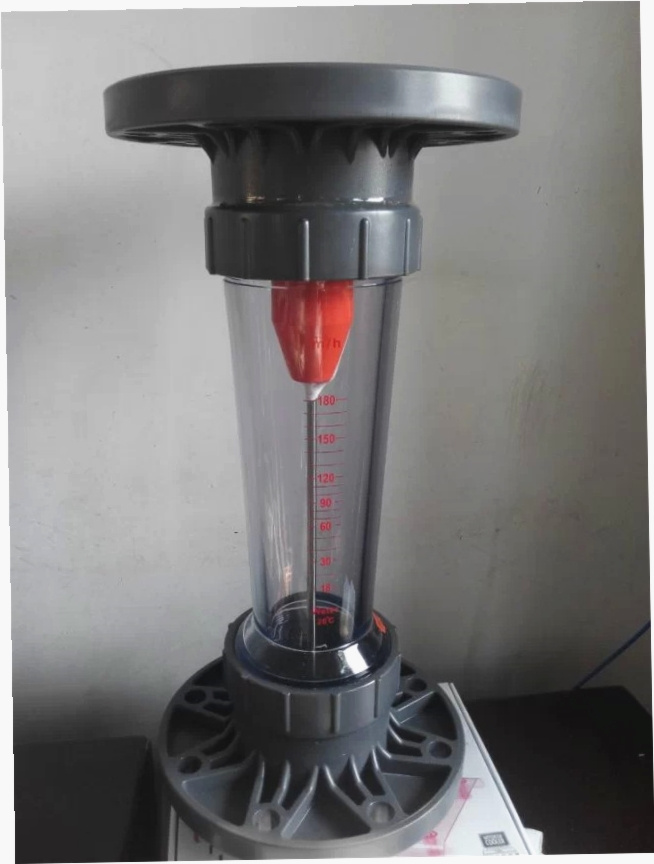

1.Plastic Water Flow Meter
2.Low cost
3.Good chemical resistance
4.Transparent tube, printed scale
5.short-tube type
6.This Product deploy with flange.

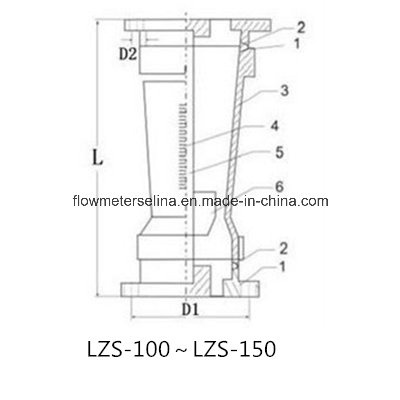

LZS-Durable Plastic Tube Type Flow meter

Model	Measure Range			Media state			Size(mm)								Welding pipe size (mm)
Model	DN (mm)	Long Tube type	Short Tube type	Accuracy	TemperatureºC	Pressure MPA	Long Tube type				Short Tube type				Welding pipe size (mm)
LZS-15	15	6-60L/H 10-100L/H 16-160L/H 25-250L/H 40-400L/H 60-600L/H	6-60L/H 10-100L/H 16-160L/H 25-250L/H 40-400L/H 60-600L/H 100-1000L/H	±4%	0-60	≤0.6	L	D1	D2	D3	L	D1	D2	D3	20
LZS-15	15	6-60L/H 10-100L/H 16-160L/H 25-250L/H 40-400L/H 60-600L/H		±4%			280	45	26	20	202	45	26	20	20
LZS-25	25		100-1000L/H 160-1600L/H 250-2500L/H 300-3000L/H	±4%							226	55	39	32	32
LZS-40	40		0.4-4M3/H 0.6-6M3/H	±4%							288	74	49.5	40	48
LZS-50	50		1-10M3/H 2-16M3/H	±4%							341	98	73	63	65
LZS-65	65		5-25M3/H 8-40M3/H 12-60M3/H	±4%							430	122	88	75	75
LZS-100	100		14-90 M³/H 18-120M3/H	±4%							555	180	18*8
LZS-125	125										555	210	18*8
LZS-150	150										555	240	22*8

Packaging & Delivery

Packaging Detail:	Carton or as per clients'requirements
Delivery Detail:	Based on your quantity

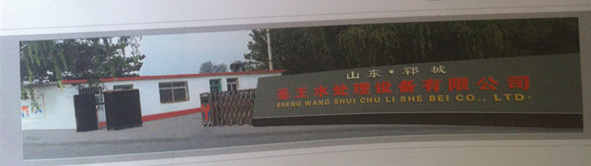

About our company:
We are the biggiest manufacturer of Asia about water treatmentequipment.We specialize in producing pressure gauges and flow meters, our company own produces these products, not through dealers, the price is more to your advantage, the quality is certainly guaranteed.

We are the biggiest manufacturer of Asia. We specialize in producing flow meters and 20"blue filter housing, our company own products these products, not through dealers, the price is more to your advantage, the quality is guaranted.
