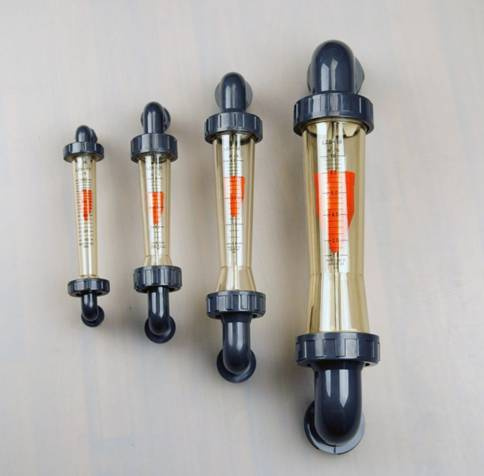

LZS - E/F Durable Plastic Tube Flowmeter
Polysulfone or PC body.
DN: 15 -65 mm
Measure for water
Accuracy: 4
|
Model |
DN(mm) |
Range |
Accuracy |
Temp °c |
Pressure MPa |
|
GPM |
LPM |
|
LZS-15E |
15 |
0.1-1 0.2-2 0.5-5 |
0.5-4 1-7 1.8-18 |
±4% |
0-60 |
≤1.0 |
|
LZS-15F |
0-100 |
|
LZS-15EC |
15 |
0.1-1 0.2-2 0.5-5 |
0.5-4 1-7 1.8-18 |
0-60 |
|
LZS-15FC |
0-100 |
|
LZS-25E |
25 |
0.8-8 1-10 |
3-30 4-40 |
0-60 |
|
LZS-25F |
0-100 |
|
LZS-32E |
32 |
1.2-12 2-20 2.5-25 |
5-50 8-80 10-100 |
0-60 |
|
LZS-32F |
0-100 |
|
LZS-50E |
50 |
2.5-25 5-45 7-70 |
10-100 20-180 25-250 |
0-60 |
|
LZS-50F |
0-100 |
|
LZS-65E |
65 |
25-110 40-160 50-250 |
80-400 150-650 200-1000 |
0-60 |
|
LZS-65F |
0-100 |
Drawings
|
Model |
L |
D |
(P) |
(M) |
(F) |
(W) |
|
L1 |
B1 |
B2 |
L2 |
C |
L3 |
E |
L4 |
F |
G |
a |
H |
|
LZS-15E LZS-15F |
100 |
42 |
150 |
20 |
26 |
170 |
G1/2 Z1/2 |
|
|
155 |
52 |
27 |
13 |
G1/2 Z1/2 |
|
LZS-15EC LZS-15FC |
160 |
50 |
210 |
20 |
26 |
225 |
G1/2 |
210 |
G1/2 Z1/2 |
220 |
56 |
27 |
13 |
G1/2 Z1/2 |
|
LZS-25E LZS-25F |
170 |
59 |
230 |
32 |
39 |
250 |
Z3/4 |
225 |
G3/4 Z3/4 |
270 |
70.5 |
28 |
20 |
G3/4 Z3/4 |
|
LZS-32E LZS-32F |
225 |
72 |
290 |
40 |
49 |
310 |
Z1 |
290 |
G1 Z1 |
345 |
86 |
35 |
26 |
G1 Z1 |
|
LZS-50E LZS-50F |
290 |
98 |
375 |
63 |
73 |
400 |
Z2 |
370 |
Z2 |
440 |
109 |
40 |
46 |
G2 Z2 |
|
LZS-65E LZS-65F |
325 |
120 |
420 |
75 |
89 |
445 |
Z21/2 |
420 |
Z21/2 |
|
|
|
|
|
