(M-200) Portable Multi-Function Valve Lapping/Grinding Tools
Product Specifications
| Prod Model: |
M-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grinding Scope: |
Dn118 ~ 630mm |
| Type: |
Disc Grinder |
| Power Source: |
Electricity |
| Material: |
Aluminum Alloy |
| Working Style: |
High-speed universal |
| Object: |
Valves |
| Disc Diameter: |
Dn118 ~ 630 |
Product Description

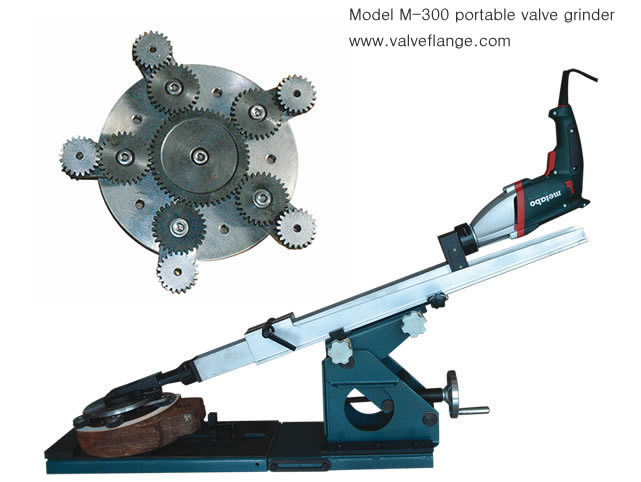

Portable Multi-function Valve Grinding Machine Application:
Wide application which could grinding gate valve and plane valve(valve seat and valve core)
Adjustable Grinding disc take planetary transmission way, grinding claws keep rotation while the grinding disc turning, grinding surface as orthogonal reticular pattern, sealing surface grinding in good quality and high efficiency
Item | M-200 | M-300 | M-600 |
| rinding Range(mm) | Φ118-220 | Φ118-320 | Φ220-630 |
| Voltage(V) | 220 | 220 | 220 |
| Power(W) | 1100 | 1100 | 1100 |
| Frequency (HZ) | 50 | 50 | 50 |
| Min distance of valve seats(mm) | 45 | 45 | 70 |
| Max Grinding Depth(mm) | 650 | 650 | 950 |
| Gross Weight(kg) | 55 | 56+20 | 70+11 |
Portable Multi-function Valve Grinding Machine Features:
Split-type assembly makes installation easy and fast
High-strength aluminum alloy grinding disc. This material with high strength, light weight and hard to deformation
Standard configure: Germany Metabo Motor and world famous bearing
Grinding Paper block, cheap and easy to replace
Grinding speedy, good quality, grinding efficiency is 10-30 times by hand grinding
Aluminum-plastic box packing, light, compact, and easy to carry
Sincere Union Imp & Exp Co., Ltd(Metals Kingdom Industry Limited) is located in Baoding New Technology Development Zone, We are a integrated Corporation. We have our own manufacturing sites with complete Quality Management Systerm ISO9001: 2008, ISO14000, GMP, FAMIQS and etc.
Our main products include Valve Grinding tools /Valve Grinder/Valve Grinding machine, Valve Closed Test Bench, Bevelling Machine, various Valves and Flanges. Besides, We have been dealing with Chemical Products for more than 10years.
We produce Portable Valve Grinding Machine (M-100, M-200, M-300, M-600, M-1200) and Table Valve Grinding Machine. Flanges include Blind Flange, Slip-on Flange, Welding Neck Flange, Socket Welding Flange, Thread Flange and Plate Flange. Valve series have Gate Valve and Butterfly Valves. They are used in low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry.
Pls refer to our website: www.valveflange.com
We can also supply chemical products include Pharmaceutical Raw materials API with GMP and ISO9001 Certification, Zinc Compounds, Nickel Compounds, Cobalt Compounds, Copper Compounds, Lithium Compounds and etc.
They are mainly used for pharmaceuticl, Cosmetic, Animal Feed, Food, Ceramics and enamels, Pigments, Rubber, Electronic, Electroplating, Catalysts, Paint and etc.
Pls refer to our website: www.metalskingdom.com
Meanwhile, we import raw materials for our own factories, including Cast Iron, Zinc Ingot, Low purity Cobalt Hydroxide, Nickel Hydroxide, Cobalt Concentrate, Nickel Concentrate, and etc.
Sincere Union Corp insists on the principle of Quality, Sincere, Credit. We will try our best to be your sincere partner forever.
