Product Specifications
| Prod Model: |
XM18-3008PMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Current Type |
| Detect Distance: |
8mm |
| Mateiral: |
Metal |
| Supply Current: |
4-20mA |
| Connection: |
2m PVC Cable |
| Short-Circuit Protection: |
Yes |
| Mounting: |
Non-Flush Type |
| Type: |
Linear Sensors |
Product Description

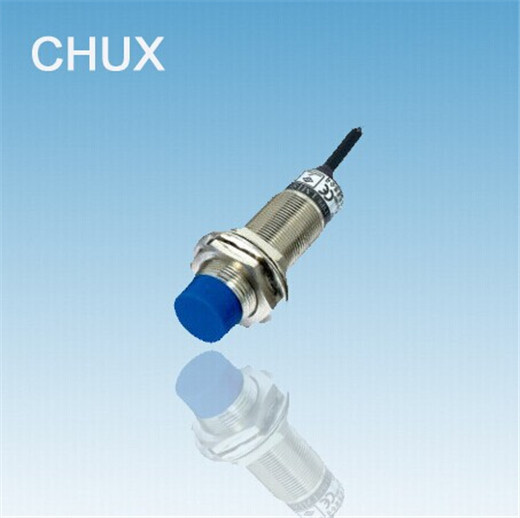

M18 current type linear sensor (XM18-3008PMI)
Model instruction
For examples:
I M 1 2 - 2 - D N A -L
I M: Inductive cylinder type IMF: Inductive square type CM: Capacitive type HM: Hall sensor
XM: Linear sensor
12: Outward code
2: Detect distance: 2mm 4mm 5mm...
D: DC three wires AC: AC two wires DL: AC three wires
N: NPN output
A: NO B: NC C: NO+NC
L: Addition function L: Long sensing distance C: With connector
Main features:
Compact volume
High precision of repeated location
Wide mains voltage range
Good performance of anti-interference.
Many output forms
Easy install
With short-circuit protection and inverted connecting protection.
Long service life
Parameter Data
| Outward appearance code | XM18 |
| Detectable object | metal |
| Detection distance | FLush type:5mm | Non-fulsh:8mm |
| Model avalible | Current type | XM18-3005PMI | XM18-3008PMI |
| Voltage type | XM18-3005PMU | XM18-3008PMU |
| Voltage range | 15~30VDC |
| Consumption | At the time of detection | ≤200mA^<4mA |
| At the time of non-detection | ≤20mA |
| Loading resistance | Current type | 0~300Ω |
| Voltage type | ≥2.2KΩ |
| Output | Current type | 4-20mA |
| Voltage type | 0-5V/ 0-10V |
| Allowable voltage undulation | ≤5% |
| Output signal | PNP simulation |
| Linear error | ±5% |
| Ambient tempertaure | -10°C~+70°C |
| Shell material | Plastic.metal |
| Protection grade | IP54 |
