Product Specifications
| Prod Model: |
IM30-10-DNA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
6-36VDC |
| OEM: |
Yes |
| Detect Distance: |
10mm |
| Cable: |
2m PVC Black |
| Measuring Principle: |
Inductive Type |
Product Description

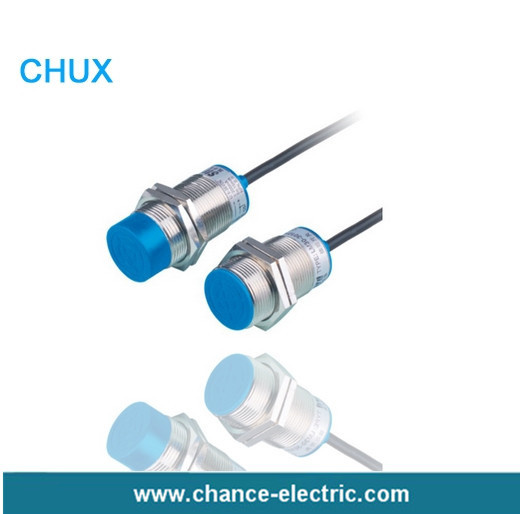

M30 inductive cylinder type proximity sensors (IM30)
Model instruction
For examples:
I M 1 2 - 2 - D N A -L
I M: Inductive cylinder type IMF: Inductive square type CM: Capacitive type HM: Hall sensor
XM: Linear sensor
12: Outward code
2: Detect distance: 2mm 4mm 5mm...
D: DC three wires AC: AC two wires DL: AC three wires
N: NPN output
A: NO B: NC C: NO+NC
L: Addition function L: Long sensing distance C: With connector
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
| Flush | Detection distance | 10mm |
| DC 6~36VDC | NPN | NO | IM30-10-DNA |
| NC | IM30-10-DNB |
| NO+NC | IM30-10-DNC |
| PNP | NO | IM30-10-DPA |
| NC | IM30-10-DPB |
| NO+NC | IM30-10-DPC |
| two wire system | NO | IM30-10-DLA |
| NC | IM30-10-DLB |
| AC 90~250 VAC | SCR Control- lable silicon | NO | IM30-10-ACA |
| NC | IM30-10-ACB |
| NO+NC | |
| Relay output |
|
| Non- Flush | Detection distance | 15mm |
| DC 10~30 VDC | NPN | NO | IM30-15-DNA |
| NC | IM30-15-DNB |
| NO+NC | IM30-15-DNC |
| PNP | NO | IM30-15-DPA |
| NC | IM30-15-DPB |
| NO+NC | IM30-15-DPC |
| two wire system | NO | IM30-15-DLA |
| NC | IM30-15-DLB |
| AC 90~250 VAC | SCR Control- lable silicon | NO | IM30-15-ACA |
| NC | IM30-15-ACB |
| NO+NC |
|
| Relay output |
|
| Output current | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltage dropDC/AC | DC<3V \ AC<10 V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | 30×30×1 ( A3 iron ) |
| Repeated precision | 0.05 |
| DC/AC Response frequency | 200Hz /25Hz |
| Working environment temperature | -25°C ~+ 70°C |
| Insulation resistance | ≥ 50M Ω |
| Shell material | Metal |
| Protection grade | IP67 |
