Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
8G |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| CPU Socket: |
Baytrail J1900 |
Product Description
Detail Specification
CPU
Intel RJ1900 /J18002.0Ghz Low consumption processor
Chipset
Single chip: Intel RJ1900 / J1800
2032-1 ITX-HCMS3J19,With J1900 Quad core CPU.
2032-2 ITX-HCMS3J18,With J1800 Dual core CPU.
Memory
1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 8GB
Graphics
support DirectX 9.0C
Audio
Onboard Realtek ALC662 HD audio chip
LAN
Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface
1 x SATA2.0 Hard disk connector
Expansion Slots
2x MINI PCIE slots
USB
Support 2 PCS USB 2.0 Ports &2 PCS USB 3.0 Ports
Internal

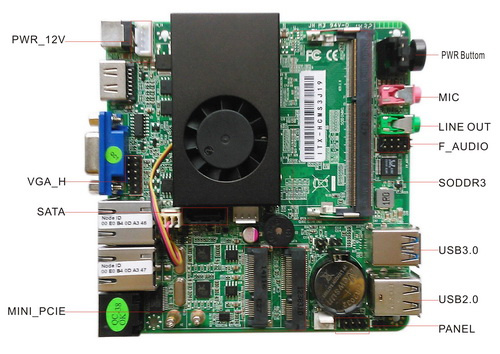

I/O Connectors
1x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
1 x Clear CMOS Header
1 x VGA_H header
1x PW_IN
Back Panel
Connectors
1 x VGA port
1 xHDMI port
2 x USB 2.0 ports
2 x USB 3.0 ports
2 x RJ-45 ports
1x DC port
2x LINE out&MIC ports
1x RJ45-COM port
I/O Controller
1 x IT8772F
BIOS
AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor
120 x 120mm
Work Environmental
Working conditional temperature
-20~60°C
Working conditional humidity
10%~80% relative humidity, non-condensing
Products Using Range
ATM, Kiosk, Digital Signage and Living Room PC
