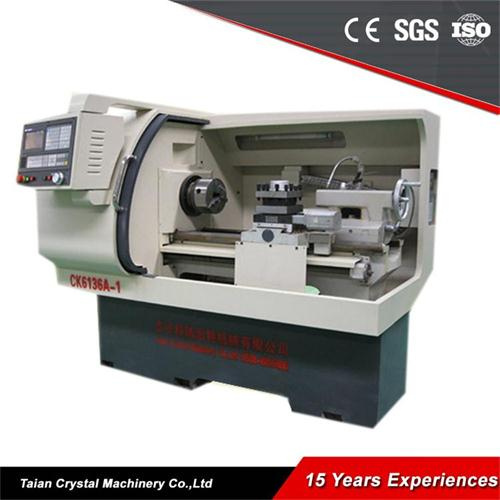

Machine Tools CNC Automatic Lathe Machine CNC (CK6136A-1)

Product Specifications

Prod Model:	CK6136A-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cast Iron
Place Of Origin:	China
Processing Type:	Metal
X,Z Motor Type:	Servo Motor
Power Supply:	Three Phase 380V/50Hz
Warranty:	One Year
Type:	Horizontal Lathe
Automatic Grade:	Automatic
Precision:	High Precision
Power Source:	Electric
Setting Mode:	Floor-type
Controlling Mode:	CNC
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe

Product Description

CK6136A-1  Lathe  Machine

Product Description

 A. Standard Configuration and Specification
1. GSK-928TDL
2. Three-jaw Chuck
3. 4-Station Electric Turret
4. Manual Tail-stock
5. Automatic Lubrication System; Cooling System; Lighting System


ITEMS	Specifications
Max. swim over bed	Φ400mm
Max. swim over carriage	Φ230mm
Max. length of work piece	700mm
Width of the machine	330mm
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT4
Stations of tool carrier	4/6/8
Max size of tool post	20mm or 25mm
Min. setting unit of motor	(Z) long  0.001mm,(X) cross  0.001mm
Moving speed of post	(Z) long   8m/min,(X) cross  4m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	4KW
Packing size(length ×width × height)	1865 mm×1400 mm×1650mm
Net weight	1500/1600kg


B. Instructions of Other Devices


Brands of standard configuration of CNC	GSK and KND
Structure style of spindle	Independent spindle and frequency control
Protective cover and door	metal plate cover and single protective door
Position of CNC system	on the left side, rotation type
lighting system	standard T8 fluorescent lamp
Cooling system	water cooling
Lubrication system	automatic lubrication controlled by microcomputer
Brands of motor-driven tool carrier	Hongda and Sanhe
Type of cabinet base	Overall cast iron


C. Peculiar Setup


Optional brands of CNC systems	SIEMENS,FANUC
Optional types of the tool post	horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic Bar feeding(Customized programs alone)


D. Main Features of CNC Lathe CK6136A-1

1. the base is made from cast iron, which the body is heavy enough so it is of good rigidity and  stability.
2. independent spindle, stepless speed regulation, with lower noise and high- standard machining  accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface.  The extra size diameter of the spindle bore isφ60mm while the diameter of chuck is φ200mm.
4. high cost performance, you can have the configuration of CK6140 but pay the price of CK6136.
