Product Specifications
| Prod Model: |

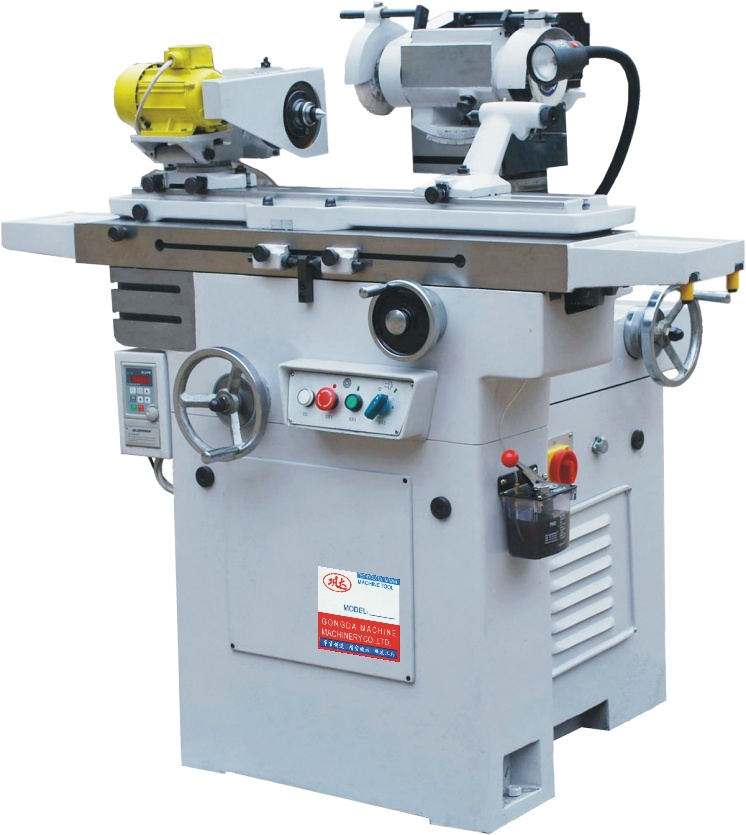

MQ6025A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
Machining Center |
| Precision: |
High Precision |
| Type: |
Middle and Small Machine Tool |
| Automatic Grade: |
Manual |
Product Description
Application:
Grinding various kinds of metal cutters and similar tools
Grinding flute: Edge, outside diameter, surface, etc.
Structure:
Vertical lifting of wheelhead is driven by ball screw
Table adopts steel-lined guide ways
Main Specifications
Max. Swing dia. Of workpiece: 250mm
Max. Distance between centers: 650mm
Max. Longitudinal travel of table: 480mm
Max. Swing angle of table: ± 60degree
Max travel of wheel head cross wertical: 230mm
Max. Swing angle of wheel head in horizontal plane in vertical plane: 360degree± 15degree
Main motor power: 0.75/1.1KW
Greater versatility is available when equipped with special accessories, including:
Standard Accessories: Universal workhead, Front and rear tail stock, Vise, Center Height gauge. Universal tooth rest, Steady tooth rest, Wheel dresser, Wheel guard, Grinding wheel flange, arbor for sharpening, spanner for dismounting, extension spindle, grinding wheel.
Special Accessories: Hob mandrel, special tailstock, setting gauge for hab grinding, radius grinding attachment, three jaw chuck 130mm, cicular permanent magnet 125mm, radius grinding head for grinding spherical surface, face mill grinding attachment, Universal rectangular milling cutter permanent magnet chuck, taper reamer grinding wheel attachment, taper relief angle grinding attachment, drill pointing attachment(1/2"-1"), eccentric plate, internal grinding attachment, dust exhauster.
Dongguan City Gongda Precision Machinery Co., Ltd., specialized in producing Universal-purpose tools and grinders. Our products are under the control of strict quality management, and affirmed by our clients at home and abroad.
Our company is a major manufacturer of universal-purpose tools and grinders as well as one of the manufactures capable of producing bit grinders that can grind up to 250mm. The universal-purpose tools and grinders for machine manufacture/mold manufacture/advertisement carving/printing paper industry; Those products have been sold well in the United States, Europe, Australia, South-East Asia Countries, and Middle East Countries. These products enjoy high reputation among our clients.
Gained ISO9001: 2000 awards and "2007 year Dongguan City the Trustworthy Enterprise of Quality". Our company regards the users and dealers' opinion as the important information to develop new products. We make every effort to provide our clients with superior products at competitive price, our company adheres to the tenet of "High-quality and Lower price", and the principle of "Customer First". We look forward to becoming your supplier in the near future. We can serve you sincerely with timely delivery.
