Product Specifications
| Prod Model: |
SDSI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
PP |
| Product: |
Drinking Straw |
| Speed: |
High Speed |
| Color: |
1, 2, 3, 5 |
| Stripe: |
Spiral, Straight |
| Cut Angle: |
90/90, 90/45, 90/60, 45/45, 60/60 |
| Inverter: |
Delta |
| Certificate: |
ISO, CE |
| Production Time: |
25 Days |
| Guarantee: |
One Year |
| Type: |
Pipe Extruder |
| Plastic Processed: |
PP |
| Product Type: |
Extrusion Molding Machine |
| Feeding Mode: |
One Feed |
| Automation: |
Automatic |
Product Description

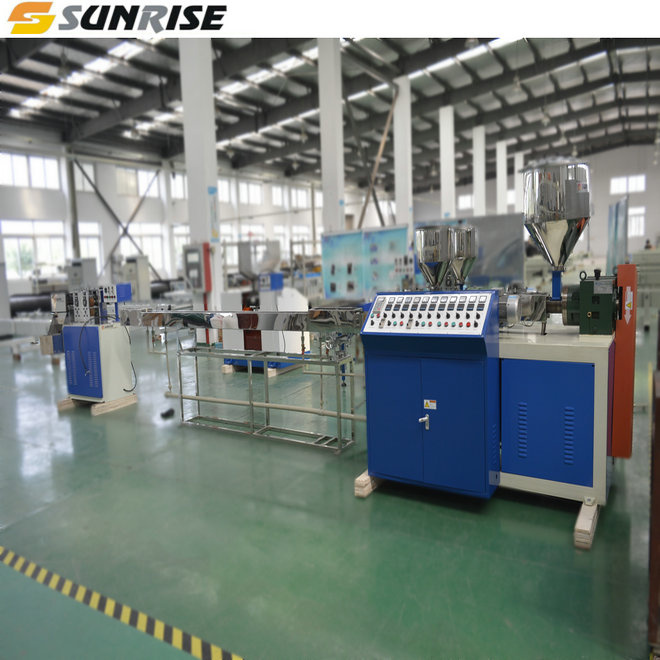

Drinking Straw Machine
1. Introduction
This drinking straw machine is our new design. It adopts the screw diameter 50mm instead of 45mm, and L: D is 28: 1.
The new design makes it easier to plasticize and increase the output. It is an economical perfect machine for drinking straw.
We can make single color .two color ,. three color or five color as the different request ,, here i may not show all ,but you can contract me , we have other full line ,like flexible straw machine , kinds of packing machine ...
2. Characteristics:
1) Colours: Single, two, three or five, spiral stripes, straight stripes.
2) Cutend: 90degree /90degree; 90 /45degree; 90 /60degree; 45 /45degree; 60 /60degree;
3) All the direct contact parts made from stainless steel.
4) The cutting unit adopted the big plate cutter and with automatic gathering system.
5) The breaker, AC contactor and knob switch brand is SCHNEIDER
6) The inverter brand is DELTA.
3.Techinc Data:
| Colour | Single | Two | Three |
| Diameter of screw: | 50mm | 50mm+1x25mm | 50mm+2x25mm |
| L: D | 28: 01: 00 | 28: 1 / 20: 1 | 28: 1 / 20: 1/20: 1 |
| Max. extrusion capacity | 35kgs/h |
| Material | PE / PP |
| Specification of straw | Diameter.: φ 2- φ 14mm |
| Length tolerance: ± 0.1 -1mm |
| Thickness: 0.05-1mm |
| Capacity | 30000-60000pcs/h |
| Power of extruder | 11kw, 380v, 50hz | 11kw+0.75kw, 380v, 50hz | 11kw+2x0.75kw, 380v, 50hz |
| Power of hauling machine | 0.75kw, 380v, 50hz |
| Power of cutter | 0.75kw, 380v, 50hz |
| Power of gathering system | 0.18kw, 380v, 50hz |
| Temperature controlling | 5 sections | 8 sections | 11 sections |
if you want to know more pictures and details .welcome to contract us
Hangzhou Sunrise Machinery Co., Ltd. Established on August, 6th. 1990. We are specialized in Plastic extruder, Plastic recycling machinery. We have our own R&D team and manufacture centers. So we can as per our customer's special requirements to supply and making the advanced and high quality machines. In order to expand the international markets, we have cooperated with some of our partner factory to establish a branch company: Fuyang Sunrise Machinery Co., Ltd. For exporting the machine and importing the parts which we need.
In accordance with years of experiences in plastic machinery manufacturing, we have formed plastic pipe, profiles extrusion and plastic recycling machinery 3 series, and have the ability to do the turnkey projects of plastic industry.
We are very attentive to improve the quality and after service. One year Guarantee, one year free parts and 24 hours technic supporting are our routine.
