Product Specifications
| Prod Model: |
DF-10002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Patch Cord: |
Optical Patch Cord |
| Fiber Type: |
0.9mm 2.0mm 3.0mm |
| Color: |
Red Yellow Green or Customized |
| Brand Or Logo: |
Customized |
| Fiber Length: |
1m 3m 5m 10m or Customized |
| Warranty: |
1year to 3 Years |
| Delivery Time: |
Within 2 to 3 Days |
| Certification: |
RoHS |
Product Description

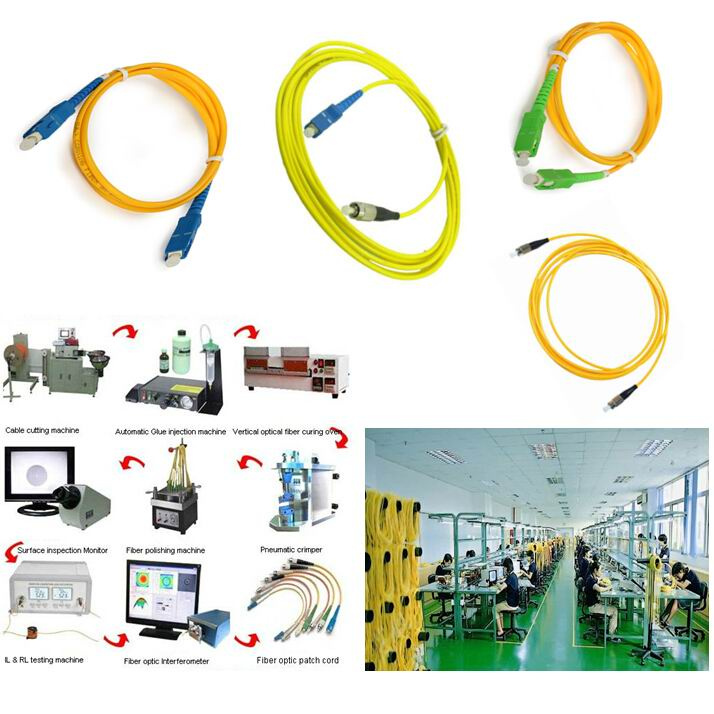

made in China Optical Fibre Patch Cord
1.1m 3m 5m 10m
2.2m or 3mm loose tube
3. UPC or APC end face
Suited for equipment jumper cable, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. ST/ST, SC/SC FC/FCLC/LC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
FEATURE
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Telcordia's GR-326-Core, IEC Standard
Green Production, RoHS Standard
High stability various environments
Customize order available
| Descriptions | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change,1000 mating |
| Interchangeability | ≤0.2dB |
| Vibration | ≤0.2dB |
| Operating Temperature | - 20°C ~ + 70°C |
| Storage Temperature | - 40°C ~ + 80°C |
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 100 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
