Product Specifications
| Prod Model: |
MV-4030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Magnetic Materials Vision Measuring Instruments |
| Model: |
Mv4030 |
| Travel-X. Y Axis: |
400*300(Mm) |
| Travel-Z Axis: |
200mm |
| Resolution: |
0.05µ M |
| X, Y-Axis Accuracy: |
± (2.5+L/150)µ M |
| Repeatability: |
0.003mm |
| Stage Size: |
606*466 |
| Stage Load Capacity: |
30kg |
| Dimension L*W*H: |
970X670X940 |
Product Description
Brief Introduction:

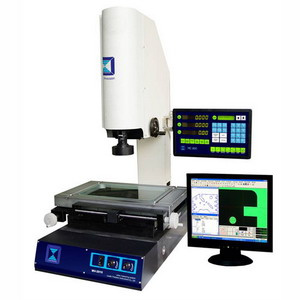

Magnetic Materials Vision Measuring Instruments MV-4030 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.
Application:
Magnetic Materials Vision Measuring Instruments MV-4030 is Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries
Feature
1. Solid granite frame guarantees strength, accuracy and stability
2. Precision stages are available
3. Higher resolution linear encoder 0.5µ M
4. Superb full-color high resolution image with zoom optics
5. Sighting device: Cross-hair generator
6. Connection: RS232 or USB output and metrology software
7. High resolution S-video color CCD camera
8. New MC800 geometric DRO
9. One-click edge detection.
Specification:
| Model No. | MV-1510 | MV-2010 | MV-3020 | MV-4030 |
| Travel-X. Y axis | 150*100(mm) | 200*100(mm) | 300*200(mm) | 400*300(mm) |
| Travel-Z axis | 200mm | 200mm | 200mm | 200mm |
| Resolution | 0.05µ m | 0.05µ m | 0.05µ m | 0.05µ m |
| X, Y-axis accuracy | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m |
| Repeatability | 0.003mm | 0.003mm | 0.003mm | 0.003mm |
| Stage size | 354*228 | 404*228 | 500*330 | 606*466 |
| Stage load capacity | 10kg | 10kg | 20kg | 30kg |
| Dimension L*W*H | 540*560*850 | 540*560*850 | 760x600x900 | 970x670x940 |
| Net weight | 98kg | 108kg | 138kg | 238kg |
Standard Delivery:
| Measuring software M2D | 1/3' ' High resolution camera | Zoom lens 0.7x-4.5x(28X-180X) |
| Capture Card | USD transfer Box | Learning kit |
Optional Delivery:
| Digital Readout MC800 | Navitar Click Zoom Lens | Navitar Zoom Lens |
| Navitar Coaxial Zoom Lens | SENTECH CCD Camera | Computer
|
