Magnetic Separator Features:
Simple structure,
Big processing capacity
Convenient operation,
Easy maintenance, high profit

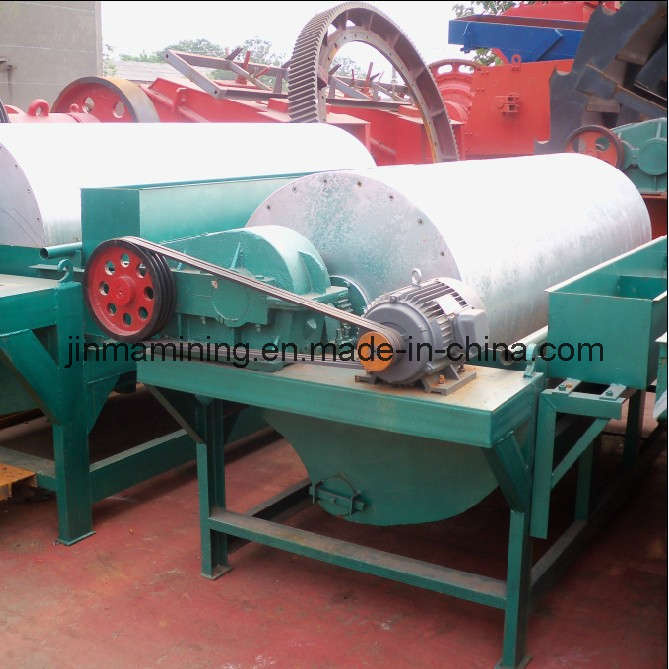

Magnetic Separator Detail Information:
This magnetic separator can separate raw materials with different magnetic rigidities. The machine works by using magnetic force and the machine force. Magnetic separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.
Magnetic Separator Structure:
The heart of each separator is the magnetic system. With a unique design it has a proven record of high efficiency. Available in a circular design with process vessel diameters smaller than 3mm, this magnetic separator is an efficient piece of equipment for processing fine magnetic minerals, such as hematite, limonite, wolfram, ilmenite and tantalum-niobium. Recently, this equipment has also been more and more frequently used in purifying quartz, feldspar and nephline.
Magnetic Separator Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
|
Type |
Capacity(t/h) |
Magnetic intensity(OE) |
Power(kw) |
Weight(T) |
|
CTB600× 900 |
8-15 |
1450 |
1.1 |
0.91 |
|
CTB600× 1800 |
15-25 |
1500 |
2.2 |
1.34 |
|
CTB750× 1200 |
25-30 |
1550 |
2.8 |
1.49 |
|
CTB750× 1800 |
30-45 |
1550 |
3 |
2.05 |
|
CTB900× 1800 |
35-60 |
1550 |
4 |
3 |
|
CTB1050× 2400 |
55-90 |
1550 |
5.5 |
5 |
|
CTB1200× 3000 |
80-150 |
1550 |
7.5 |
7.8 |
|
CTB1500× 3000 |
120-200 |
1550 |
11 |
9.6 |
Zhengzhou Jinma Mining Machinery Co., Ltd. is a heavy machinery manufacturer with more than 30 years experience, subordinated to China CMIIC Engineering & Construction Corporation (CMIIC).
Our leading products include whole set Mineral processing equipments, sand & gravel making equipment.
Mineral processing equipment includes jaw crusher, impact crusher, ball mill, classifier, flotation machine, magnetic separator, sprial classifier, shaking table, etc. It is applicable to select non-ferrous metal ore such as iron, copper, gold, silver, lead, tungsten, molybdenum, manganese and non-metal ores such as fluorite and quartz.
Sandstone making equipments include PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ Small aggregate crusher (Third generation sand making machine), jaw crusher, impact crusher, hammer crusher, composite crusher, manganese steel double roll crusher, rod mill, vibrating screen, conveyor, sand washing machine, etc. Sandstone making equipment is applicable to construct airport, railway, freeway, average highway, nationallarge bridge, sub-bottom tunnel, land tunnel and new-type high building.
Zhengzhou Jinma Mining Machine Co., Ltd. has attracted a large number of scientific manpower and manages talents who represent the advanced level of domestic industry, and has trained a group of production worker with high efficiency and high quality. We can manufacture top-ranking products and provide first class service.
Our clients spread all over the world. Our products sell well in South Asia, Middle East, Africa, South America, etc. About 70% of the equipments are exported annually, winning high praises from purchasers.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish a long term win-win cooperation.
