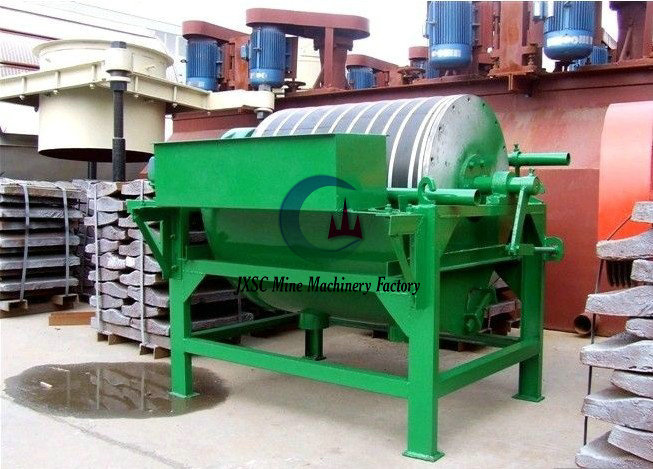

Magnetic Separator for Mining Use
Product Specifications
| Prod Model: |
magnetic separator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
1 Year |
| Application: |
Iron Ore, Hematite, Limonite Separation |
| Color: |
as Your Request |
| Name: |
Silica Sand Magnetic Separator |
| Capacity: |
10-180t/H |
| Work Condition: |
Wet Type |
| Mining Object: |
Ore Dressing |
| Type: |
Beneficiation Machinery |
Product Description
Application of Magnetic Separator
The magnetic separator is suitable for applications that require the separation of raw materials with different magnetic rigidities. It is effective in the processing of fine, magnetic materials that have a granularity value that falls below 3mm such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc.
The machine has also expanded in its application to include the purification of quartz, feldspar and nepheline. A magnetic force is combined with machine force during the separation process. The machine is fitted with magnetic separators that attract ferromagnetic materials in order to separate them from the other materials. There is a wide range of magnetic separators each with a different design, size and a proven record of high efficiency.
The choice provides solutions to many different types of applications. All the designs of magnetic separators use a magnetic system as the main component. They are widely used in more than 20 mineral processing plants within China.
The magnetic separator can be effectively applied for wet mineral separation tasks involving magnetite, pyrrhotine, roasted ore, limonite, etc. It is also effectively used for the removal of other types of material such as coal, non-metal items, building materials, etc.
|
Model |
Shell diameter(mm) |
Shell length(mm) |
Shell rotation speed(r/min) |
Feeding size(mm) |
Processing capacity(t/h) |
Power(kw) |
|
CTB6012 |
600 |
1200 |
< 35 |
2-0 |
10-20 |
1.5 |
|
CTB6018 |
600 |
1800 |
< 35 |
2-0 |
15-30 |
2.2 |
|
CTB7518 |
750 |
1800 |
< 35 |
2-0 |
20-45 |
2.2 |
|
CTB9018 |
900 |
1800 |
< 35 |
3-0 |
40-60 |
3 |
|
CTB9021 |
900 |
2100 |
< 35 |
3-0 |
45-60 |
3 |
|
CTB9024 |
900 |
2400 |
< 28 |
3-0 |
45-70 |
4 |
|
CTB1018 |
1050 |
1800 |
< 20 |
3-0 |
50-75 |
5.5 |
|
CTB1021 |
1050 |
2100 |
< 20 |
3-0 |
50-100 |
5.5 |
|
CTB1024 |
1050 |
2400 |
< 20 |
3-0 |
60-120 |
5.5 |
|
CTB1218 |
1200 |
1800 |
< 18 |
3-0 |
80-140 |
5.5 |
|
CTB1224 |
1200 |
2400 |
< 18 |
3-0 |
85-180 |
7.5 |
|
CTB1230 |
1200 |
3000 |
< 18 |
3-0 |
100-180 |
7.5 |
Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.
Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
