Product Specifications
| Prod Model: |
Magnetic contactless card |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Western Europe |
| Craft: |
Offset/Silk Screen Printing, Lamination |
| Personalization: |
Barcode, Laser Printing, Encoding, etc |
| Application: |
Access/Promotion/Loyalty/Transportation etc |
| Delivery Time: |
7-8 Days |
| Function: |
Information |
| Material: |
PVC |
| Application Field: |
Hotel Access/Time Attendance/Promotion etc |
| Frequency: |
Lf Hf UHF |
Product Description
1.Application :Membership/Loyalty/vip/Hotel lock/Payment/promotion/Access etc
2.Craft:Offset/Silk screen printing,Lamination
3.Personalization:Barcode,Laser printing,Encoding

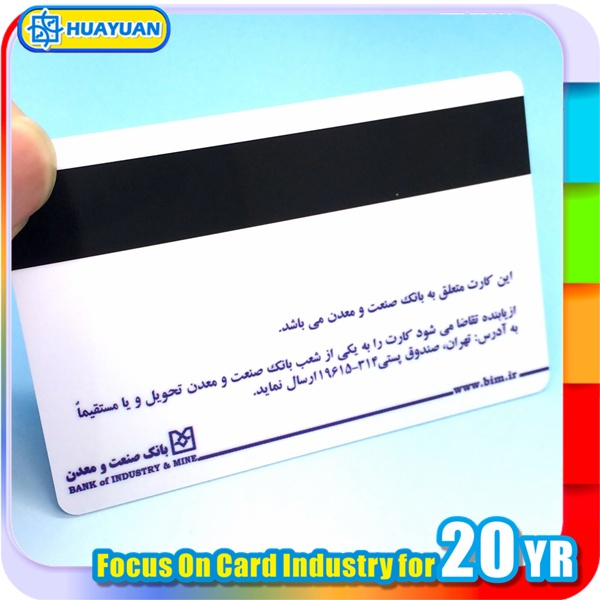

Magnetic contactless card for hotel access control
| Description: |
A contactless card is any pocket-sized card with embedded integrated circuits that can process and store data, and
communicate with a terminal via radio waves. RFID Card offers a diverse range of functions that are commonly
used for such applications as access control, time and attendance, cashless payment, and event management etc. |
| Contactless Card / RFID Card |
| Dimension | ISO7810:CR80(86mm*54mm) or customized |
| Thickness | 0.84±0.02mm or customized |
| Material | PVC,PET,PET-G,Paper,ABS etc |
| Card Surface | Matte/ glossy finish |
| Working Frequency | 125Khz/13.56 MHz/UHF |
| Reading Range | Depending on the design of the antenna of the reader |
| Housing | Lamination |
| Operating Temperature | -25 to +60°C |
| Storage Temperature | -40 to +70°C |
| Available RFID Chip |
| 125KHz | TK4100,GK4001,EM4200,EM4100/EM4102,EM4550,EM4069, ATA5577,ATA5567, T5557,HITAG 1,
HITAG 2, HITAG S256, HITAG S2048 etc. |
| 13.56MHz |
NXP MIFARE® chips available:
NXP MIFARE Ultralight®, MIFARE Ultraligh® C, MIFARE Ultralight® EV1,
NXP MIFARE® Mini, MIFARE Classic® 1K, MIFARE Classic® 4K
NXP MIFARE® DESFire® EV1 2K, MIFARE® DESFire® EV1 4K, MIFARE® DESFire® EV1 8K
NXP MIFARE Plus® 2K, MIFARE Plus® 4K
ISO 15693:I.CODE SLI, I.CODE SLI-L, I.CODE SLI-S, Tag-it Plus(2048), Tag-it Pro(256),
Tag-it Standard(256), LEGIC MIM256, LEGIC MIM1024, LEGIC Supertag,
LEGIC ATC512/1024/2048/4096, FeliCa RCS919, SR176, SRIX4K, LRI64, SRF 55V02S,
SRF 55V10S, MB89R118B ,TI208 etc. |
| UHF 860-960MHz | ISO/IEC 18000-6C EPC Class1 Gen2:ALI9662,AD824,AD803,AD830,U CODE G2XL,
U CODE G2XM,U CODE GEN2,Monza 3
ISO/IEC 18000-6B:U Code HSL,EM4324 etc. |
| Application |
| -Access control |
| -Membership Loyalty System |
| -Time attendance |
| -Hotel locks |
| -Payments |
| -Transportation |
| -Parking System |
| -Logistic application |
| -Supply Chain |
| -Single-use ticket |
| -Multiple-use ticket (book of tickets) |
| -Public transportation- Store value |
| -Pre-paid voucher |
| Printing Option |
| -Full color offset printing |
| -Silk-screen printing |
| -Silver/Gold silk-screen printing background |
| Additional crafts |
| -Number printing(Jet dot,Thermal transfer,Laser engrave) |
| -Barcode printing(Code 39, code 128, EAN13 , EAN 8,QR,etc) |
| -Magnetic Stripe(300oe, 2750oe, 4000oe) |
| -Logo/Graphics/Photo |
| -Overlay Foil |
| -Signature Panel |
| -Name personalization |
| -Photo personalization |
| -Hologram |
| -Security Printing |
| -Encoding |
1. Description:
- ISO 7810, 7811 Compliane, CR80 86mm x 54mm, HUAYUAN had produced plastic
Card for more than a dozen for years.
- With Offset printing with Herdberge offset printer, laminating separating
Of big sheet of card, precisely punching and shaping a finished card.
- With years of experience card manufacture, HUAUAN offer millions
Various plastic cards every month to global market covered hundreds
Of countries and regions.
2. Printing options
- Offset printing(CMYK), digital printing, inkjet printing,
Thermal printing;
- gold or silver color background;
- Hot stamp foil color ( gold, silver, laser red gold etc);
- Security logo printing;
- Hologram logo.
3. Surface Processing Craft
- Lamination Glossy
- Frosted
- Sport UV
- Epoxy
- others special request
4. Material & Size
- PVC, PETG, PET, ABS
- Size: 86x54mm or customized
5. Optional Crafts
- Embossing name, number and date
( gold or silver color for options);
- Barcode: 128code, 39code, QR code
- Signature panel
- magnetic strip
- scratch-off panel
- UV;
6. Magnetic Stripes(LoCo/ HiCo)
- 300oe
- 2750oe
- 4000oe
7. Scratch-Off Panels
- It is commonly used to cover surprise gifts, codes,
Surprise discounts, data, icons etc
- The client/user receives the card in the mail,
At a store, or event and then gets to simply scratch
Off the panel to reveal the information
- You can include more than one scratch panel on your
Design, however, too many panels can leave residual
"scratch-off" material on your cards
8. Application
- Prepaid Calling System
- Membership Loyalty System
- Promotion
- Hotel locks
- Payment
- Supermarket, etc
9. About Us
Company Profile
When the Smart Card industry kicked off in mainland China 18 years ago, HUAYUAN electronic were at the forefront. In 1995, we began by producing plastic magnetic cards. We are the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line. Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
HAUYUAN had also established good and strategic partnership with many international leaders in Smart Card and RFID industry.Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with Rohs, and CE compliant.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
