Product Specifications
Product Description
Accurate non contact position measurement with high repeatability and linearity is achieved with no wear to any of the sensor elements, which are based on the magnetostrictive technology.

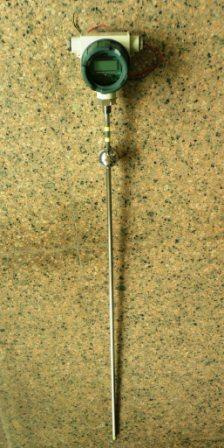

Recently ANLYSUN has finished the magnetostrictive level gauges design project. Magnetostrictive sensor is a specially designed magnetostrictive waveguide by the momentary interaction of two magnetic fields when induced in a torsion strain pulse.
One field comes from a moving magnet, which passes along the outside of the transducer tube, and the other field is generated from a current pulse which is applied to the waveguide.
The interaction between these two magnetic fields produces a strain pulse which travels at sonic speed along the sensor waveguide, until the pulse is detected at the head of the transducer.
The position of the moving magnet is precisely determined by measuring the elapsed time between the application of the current pulse and the arrival of the strain pulse.
Since its formation in 1995 anlysun has built an enviable reputation for innovative design achievement within time and cost targets in southwest China. Projects range from simple printed circuit board assemblies through to the design of complete electronic products.
Anlysun provides custom electronics design, embedded systems design, prototyping & electronic manufacturing services covering a wide area in the electronics domain. We design all types of electronic circuits or products according to custom specifications at affordable costs still maintaining highest possible quality.
It has been a fundamental principle and significant factor in the success of anlysun that the client has ownership of the intellectual property (IP) embodied in each design.
