Maneurop (Danfoss) Reciprocating Compressor (MTZ22-5VI)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

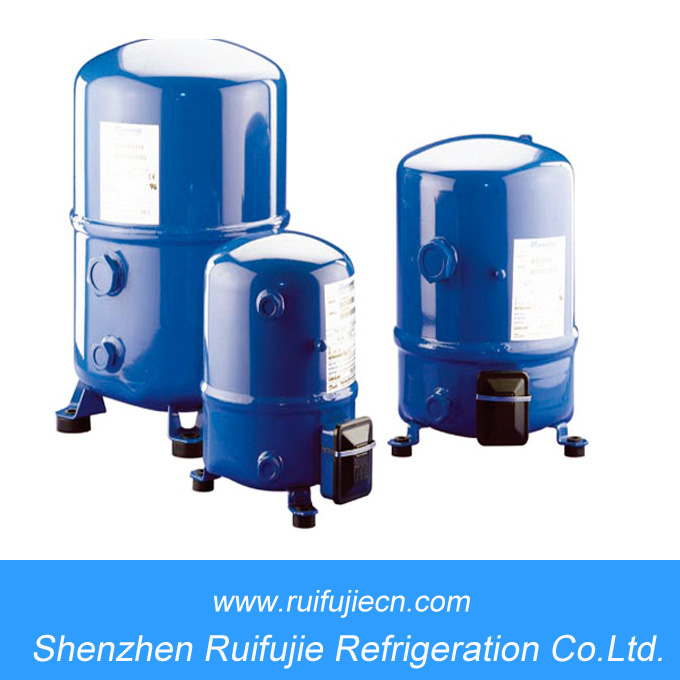

Maneurop (Danfoss) Reciprocating R22/R407 1.8HP Compressor (MTZ22-5VI)
Maneurop(Danfoss) Reciprocating Compressor( MTZ/MT series )
Reciproating Compressor
Refrigerant: R22/R407
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications. There are 26 different models with displacement ranging from 30-543cm3/rev.
| Model NO. | Nom HP | Displ. Cc/rev | Capacity R404a(w) | Electrical | Connections | Net weight(kg) | Height(mm) |
| -10 | -5 | 0 | 5 | phase | RLA | LRA | Suct | Disch |
| MTZ18-4VI | 1.5 | 30.2 | 1580 | 2110 | 2760 | 3540 | 3 | 3.57 | 16 | 1/2 | 3/8 | 22 | 333 |
| MTZ18-5VI | 1.5 | 30.2 | 1580 | 2110 | 2760 | 3540 | 1 | 3.57 | 16 | 1/2 | 3/8 | 22 | 333 |
| MTZ22-4VI | 1.8 | 38.12 | 2270 | 2920 | 3670 | 4540 | 3 | 10.71 | 41 | 5/8 | 3/8 | 23 | 333 |
| MTZ22-5VI | 1.8 | 38.12 | 2270 | 2920 | 3670 | 4540 | 1 | 4.28 | 16 | 5/8 | 3/8 | 23 | 333 |
| MTZ28-4VI | 2.3 | 48.06 | 2880 | 3720 | 3670 | 4540 | 3 | 11.72 | 55 | 5/8 | 3/8 | 24 | 358 |
| MTZ28-5VI | 2.3 | 48.06 | 2880 | 3720 | 3670 | 4540 | 1 | 5.35 | 23 | 5/8 | 3/8 | 24 | 358 |
| MTZ32-4VI | 2.7 | 53.86 | 3230 | 4220 | 3670 | 4540 | 3 | 14.28 | 70 | 5/8 | 1/2 | 25 | 358 |
| MTZ32-5VI | 2.7 | 53.86 | 3230 | 4220 | 3670 | 4540 | 1 | 5.71 | 25 | 5/8 | 1/2 | 25 | 358 |
| MTZ36-4VI | 3 | 60.47 | 3800 | 4870 | 3670 | 4540 | 3 | 14.28 | 70 | 5/8 | 1/2 | 25 | 358 |
| MTZ36-5VI | 3 | 60.47 | 3800 | 4870 | 3670 | 4540 | 1 | 6.43 | 30 | 5/8 | 1/2 | 25 | 358 |
| MTZ40-4VI | 3.3 | 67.89 | 4280 | 5490 | 6900 | 8540 | 3 | 7.14 | 38 | 5/8 | 1/2 | 26 | 358 |
| MTZ45-4VI | 3.8 | 76.22 | 4420 | 5840 | 7570 | 9660 | 3 | 6.78 | 48.5 | 7/8 | 3/4 | 36 | 415 |
| MTZ51-4VI | 4.2 | 85.64 | 5290 | 6920 | 8910 | 11300 | 3 | 8.21 | 48.5 | 7/8 | 3/4 | 37 | 415 |
| MTZ57-4VI | 4.8 | 96.13 | 6060 | 7880 | 10020 | 12520 | 3 | 8.57 | 64 | 7/8 | 3/4 | 37 | 415 |
| MTZ65-4VI | 5.4 | 107.71 | 7080 | 9130 | 11540 | 14340 | 3 | 10 | 64 | 7/8 | 3/4 | 37 | 415 |
| MTZ73-4VI | 6.1 | 120.94 | 7960 | 10230 | 12900 | 16010 | 3 | 12.14 | 80 | 7/8 | 3/4 | 39 | 415 |
| MTZ81-4VI | 6.8 | 135.78 | 9160 | 11720 | 14680 | 18090 | 3 | 13.56 | 80 | 1-1/8 | 3/4 | 42 | 415 |
| MTZ100-4VI | 8.3 | 171.26 | 10390 | 13500 | 17220 | 21620 | 3 | 15.71 | 78 | 1-1/8 | 3/4 | 66 | 520 |
| MTZ125-4VI | 10.4 | 215.44 | 13650 | 17500 | 22060 | 27420 | 3 | 19.28 | 105 | 1-1/8 | 3/4 | 68 | 520 |
| MTZ144-4VI | 12 | 241.87 | 15740 | 20120 | 25310 | 31400 | 3 | 21.42 | 115 | 1-1/8 | 3/4 | 69 | 540 |
| MTZ160-4VI | 13.3 | 271.55 | 17690 | 22520 | 28220 | 34900 | 3 | 25.7 | 130 | 1-1/8 | 3/4 | 69 | 540
|
| Prod Model: |
MTZ22-5VI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Reciprocating |
| Drive Mode: |
Electric |
| Piston Type: |
Closed |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Material: |
Stainless Steel |
| Lubrication Style: |
Lubricated |
| Mute: |
Mute |
| Application: |
Back Pressure Type |
1. Reliable supplier with 10 years experience.
2. Mature technique and professional employee.
3. Authorized certificates like SGS, CE and ISO9001
4. Competitive factory wholesale prices
5.24 hours in service for the customers
6. Safe and fast delivery.
About US:
Our main products are as follows:
1, COPELAND COMPRESSORS, VR, ZR, ZB, ZH SERIES,
2, DANFOSS PERFORMA COMPRESSORS, SM, SZ, SH SERIES,
3, MANEUROPE PISTON COMPRESSORS, MT, MTZ NTZ, MPZ SERIES
4, DANFOSS COMMERCIAL COMPRESSORS, FR, SC SERIES, .
5, DANFOSS AIR CONDITIONAING AND REFRIGERATION PARTS,
TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
ETS SERIES EXPANSION VAVLES,
EVR SERIES ECPANSION VAVLES AND
KP1, KP5, KP15 SERIES PRESSURE CONTROLS
DCL DML LIQUID LINE FILTER DRIERS
With arising market and demand on Chinese original products, we supply only quality and qualified Chinese products with our own Brand or OEM brand on following products:
BALL VAVLES, HAND VAVLES, OIL SEPERATORS, WITH RELIABLE QUALITY.
By standing on ground of Chinese market, we could serve our customers in refrigeration and air conditioning globally. With our best product quality and good service, we can cooperate with our customer to improve their products quality and reduce the cost.
We have sales channels all around the world and products well received by our clients.
We hope to establish close cooperation relationship with our partners and distributors, and develop our business together in this fast growing environment.
You are welcomed to make any enquiry!
