Price: | US $ 9999/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P |
Gongyi Machinery Factory:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you
Disk grain making machine is suitable for conveying materials with particle size not greater than 50mm, but not suitable for materials with bigger viscosity, less mobility and good mobility.

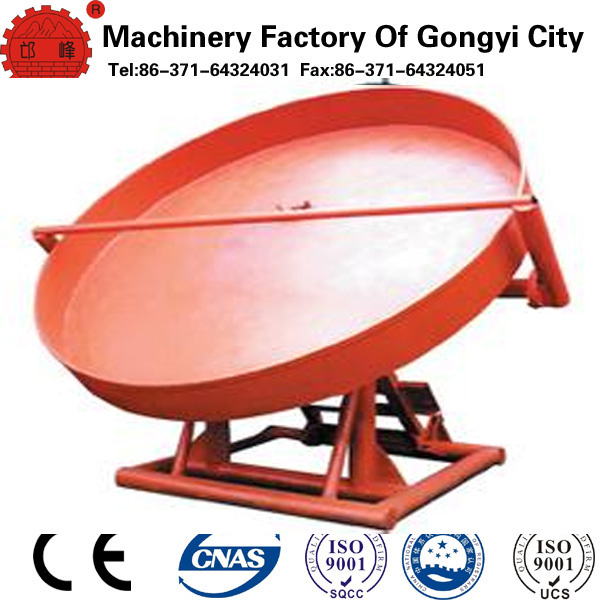

Brief introduction to Disk grain making machine
Disk grain making machine is transformed on the basis of advanced technologies of similar equipment at home and abroad. Disk grain making machine is actually feeding equipment based on volumetric measurement, and it can feed materials uniformly and continuously, and able to take higher warehouse pressure. As a feeding device for fine material, it's suitable for the transportation of a variety of powdery and small non-viscous materials, such as coal, cement, clinker, limestone, clay, shale, coal gangue, powder, granular or small-block materials. Disk grain making machine can be widely used in gold, coal mining and chemical plant, infrastructure and mechanized foundry for feeding materials uniformly and continuously.
Disk grain making machine has features of simple structure, easy adjustment, and superior performance. This machine is suitable for conveying materials with particle size not greater than 50mm, but not suitable for conveying materials with bigger viscosity, less mobility and particularly good mobility.

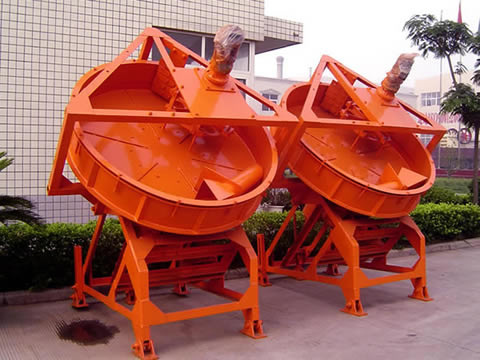

Structure of disk granulator
Disk grain making machine is composed of disk, gear, transmission part, frame, base, blade rack and other components.
Performance characteristics of disk granulator
Disk granulator has the following advantages: high granulation rate, round particle, high strength, easy operation, convenient maintenance and so on.
Model(m) | Rotation speed of disk (r/min) | Capacity (t/h) | Power (kw) | Adjusting range of disk gradient | Dimensions(m) | Weight(kg) |
Φ2.2 | 14.25 | 4-8 | 7.5 | 35-55 | 2.8×2.75×2.58 | 2850 |
Φ2.5 | 11.81 | 5-10 | 7.5 | 35-55 | 3.2×2.3×3 | 3250 |
Φ2.8 | 1.21 | 12-16 | 7.5 | 35-55 | 3.4×2.6×3.1 | 3710 |
Φ3.0 | 11.3 | 15-18 | 11 | 35-55 | 3.7×2.7×3.3 | 4350 |
Φ3.2 | 9.6 | 15-20 | 11 | 35-55 | 3.9×2.7×3.4 | 5110 |
Φ3.6 | 9.1 | 18-24 | 15 | 35-55 | 4.3×3.1×4.0 | 6510 |
Prod Model: | 2.2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mining Equipment: | Disk Granulator |
Object: | Fertilizer |
Condition: | New |
