Product Specifications
| Prod Model: |
YTB-56B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Manual |
| Type For Fold-bending Machine: |
Manual Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
Product Description
Information:
Die Making Machine

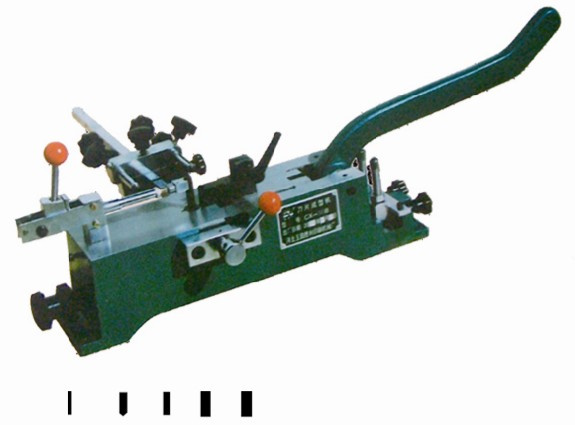

YTB-56B Rule bender
This machine is built-for-purpose machine for high blade die-cutting ruler.
It can dent die-cutting ruler from 30mm to 56mm. Equipped with special prupose-made mold, it's operation of modelling of die-cutting ruler is brief and save force
Bending Shape:
YTP-9 Punching machine
This machine is suitable for punching hole at the join point of die-cutting ruler and creasing rounded edge.
The width of punching hole is 9mm
The depth of punching hole is adjustable from 0mm to 25mm
Movement is rational, and rounded edge will not deform after punching
Punching Shape:
YTC-56B Rule cutter
This machine is suitable for severing process of die cutting ruler
Two sides have lay gauge to adjust, and the length is optional
Operation is forcesaving, and section is straight and smooth
The maxmium width of cut is 56mm
YTLC-40 Dubble lip cutter
This machine is combination machine for cut and corner cut at the same time
It can finish the change of corner cut and truncated by changing lock bar
YTB-25M Precision bender
This machine is used to bent mode die cutting rule, during the course of making die cutting plate.
It's structure is novel and rationaland usage is convenient, and the precision of modelling die cutting ruler is high.
Equipped with 40 negative matrix and positive matrix, it can bent steel edge to optional complex shape.
YTC-25M Precision cutter
This machine can finish the change of cut and corner cut conveniently by changing laygauge
Wolfram steel is adopted in cutting tool, and the surface is hardened which ensure the endurence of tool blade
The maxmium height of cutting tool blade is 32mm. If user requir cut and cut corner 40mm or 50mm high blade.
Cutting Shape:
YTP-9 Punching machine
This machine is suitable for punching hole at the join point of die-cutting ruler and creasing rounded edge.
The width of punching hole is 9mm
The depth of punching hole is adjustable from 0mm to 25mm
Movement is rational, and rounded edge will not deform after punching
Yitai Packing-Materi Accessories(Kunshan)Co., Ltd. was established in 2003. We belong to Grandcorp precision mould group, but professional of die-making materials and package machines.
Our main business scope is as below: Flat & rotary die board, cutting rules, creasing rules, creasing matrix, doctor blade, manual die making machine, auto-bender machine, sample making machine, nick grinder, trash-cleaning machine and so on. Specialty and first class service make us attract the customers from domestic and overseas.
Our products are well sold to South Africa\ Australia\ Brazil India We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
