Jiangsu Hoston Machine Tools Co., Ltd. >> Manual High Precision Surface Grinding Machine

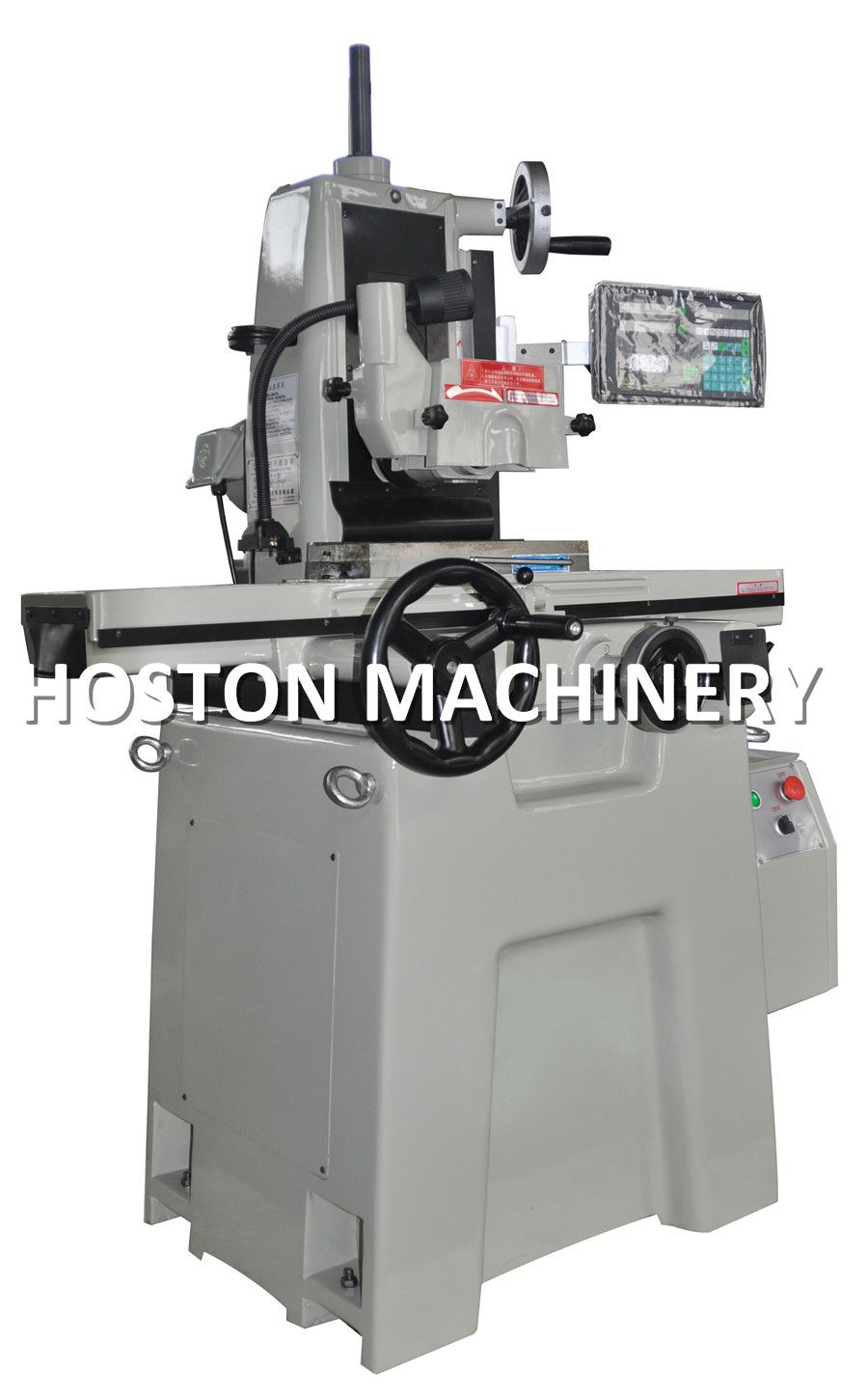

Manual High Precision Surface Grinding Machine

Name: Manual High Precision Surface Grinding Machine
Brand: china-manufacturer-directory.com
SKU: 740166135
Availability: InStock
Rating: 4.4 (82 reviews)

Supplier:	Jiangsu Hoston Machine Tools Co., Ltd.
Price:	US $ 1000-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KGS618
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Table Size (L*W):	460*150
Max. Grinding Length:	480
Max. Grinding Width:	170
Max Loading Weight On Table:	150kg
Number Of T -Slot:	14*1
Wheel Size (DiaWidthBore):	180(3-13)31.75
Spindle Motor:	1.5
Surface Roughness:	Ra0.63
Paraller Level:	300:0.002
Automatic Grade:	Manual
Precision:	High Precision
Type:	Surface Grinding Machine
Controlling Mode:	Artificial

Product Description

Manual High Precision Surface Grinding Machine

Features:
Roller ball on linear table ways for easy and smooth longitudinal movements
Ultra-high super rigid H-frame column with 21" spindle center to table for more clearance under the wheel than any other machine in its class
Flange-mount 3.35" diameter spindle cartridge design provides unmatched heavy grinding with superior side-grinding rigidity
Large metal hand wheels on all axis for long lasting dependability and easy operation
Over 2400 pound net weight, almost twice as massive as our competition
Centralized one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power

Main Parameters:

Technical Parameters		Unit	KGS-618
Table Size (L×W)		mm	460×150
Max. Grinding Length		mm	480
Max. Grinding width		mm	170
Distance From Table Surface To Spindle Center		mm	410
Slide way			A V-type and a flat-type rail with Steel-ball
Max loading weight on Table		Kg	150
Number of T -Slot		mm×n	14×1
Table speed		m/min
The speed for rapid up-down grinding head		mm/min	2850/3600
Cross Feed On Handwheel		mm	0.02/Graduation 5/revolution
Vertical Feed On Handwheel		mm	0.001/Graduation 1/revolution
Wheel Size (dia×width×bore)		mm	180×(3-13)×31.75
Spindle Speeds	50HZ	rpm	2850
Spindle Motor		kw	1.5
Surface Roughness		μm	Ra0.63
Paraller Level		mm	300:0.002
Machine Size (L×W×H)		mm	1300×1150×1980
Cross\Net		T	0.9\1.0
